SB130PEDB0 04 – OVEN DOOR

SB130PEDB0 04 – OVEN DOOR

Written by

in

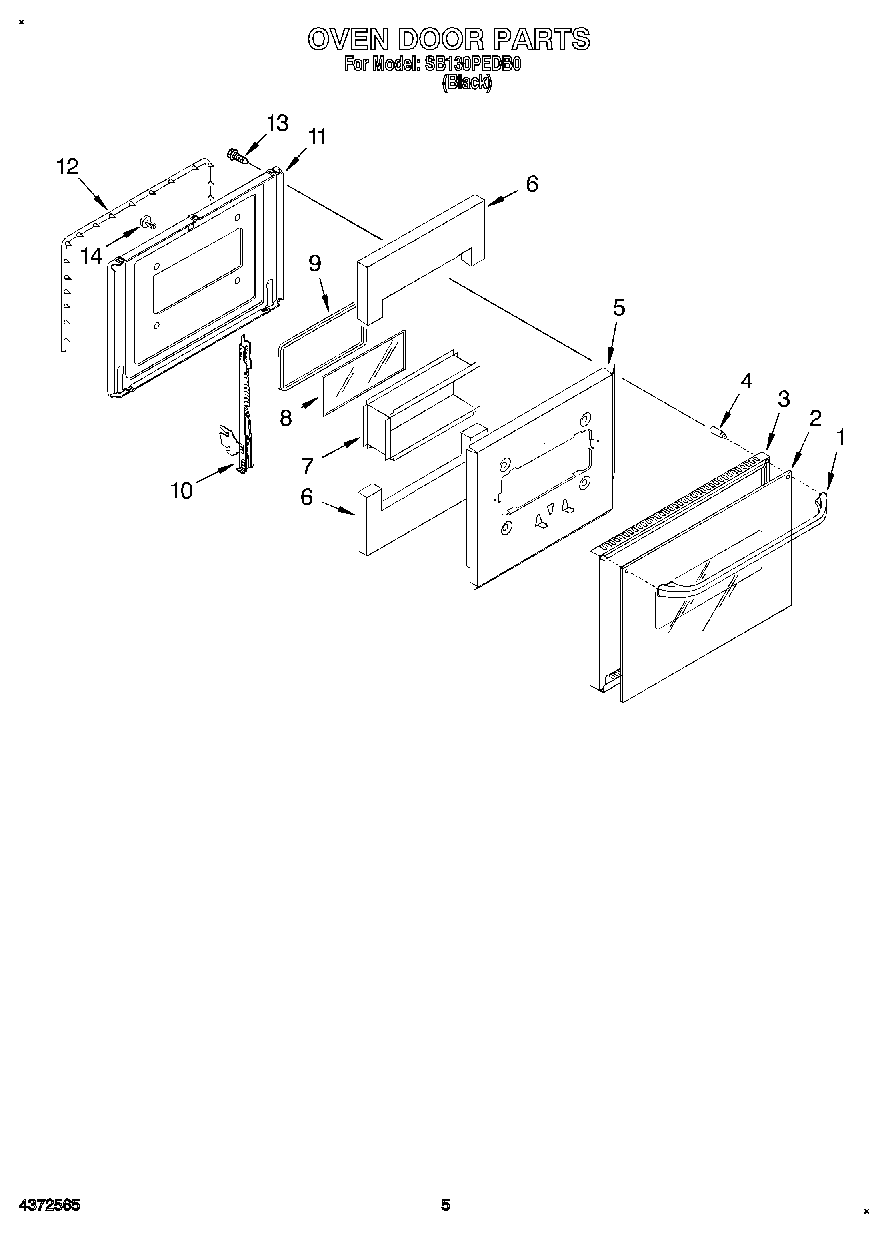

SB130PEDB0 04 – OVEN DOOR

Products

Position	Product
1	Handle, Oven Door
2	Glass, Outer Door
3	Frame, Door
4	Spacer, Handle
5	Panel, Airwash
6	Insulation, Door
7	Retainer, Glass
8	Glass, Inner
9	Seal, Window
10	Hinge, Door
11	Liner, Door
12	Seal, Door
13	Screw, Handle (4)
14	Button, Plug
