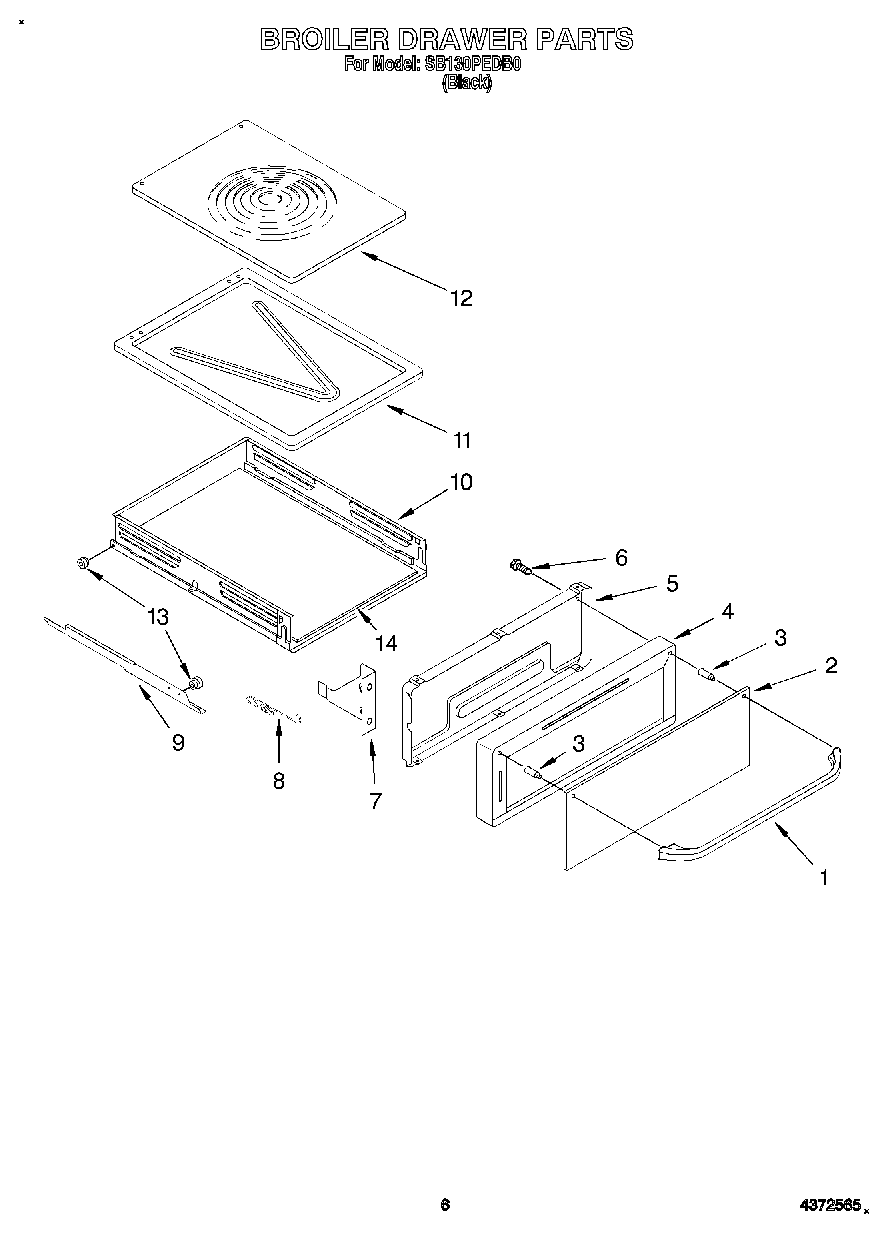

SB130PEDB0 05 – BROILER DRAWER, LITERATURE

SB130PEDB0 05 – BROILER DRAWER, LITERATURE

Written by

in

SB130PEDB0 05 – BROILER DRAWER, LITERATURE

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
1	Handle, Oven Door
2	Glass, Drawer
3	Spacer, Handle
4	Frame, Trim
5	Liner, Drawer
6	Screw, Handle (4)
7	Hinge, Broiler (Left Hand)
7	Hinge, Broiler (Right Hand)
8	Spring, Broiler
9	Track, Drawer (Left Hand)
9	Track, Drawer (Right Hand)
10	Drawer, Broiler
11	Pan, Broiler
12	Insert, Broiler Pan
13	Roller
14	Panel, Drawer Btm.
