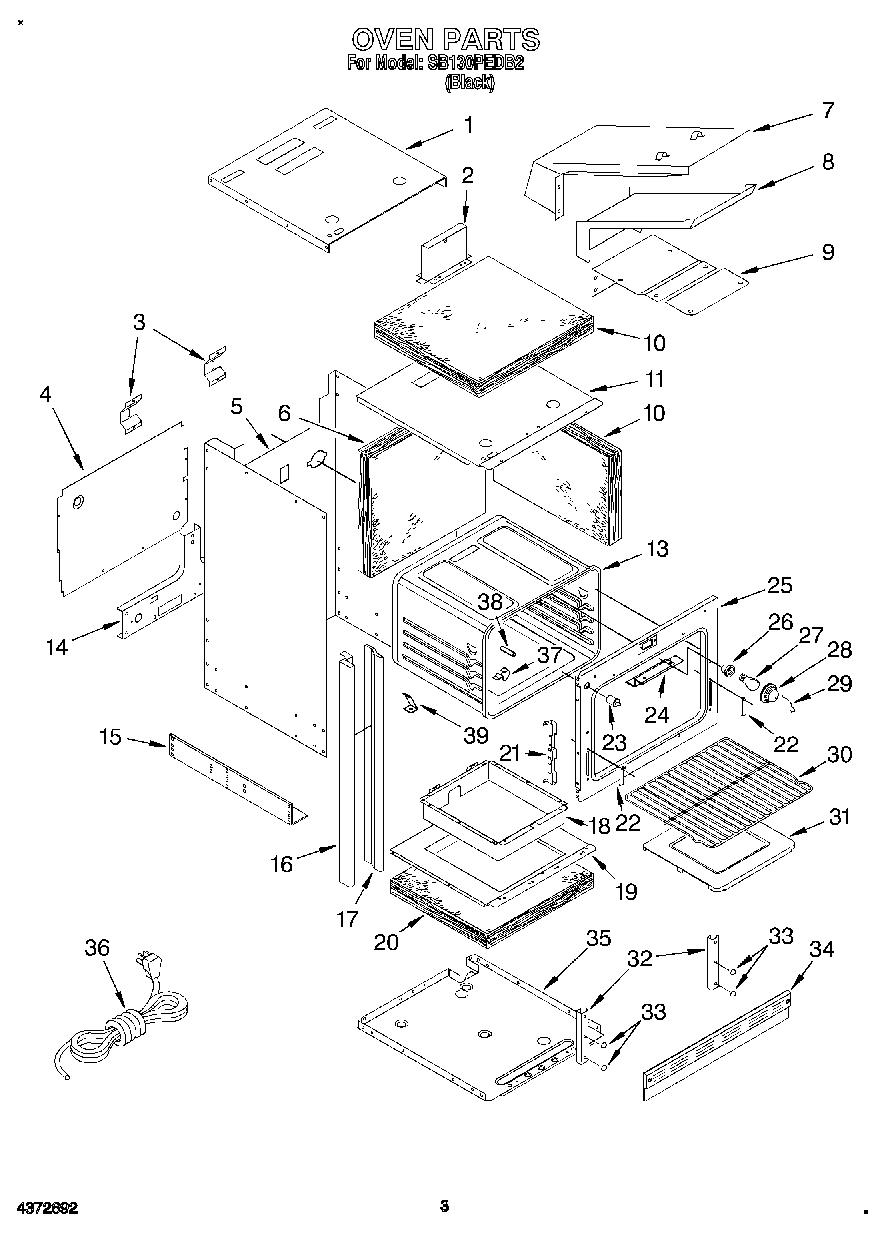

SB130PEDB2 03 – OVENadmin2025-04-26T11:19:34+00:00SB130PEDB2 03 – OVEN ProductsPositionProduct1Top, Wrapper2Adaptor, Flue3Spring, Oven4Cover, Wire5Wrapper, Cabinet6Insulation, Back7Shield, Flue Top8Flue9Shield, Flue Bottom10Insulation, Top & Sides11Shield, Insulation13Liner, Oven14Bracket, Safety Valve15Support, Side16Trim, Outer17Trim, Inner (Right Hand)17Trim, Inner (Left Hand)18Box, Oven Burner19Shield, Base20Insulation, Bottom21Channel, Hinge22Retainer, Door23Switch, Door24Shield, Vent25Frame, Front26Socket, Lamp27RANGE ONLY 40W 120V APPL BULB28Lens, Light29Retainer, Lens30Rack, Oven (2)31Bottom, Oven32Support, Front (2)33Spacer, Rubber34Trim, Bottom35Base, Wrapper36Cord, Power37Clip, Thermo Bulb38Cover, Thermo Bulb39Spacer, Oven (2)
