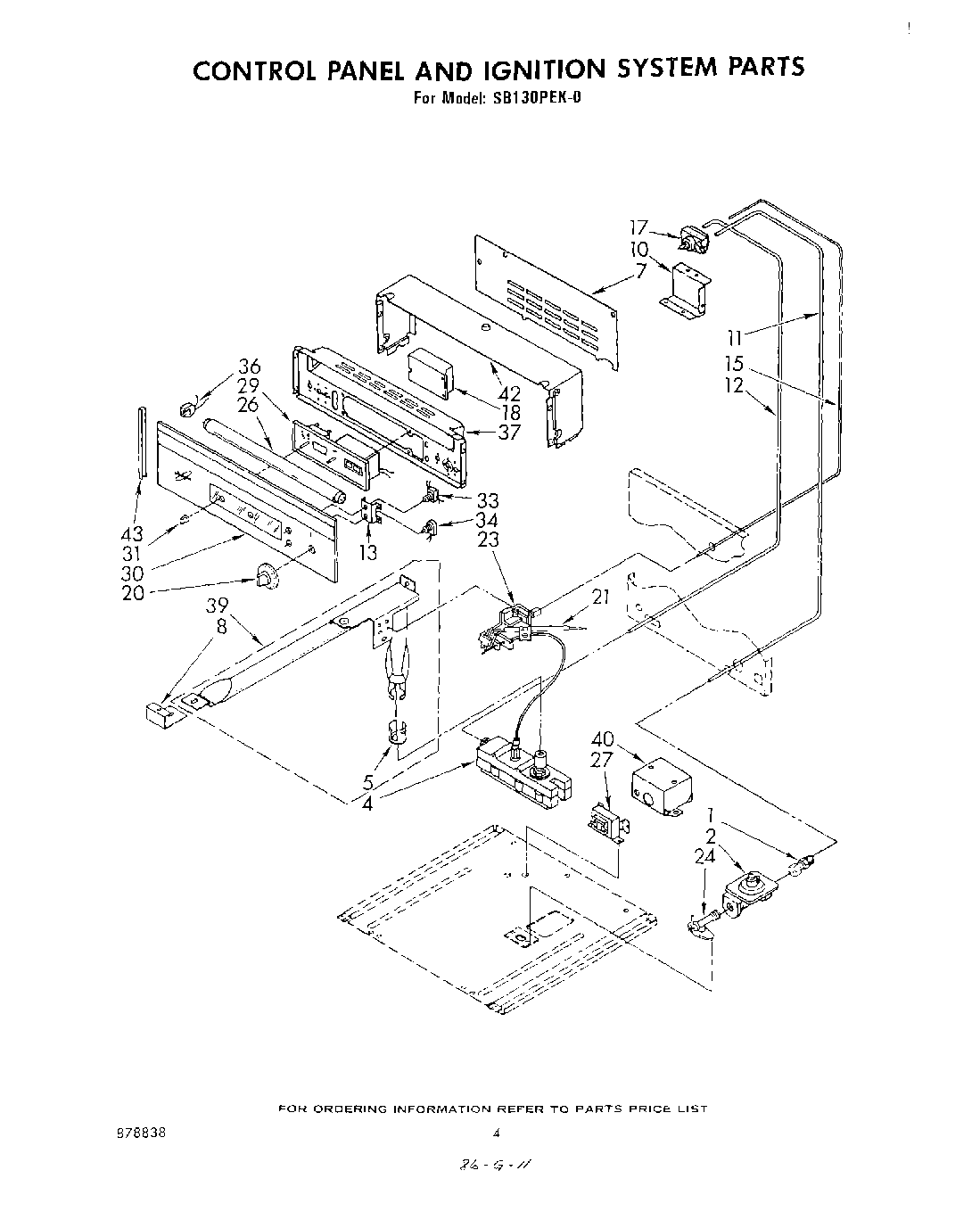

SB130PEK0 03 – SECTION

Products

Position	Product
1	Fitting Flange 1/2 x 3/8
2	Regulator, Pressure
4	Valve, Oven Lighter Safety
5	Shutter, Oven Burner Air
7	Back, Control Box
8	Support, Oven Burner (Front)
10	Support, Oven Control
11	Tubing, Regulator/ Oven Control
12	Tubing, Oven Control/Safety Valve
13	Bracket Switch Mounting
15	Tubing, Control Pilot
17	Control, Oven
18	Control, Ignitor
20	Dial, Oven Control
21	Ignitor, Oven Burner
23	Lighter, Oven Burner
24	Valve, Cut Off
26	Bulb, Fluorescent Light
27	Ballast, Fluorescent Light
29	Clock, Automatic
30	Glass, Control Panel
31	Knob, Clock (2)
33	Switch, Oven Light
34	Switch, Fluorescent Light
36	Socket, Fluorescent Light (Right Side)
36	Socket, Fluorescent Light (Left Side)
37	Support Clock
39	Burner, Oven
40	Support, Ballast
42	Box, Control
43	Trim, Backguard Glass (2)
