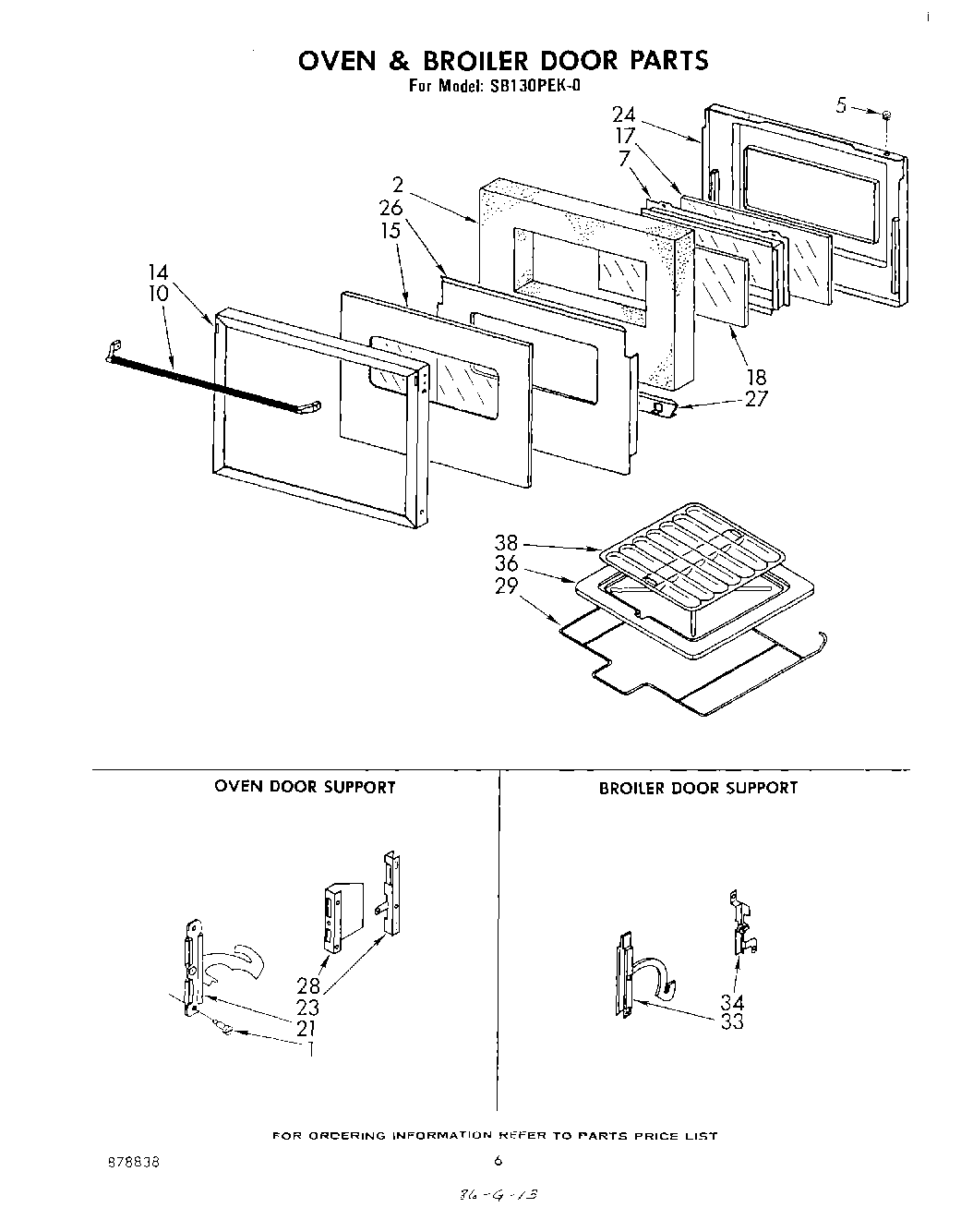

SB130PEK0 04 – SECTION

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16 (2)
2	WPW10208653 Whirlpool Insulation
5	98460 Whirlpool Nut
7	Frame, Window
10	Handle Door (Oven)
14	Frame, Door
15	Glass, Oven Door Outside
17	Glass, Oven Door Inside
18	Glass, Oven Door Center
21	Hinge, Oven Door (2)
23	Support, Oven Door (Right Side)
23	Support, Oven Door (Left Side)
24	Lining, Oven Door (Upper Oven)
24	Lining, Oven Door
26	Baffle, Door
27	Retainer, Insulation
28	Brace Hinge Support (Left Side)
28	Brace Hinge Support (Right Side)
29	Rack, Broiler Pan
33	Hinge, Broiler Door (2)
34	Support, Broiler Door (Right Side)
34	Support, Broiler Door (Left Side)
36	Pan, Broiler
38	Tray, Broiler Pan
