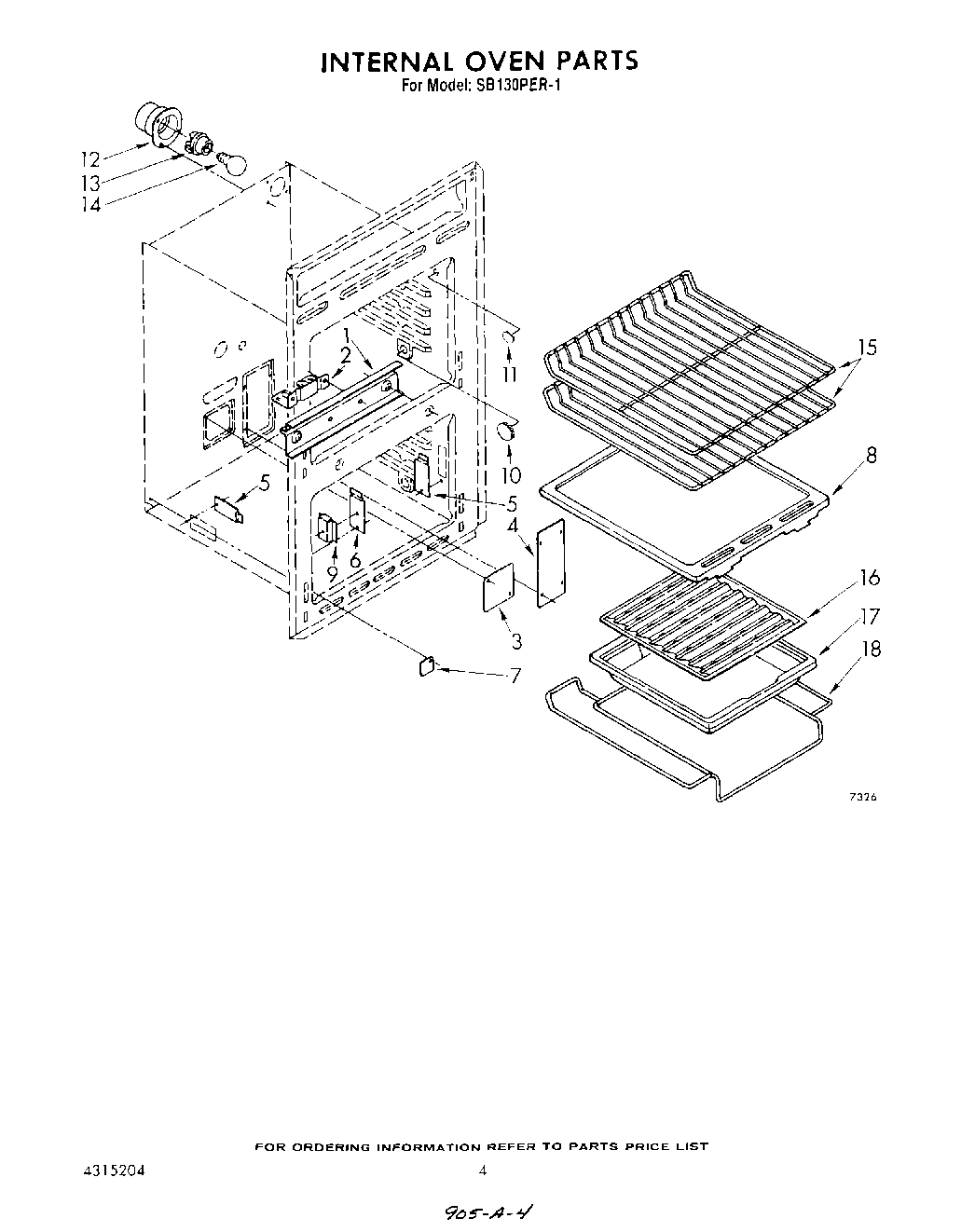

SB130PER1 03 – INTERNAL OVEN

Products

Position	Product
1	W10080180 Whirlpool Nut
1	Screw, 10-24 X 3/8 (2)
1	Support, Channel
2	Support, Burner
3	Plate, Cover
4	Plate, Cover
4	WP308685 Whirlpool Microwave Screw
5	Cover, Spring (3)
6	WP681249 Whirlpool Screw Assembly
6	Cover, Spring (1)
6	Screw, 8-18 X 3/8 (4)
7	Cover, Oven Back
8	Bottom, Oven
9	Orfice
9	Box, Orfice
10	Plug, Button (4)
11	Plug, Button (1)
12	Housing, Light
13	Socket, Light
14	RANGE ONLY 40W 120V APPL BULB
15	Rack, Oven
16	Grid, Broiler
17	Pan, Broiler
18	Rack, Broiler
