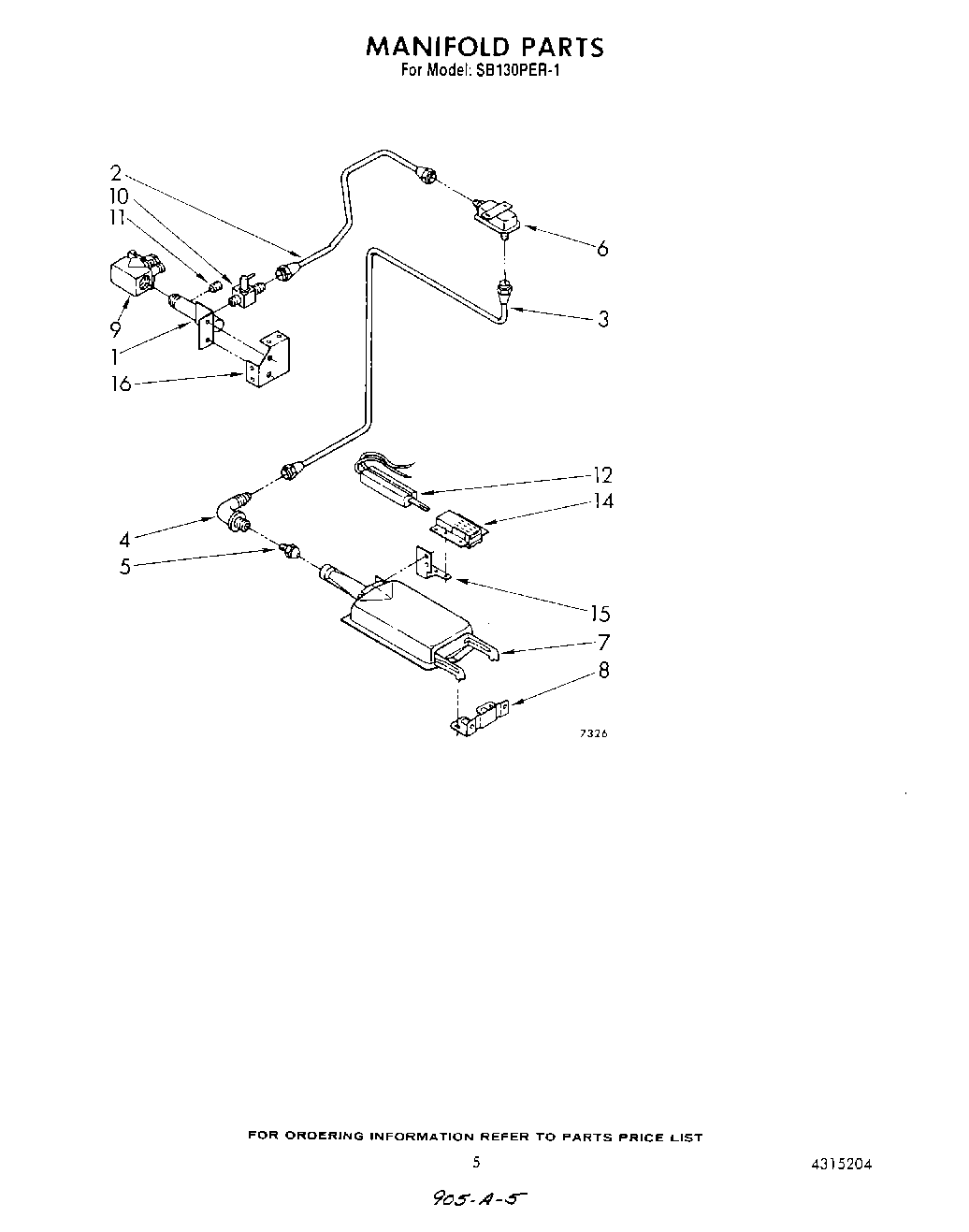

| 1 | Screw, 10-24 X 3/8 (2) |
| 1 | Inlet Pipe |
| 2 | Tubing 3/8`` (Inlet To Gas Valve) |
| 3 | Tubing 3/8`` (Gas Valve To Orfice Fitting) |
| 4 | Fitting, Orfice |
| 5 | Orfice (No.48 Nat. Gas) |
| 5 | Orfice |
| 6 | Screw, 6-20 X 1/4 (1) |
| 6 | Valve, Electric |
| 7 | Ultra-Ray Burner |
| 8 | Support, Burner |
| 9 | Regulator, Pressure |
| 10 | Valve, Shut Off |
| 11 | Plug, Pipe |
| 12 | 786324 Whirlpool Flat Igniter |
| 14 | Shield |
| 15 | Nut, 6-32 (4) |
| 15 | WP486754 Whirlpool Compactor Screw |
| 15 | Bracket |
| 16 | WP308685 Whirlpool Microwave Screw |
| 16 | Support, Inlet |
