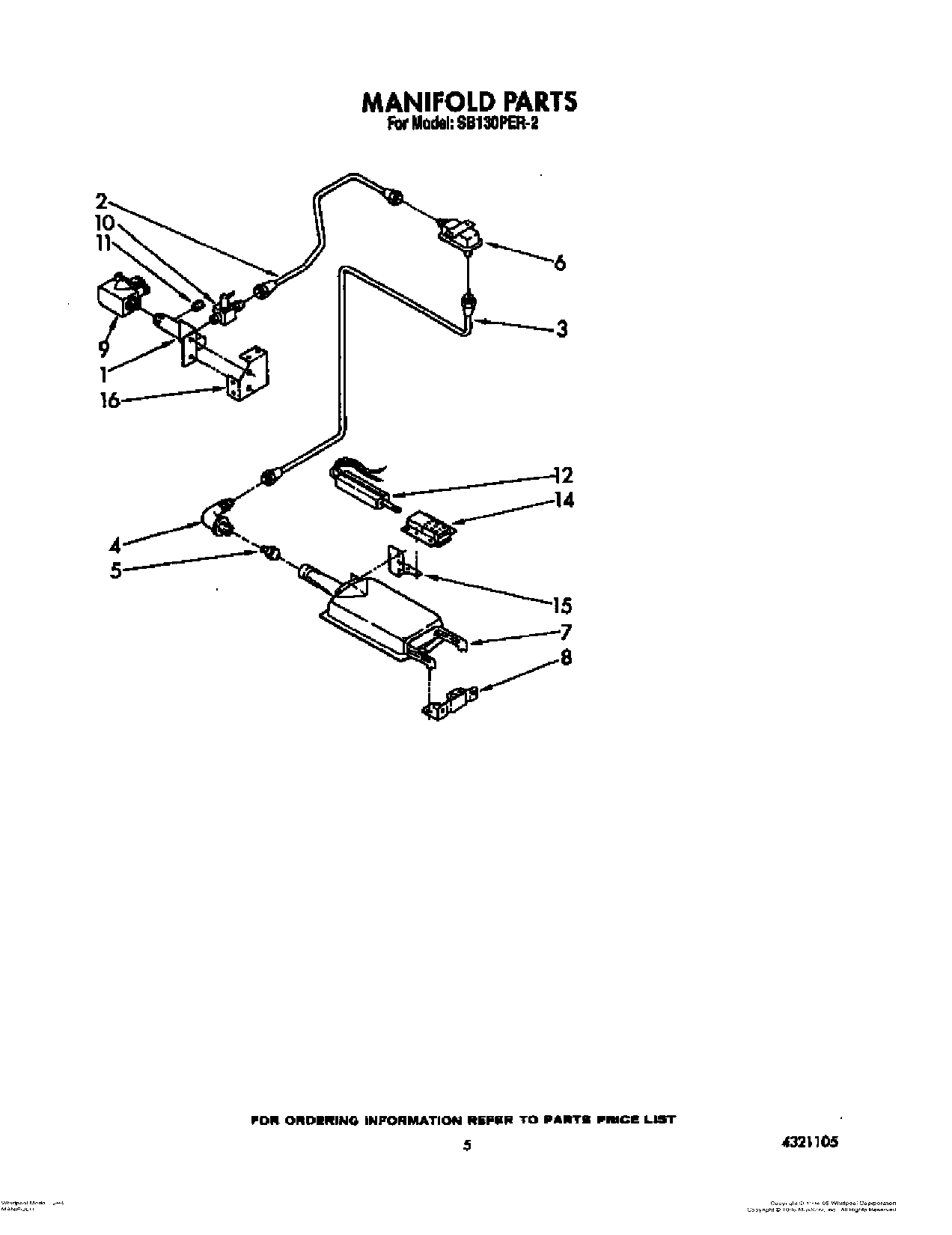

SB130PER2 04 – MANIFOLD

Products

Position	Product
1	Screw, 10-24 X 3/8 (2)
1	Inlet Pipe
2	Tubing 3/8“ (Inlet To Gas Valve)
3	Tubing 3/8“ (Gas Valve To Orfice Fitting)
4	Fitting, Orfice
5	Orfice (No.48 Nat. Gas)
5	Orfice
6	Screw, 6-20 X 1/4 (1)
6	Valve, Electric
7	Ultra-Ray Burner
8	Support, Burner
9	Regulator, Pressure
10	Valve, Shut Off
11	Plug, Pipe
12	786324 Whirlpool Flat Igniter
14	Shield
15	Nut, 6-32 (4)
15	WP486754 Whirlpool Compactor Screw
15	Bracket
16	WP308685 Whirlpool Microwave Screw
16	Support, Inlet
