SB130PER2 05 – OVEN DOOR AND BROILER, LIT/OPTIONAL

SB130PER2 05 – OVEN DOOR AND BROILER, LIT/OPTIONAL

Written by

in

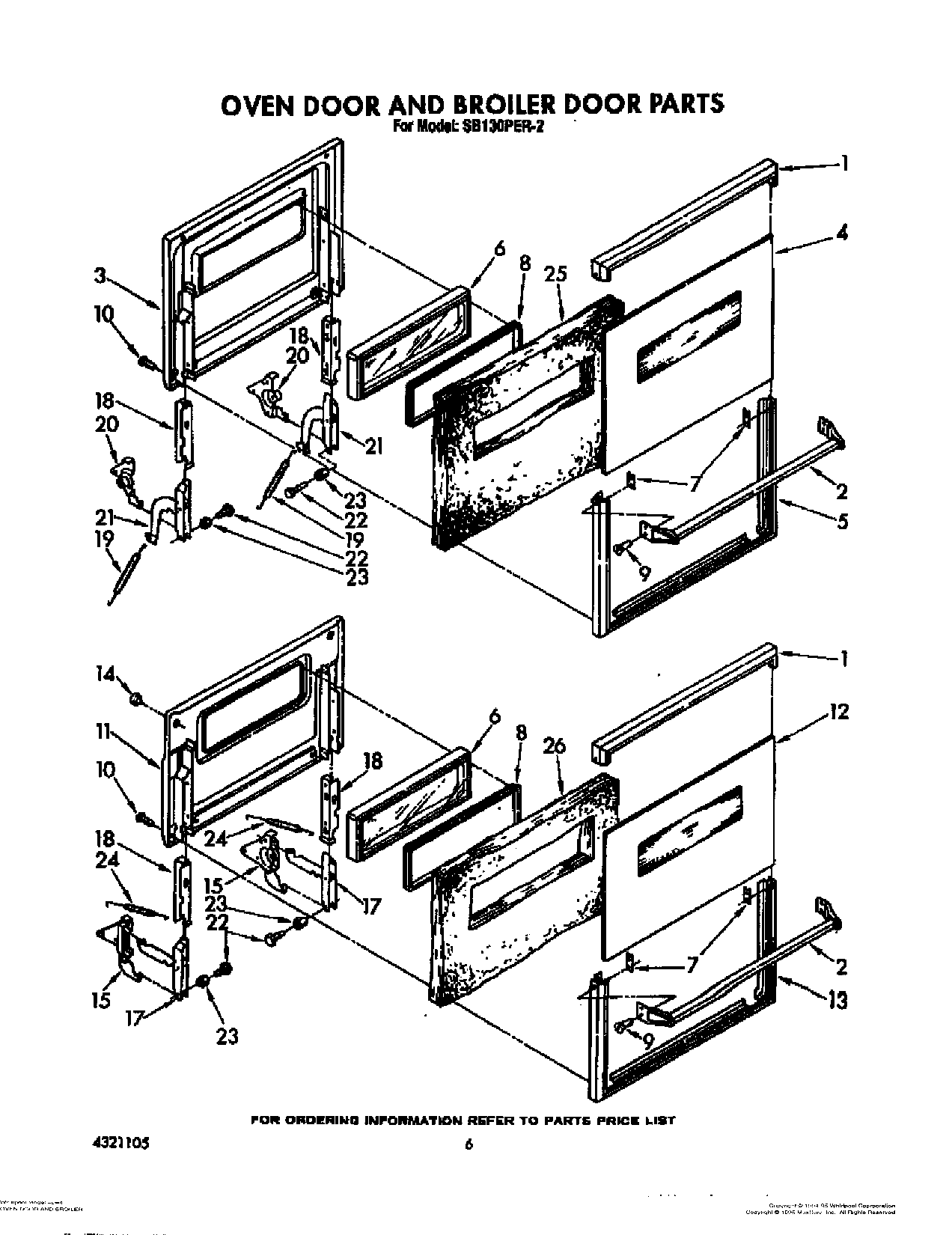

SB130PER2 05 – OVEN DOOR AND BROILER, LIT/OPTIONAL

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
Guide, Cooking
List, Repair Parts
1Frame, Top
2Handle
3Liner, Oven Door
4Glass, Outer (Oven)
5Frame, Bottom (Oven)
6Window Package
7Plate (2)
8Gasket
9Screw (4)
10WP308685 Whirlpool Microwave Screw
11Liner, Broiler Door
12Glass, outer (Broiler)
13Frame, Bottom (Broiler)
14Bumper (2)
15Hinge (Right Hand)
15Hinge (Left Hand)
15Screw, 10-24 X 3/8 (2)
17Arm, Hinge (Right Hand)
17Arm, Hinge (Left Hand)
18Screw, 10-24 X 1/4 (1)
18Socket, Hinge (Left Hand)
18Socket, Hinge (Right Hand)
19Spring, Oven Door (2)
20Hinge, Fixed (Right Hand)
20Hinge, Fixed (Left Hand)
21Channel (Right Hand)
21Channel (Left Hand)
22Screw (2)
23Spacer (2)
24Spring (2)
25Insulation
26Insulation
26FOIL, ALUMINUM OVEN (18“ X 25 )
26WPW10208653 Whirlpool Insulation
