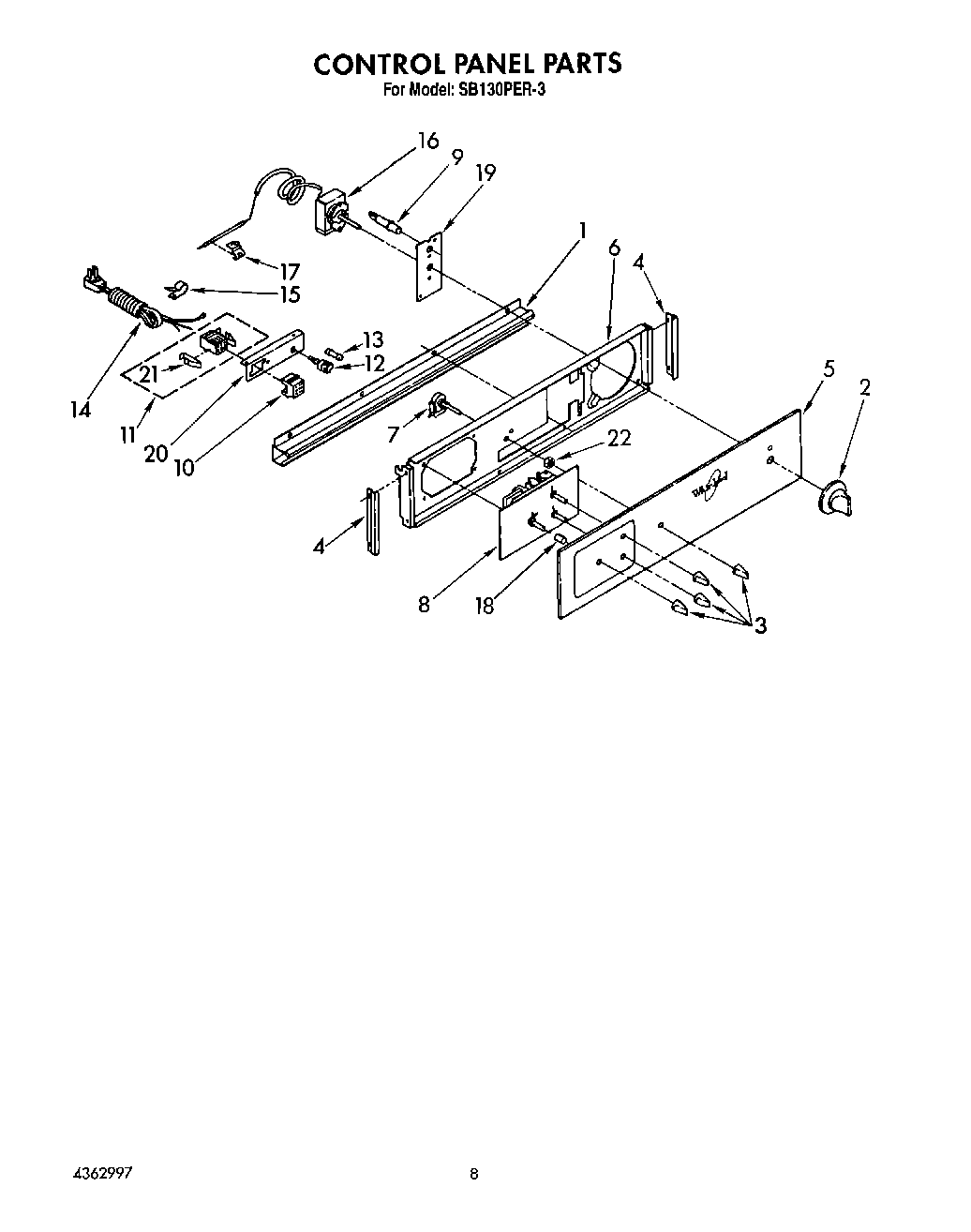

SB130PER3 06 – CONTROL PANEL

Products

Position	Product
1	Trim
2	Knob, Thermostat
3	Knob, Clock
4	Channel, Glass (2)
5	Glass, Control Panel
6	Bracket
7	Switch, Light
8	Nut, 6-32 (4)
8	Timer
9	Indicator Light
10	Block, Disconnect
11	Block, Disconnect
12	Holder, Fuse
13	Fuse, 5 AMP
14	Cord, Power
15	WP308685 Whirlpool Microwave Screw
15	Clamp
16	Thermostat
17	Clip, Thermo Bulb (2)
18	Bushing, Clock
19	Screw, 8-18 X 3/8 (4)
19	Bracket, Thermostat
20	WP693304 Whirlpool Screw
20	Screw, 6-20 X 1/4 (1)
20	Bracket, Fuse
21	Clip (2)
22	Bushing
