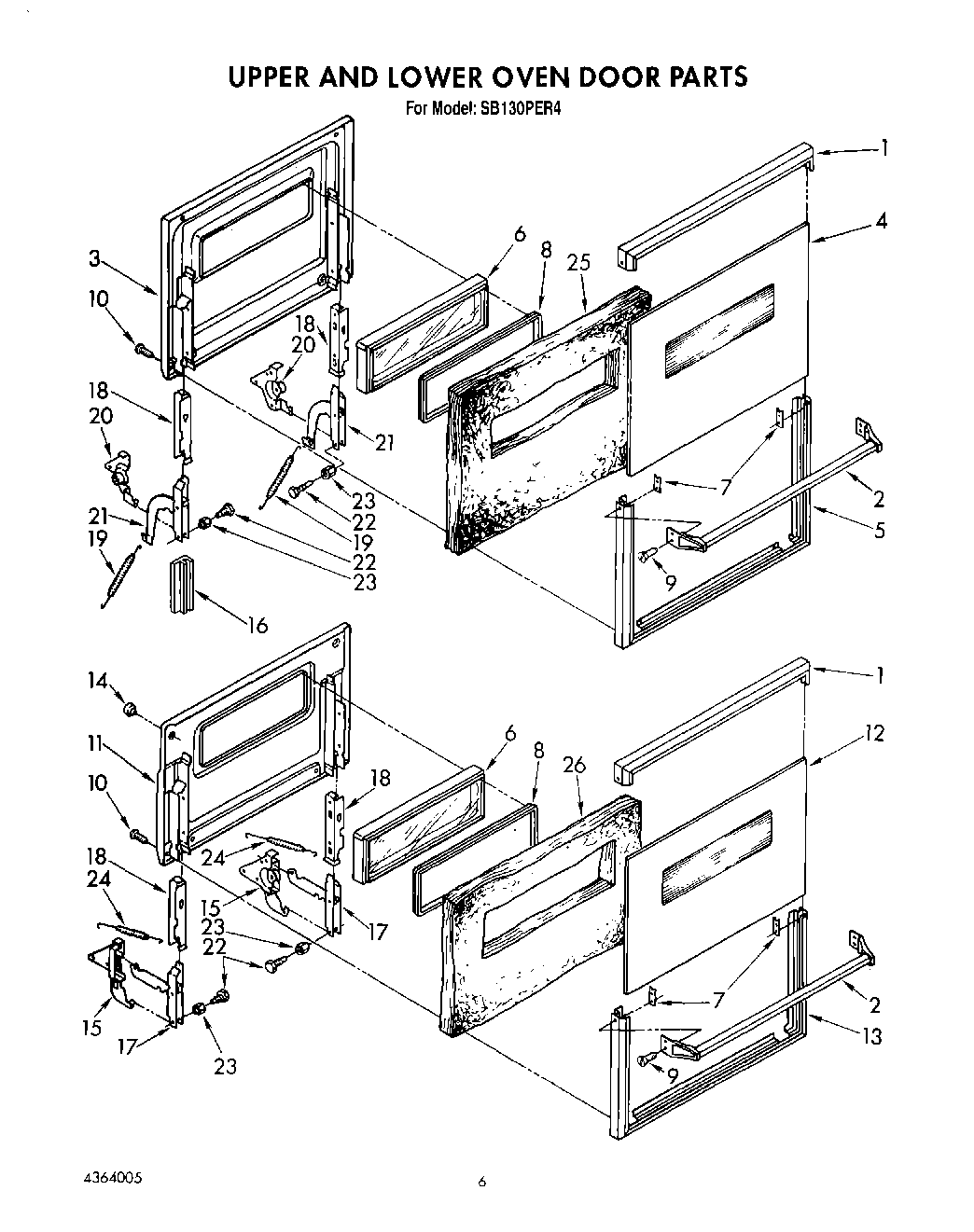

SB130PER4 04 – UPPER AND LOWER OVEN DOOR, LIT\OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	Guide, Cooking
1	Frame, Top
2	Handle
3	Liner, Oven Door
4	Glass, Outer (Oven)
5	Frame, Bottom (Oven)
6	Window Package
7	Plate (2)
8	Gasket
9	Screw (4)
10	WP308685 Whirlpool Microwave Screw
11	Liner, Broiler Door
12	Glass, outer (Broiler)
13	Frame, Bottom (Broiler)
14	Bumper (2)
15	Screw, 10-24 X 3/8 (2)
15	Hinge (Left Hand)
15	Hinge (Right Hand)
16	Glide, Hinge (4)
17	Arm, Hinge (Left Hand)
17	Arm, Hinge (Right Hand)
18	Socket, Hinge (Right Hand)
18	Socket, Hinge (Left Hand)
18	Screw, 10-24 X 1/4 (1)
19	Spring, Oven Door (2)
20	Hinge, Fixed (Right Hand)
20	Hinge, Fixed (Left Hand)
21	Channel (Left Hand)
21	Channel (Right Hand)
22	Screw (2)
23	Spacer (2)
24	Spring (2)
25	Insulation
26	Insulation
26	FOIL, ALUMINUM OVEN (18“ X 25 )
26	WPW10208653 Whirlpool Insulation
