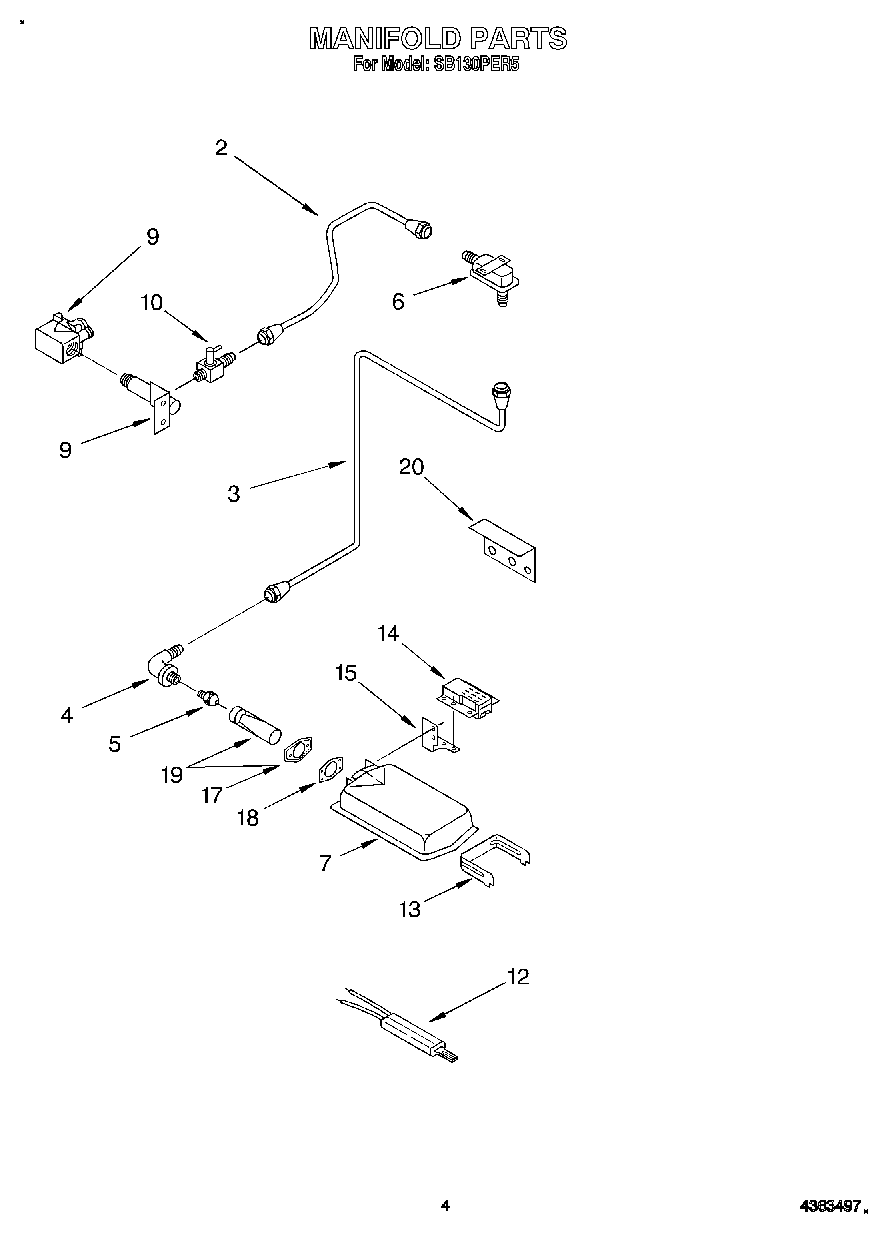

| 1 | Screw, 10-24 X 3/8 (2) |
| 1 | Inlet Pipe |
| 2 | Tubing 3/8`` (inlet To Gas Valve) |
| 3 | Tubing 3/8`` (Gas Valve To Orfice Fitting) |
| 4 | Fitting, Orfice |
| 5 | Orifice (No.50 Nat. Gas) |
| 5 | Orfice |
| 6 | Valve, Electric |
| 7 | Ultra-Ray Burner |
| 9 | Regulator, Pressure |
| 10 | Valve, Shut Off |
| 12 | 786324 Whirlpool Flat Igniter |
| 13 | Support |
| 14 | Shield |
| 15 | Nut, 6-32 (6) |
| 15 | Screw |
| 15 | Bracket |
| 15 | WP486754 Whirlpool Compactor Screw |
| 17 | Flange, Mounting |
| 18 | Gasket, Venturi |
| 19 | Tube, Venturi |
| 20 | Bracket, Ignition |
| 20 | WPW10068250 Whirlpool Dishwasher Screw |
