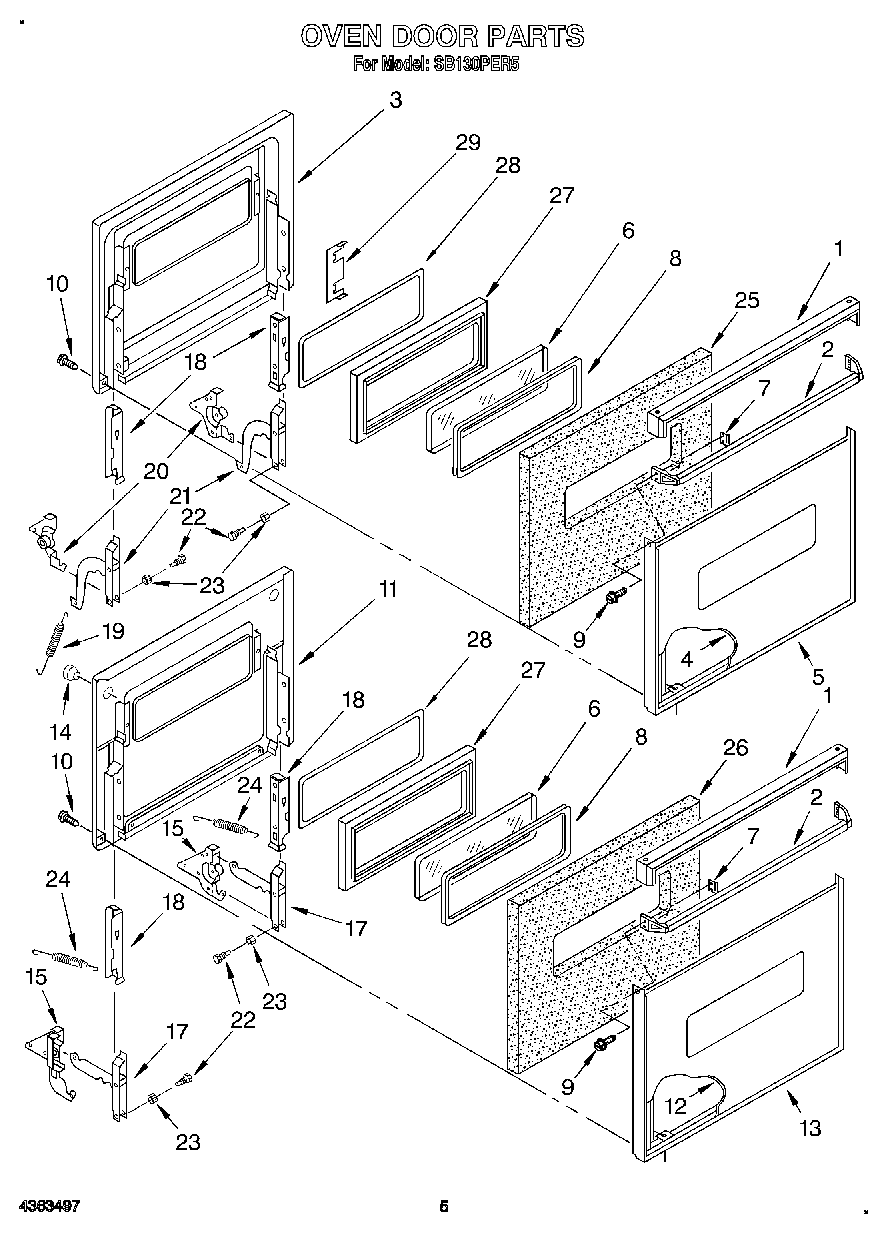

SB130PER5 04 – OVEN DOOR, LIT/OPTIONAL

Products

Position	Product
	Diagram, Wiring
	Instructions, Installation
	Guide, Use & Care
	Guide, Cooking
1	Frame, Top
2	Handle
3	Liner, Oven Door
4	Glass, Outer (Oven)
5	Frame, Bottom (Oven)
6	Window
7	Plate (2)
8	Gasket
9	Screw (4)
11	WP308685 Whirlpool Microwave Screw
11	Liner, Broiler Door
12	Glass, Outer (Broiler)
13	Frame, Bottom (Broiler)
14	Bumper (2)
15	Hinge (Left Hand)
15	Hinge (Right Hand)
15	Screw, 10-24 X 3/8 (2)
16	Glide, Hinge (4)
17	Arm, Hinge
18	Socket, Hinge (Left Hand)
18	Socket, Hinge (Right Hand)
18	Screw No.8 x 1/2
19	Spring, Oven Door (2)
20	Hinge, Fixed (Right Hand)
20	Hinge, Fixed (Left Hand)
21	Channel (Right Hand)
21	Channel (Left Hand)
22	Screw (2)
23	Spacer (2)
24	Spring (2)
25	Insulation
26	Insulation
27	Spacer, Window
28	Trim, Window “J“
29	FOIL, ALUMINUM OVEN (18“ X 25 )
29	WPW10208653 Whirlpool Insulation
29	Bracket, Glass Support
