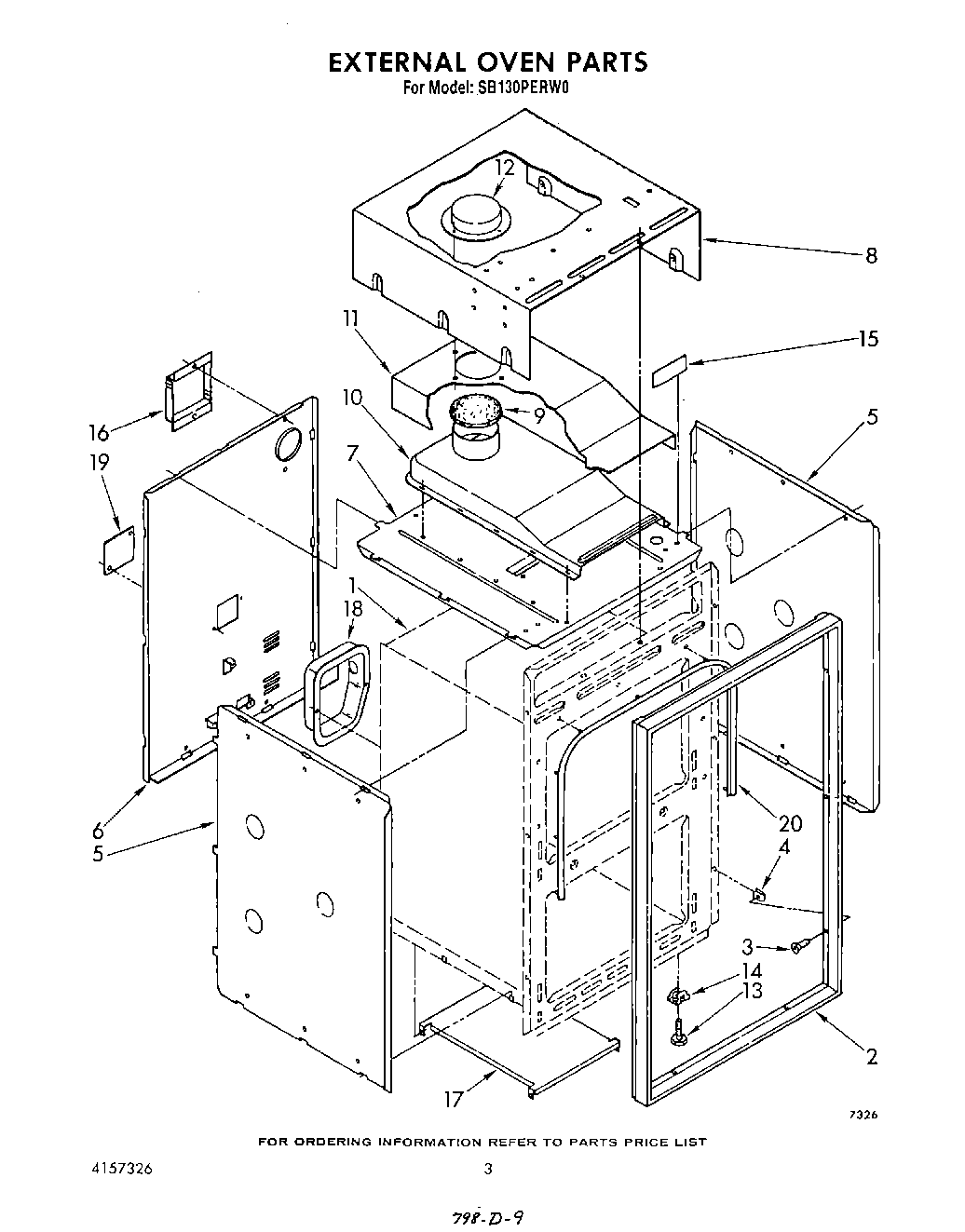

SB130PERW0 03 – EXTERNAL OVEN

Products

Position	Product
1	Chassis (Not Serviceable)
2	Trim, Chassis
3	Screw (10)
4	WP98234 Whirlpool Nut
5	Panel, Side (2)
6	Panel, Rear
7	Retainer, Insulation
8	Screw, 6-18 X 3/8 (6)
8	Panel, Top
9	Cover, Flue
10	Screw, 6-20 X 1/4 (1)
10	Flueway
11	Cover, Flueway
12	Cap, Flue
13	Leg, Leveling (4)
14	Nut (4)
15	Shield, Wire (2)
16	Cover, Light
16	WP308685 Whirlpool Microwave Screw
17	Shield, Heat
18	Cover, Orfice
19	Plate, Cover
20	Gasket, Oven Door
