SB130PERW0 04 – INTERNAL OVEN
Written by
in

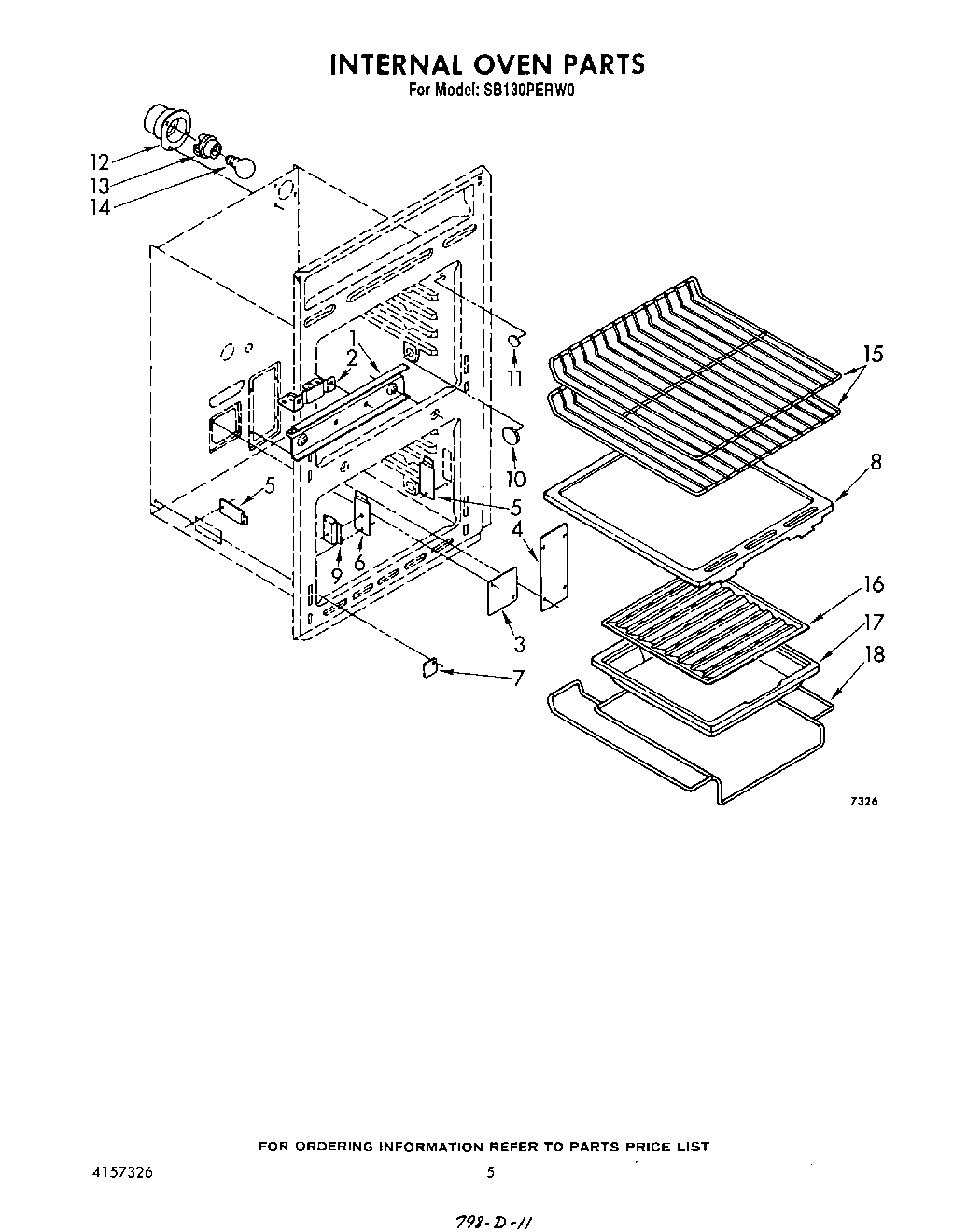

SB130PERW0 04 – INTERNAL OVEN
Products
Position
Product
1
W10080180 Whirlpool Nut
1
Screw, 10-24 X 3/8 (2)
1
Support, Channel
2
Support, Burner
3
Plate, Cover
4
Plate, Cover
4
WP308685 Whirlpool Microwave Screw
5
Cover, Spring (3)
6
Cover, Spring (1)
6
WP681249 Whirlpool Screw Assembly
6
Screw, 8-18 X 3/8 (4)
7
Cover, Oven Back
8
Bottom, Oven
9
Box, Orfice
9
Orfice
10
Plug, Button (4)
11
Plug, Button (1)
12
Housing, Light
13
Socket, Light
14
RANGE ONLY 40W 120V APPL BULB
15
Rack, Oven
16
Grid, Broiler
17
Pan, Broiler
18
Rack, Broiler
←
