SB130PSK0 02 – SECTION

SB130PSK0 02 – SECTION

Written by

in

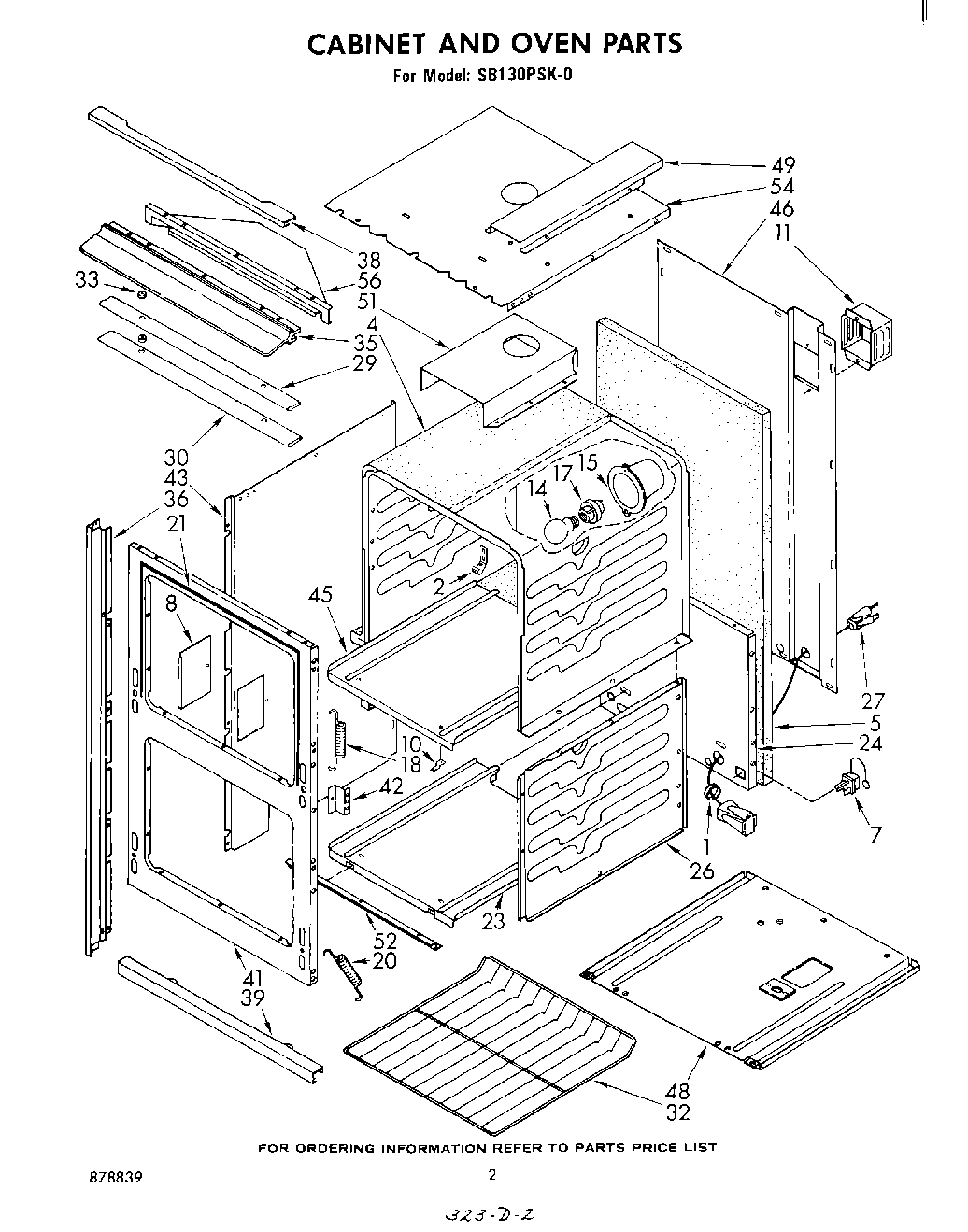

SB130PSK0 02 – SECTION

Products

PositionProduct
1Bushing, Snap
298005642 Whirlpool Clip
4WPW10208653 Whirlpool Insulation
7Plug, Male Receptacle
8Cover, Access (4)
10Clip, Oven Bottom Plate (2)
11Cover, Light Socket
14RANGE ONLY 40W 120V APPL BULB
15Box, Oven Light
17Socket, Oven Light
18Spring, Oven Door (2)
20Spring, Broiler Door
21Seal, Oven Door (Top (2))
21Seal, Oven Door (Side (2))
23Bottom, Broiler Compartment
24Back, Broler Compartment
26Side Broiler (Right Side)
26Side Broiler (Left Side)
27Cord, Extension
29Louver, Vent Center
30Louver, Vent Bottom
32Rack, Oven (2)
33Spacer, Vent Grille (4)
35Trim, Control Panel Bottom
36Trim, Side (Left Side)
36Trim, Side (Right Side)
38Trim, Top
39Trim, Bottom
41Front, Main
42Bracket, Oven Door Spring (2)
43Panel, End (Right Side)
43Panel, End (Left Side)
45Plate, Oven Bottom
46Back, Main
48Base, Main
49Cover, Wire (Top)
51Box, Vent
52Support, Bottom Plate
54Cover, Insulation
56Extension, Vent Box
56Booklet, Use & Care
56Instructions, Installation
56Diagram, Wiring
56List, Repair Parts
