SB130PSK0 03 – SECTION

SB130PSK0 03 – SECTION

Written by

in

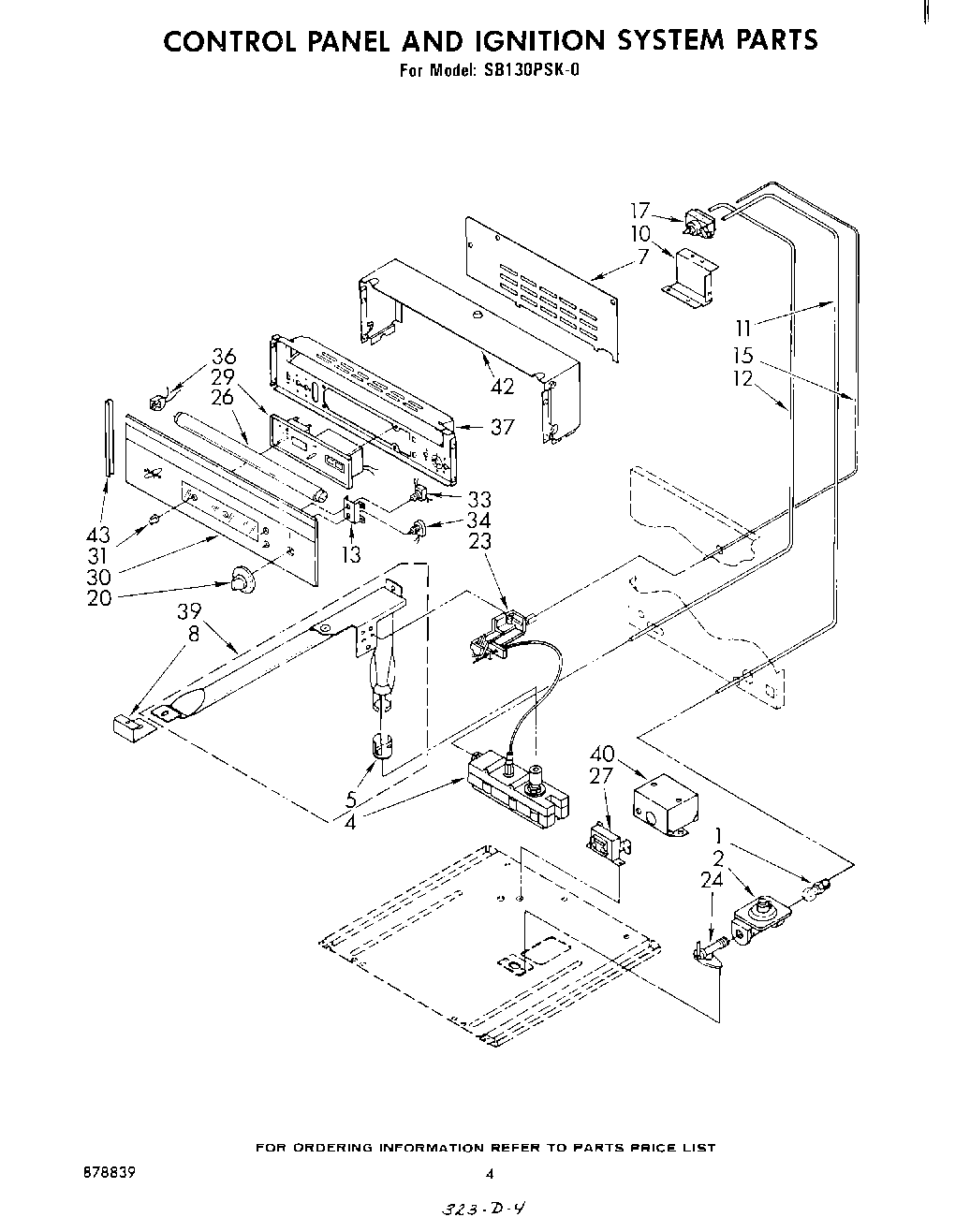

SB130PSK0 03 – SECTION

Products

PositionProduct
1Fitting Flange 1/2 x 3/8
2Regulator, Pressure
4Valve, Oven Lighter Safety
5Shutter, Oven Burner Air
7Back, Control Box
8Support, Oven Burner (Front)
10Support, Oven Control
11Tubing, Regulator/ Oven Control
12Tubing, Oven Control/Safety Valve
13Bracket Switch Mounting
15Tubing, Control Pilot
17Control, Oven
20Dial, Oven Control
23Lighter, Oven Burner
24Valve, Cut Off
26Bulb, Fluorescent Light
27Ballast, Fluorescent Light
29Clock, Automatic
30Glass, Control Panel
31Knob, Clock (2)
33Switch, Oven Light
34Switch, Fluorescent Light
36Socket, Fluorescent Light (Left Side)
36Socket, Fluorescent Light (Right Side)
37Support Clock
39Burner, Oven
40Support, Ballast
42Box, Control
43Trim, Backguard Glass (2)
