SB130PSK0 04 – SECTION

Products

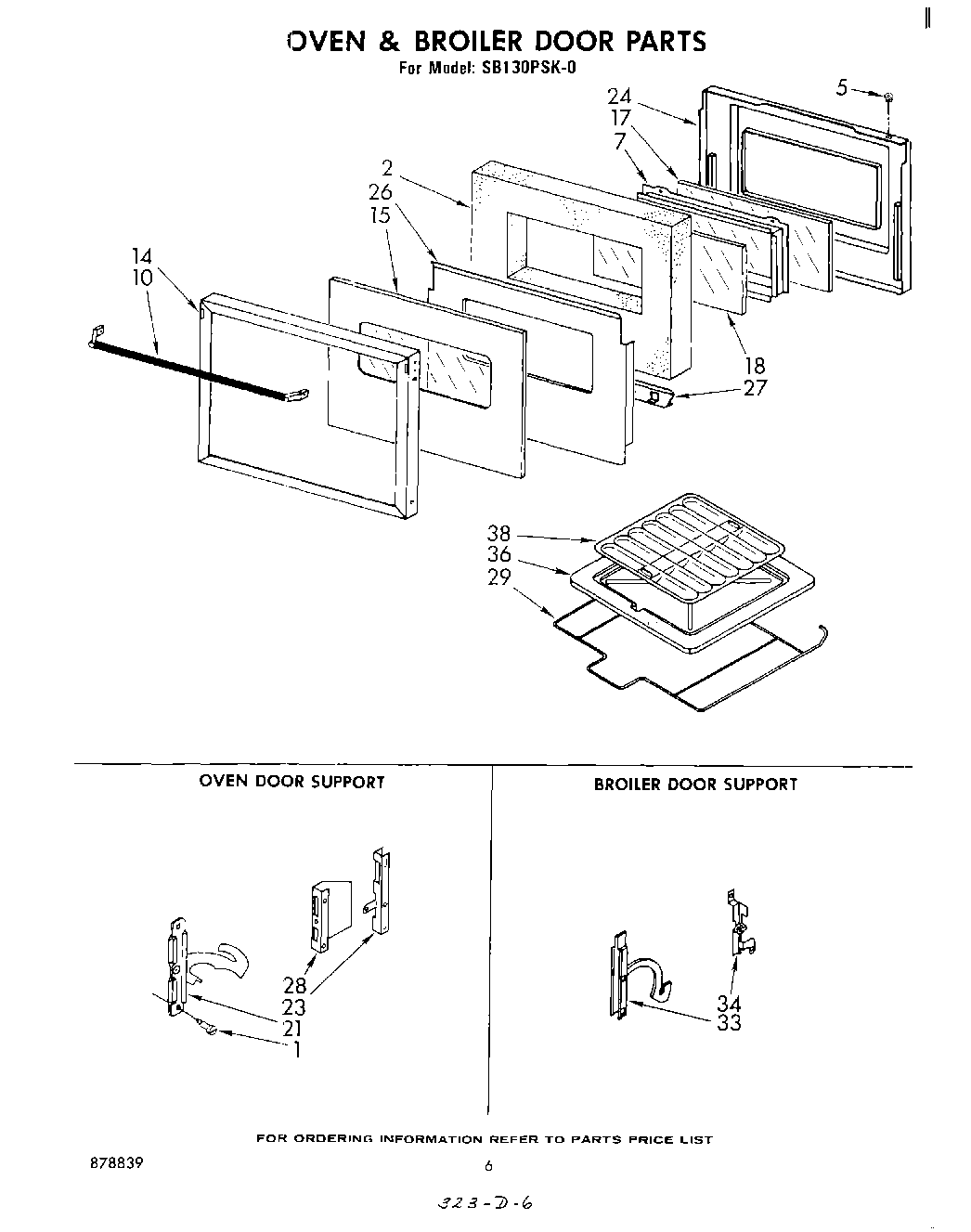

PositionProduct
1Bolt, Shoulder 10-24 x 7/16 (2)
2WPW10208653 Whirlpool Insulation
598460 Whirlpool Nut
7Frame, Window
10Handle Door (Oven)
14Frame, Door
15Glass, Oven Door Outside
17Glass, Oven Door Inside
18Glass, Oven Door Center
21Hinge, Oven Door (2)
23Support, Oven Door (Right Side)
23Support, Oven Door (Left Side)
24Lining, Oven Door (Upper Oven)
24Lining, Oven Door
26Baffle, Door
27Retainer, Insulation
28Brace Hinge Support (Left Side)
28Brace Hinge Support (Right Side)
29Rack, Broiler Pan
33Hinge, Broiler Door (2)
34Support, Broiler Door (Right Side)
34Support, Broiler Door (Left Side)
36Pan, Broiler
38Tray, Broiler Pan
