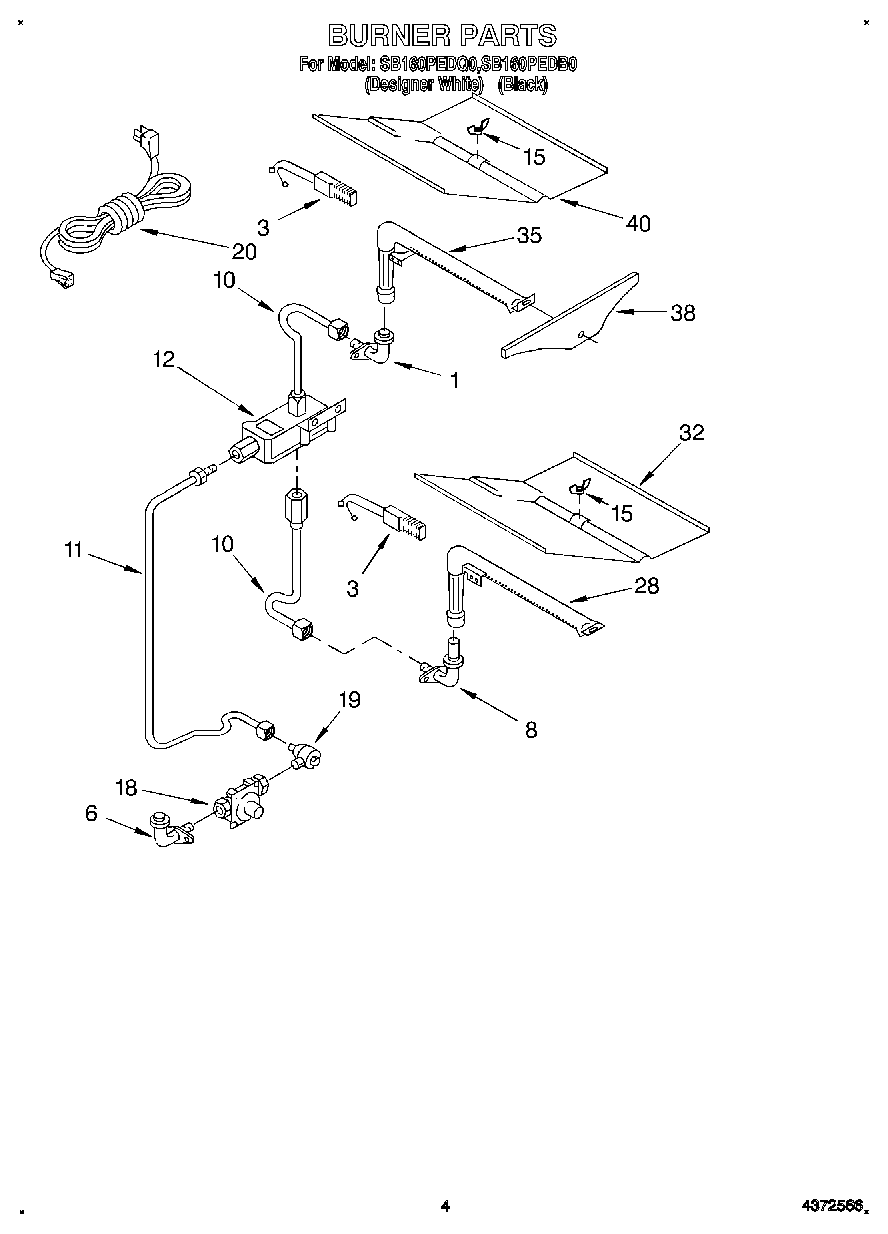

SB160PEDB0 03 – BURNERadmin2025-04-26T11:20:52+00:00SB160PEDB0 03 – BURNER
Products
| Position | Product |
|---|
| 1 | Mixer, Broiler |
| 3 | Igniter (Broiler Burner) |
| 3 | Screw, 8-32 x 3/16 (2) |
| 3 | Igniter (Bake) |
| 6 | Fitting, Elbow |
| 8 | Elbow, Mixer |
| 10 | Tubing, Mixer |
| 11 | Tubing, Safety Valve |
| 12 | Valve, Safety |
| 15 | Nut, Wing |
| 18 | Regulator |
| 19 | Valve, Shut-Off |
| 20 | Cord, Power |
| 28 | Burner, Bake/Broil |
| 32 | Baffle, Bake |
| 35 | Burner, Broiler |
| 38 | Shield, Broil Burner |
| 38 | Screw, No.10x24x5/8 |
| 40 | Baffle, Broiler |
| 40 | Screw, 10-24 x 3/8 (2) |
