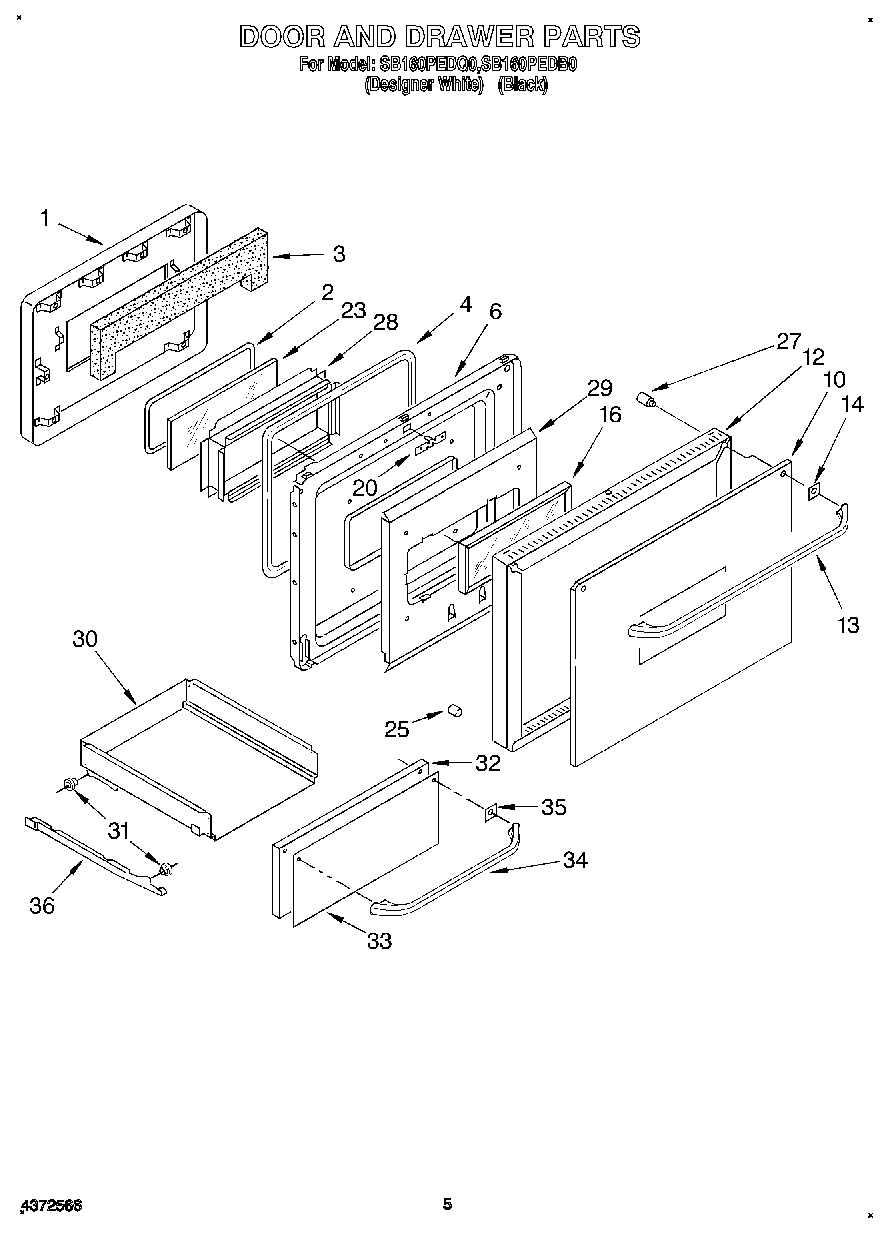

SB160PEDB0 04 – DOOR AND DRAWER, LITERATURE

Products

Position	Product
	Installation Instructions
	Wiring Diagram
	Guide, Use & Care
1	Baffle, Door
2	Seal, Window
3	Insulation, Door
4	Seal-Oven Door
6	Liner, Door
10	Glass, Outer Door
10	Glass, Outer Door (White)
12	Frame, Door
12	Back Splash (Screw (4) 10AB x 1/2“)
13	Handle, Door (White)
13	Handle, Oven Door
13	Handle, Door (Screw, No.10x24x21/4 (2))
16	Glass, Inner
20	Strike
23	Glass, Inner Door
25	Button, Plug
27	Spacer, Handle
28	Collar, Glass
28	Screw, 10-24 x 3/8 (2)
29	Panel, Airwash
30	Drawer, Storage
30	Screw, No.8x18x3/8 (4)
31	Roller
32	Panel, Inner Door
33	Glass, Drawer
33	Panel, Glass (White)
34	Screw, No.10x24x5/8
34	Handle, Drawer (Black)
34	Handle, Drawer (White)
35	Spacer, Handle (White)
35	Spacer, Handle (Black)
36	Track, Drawer (Left Hand)
36	Track, Drawer (Right Hand)
36	WP308685 Whirlpool Microwave Screw
36	W10080180 Whirlpool Nut
