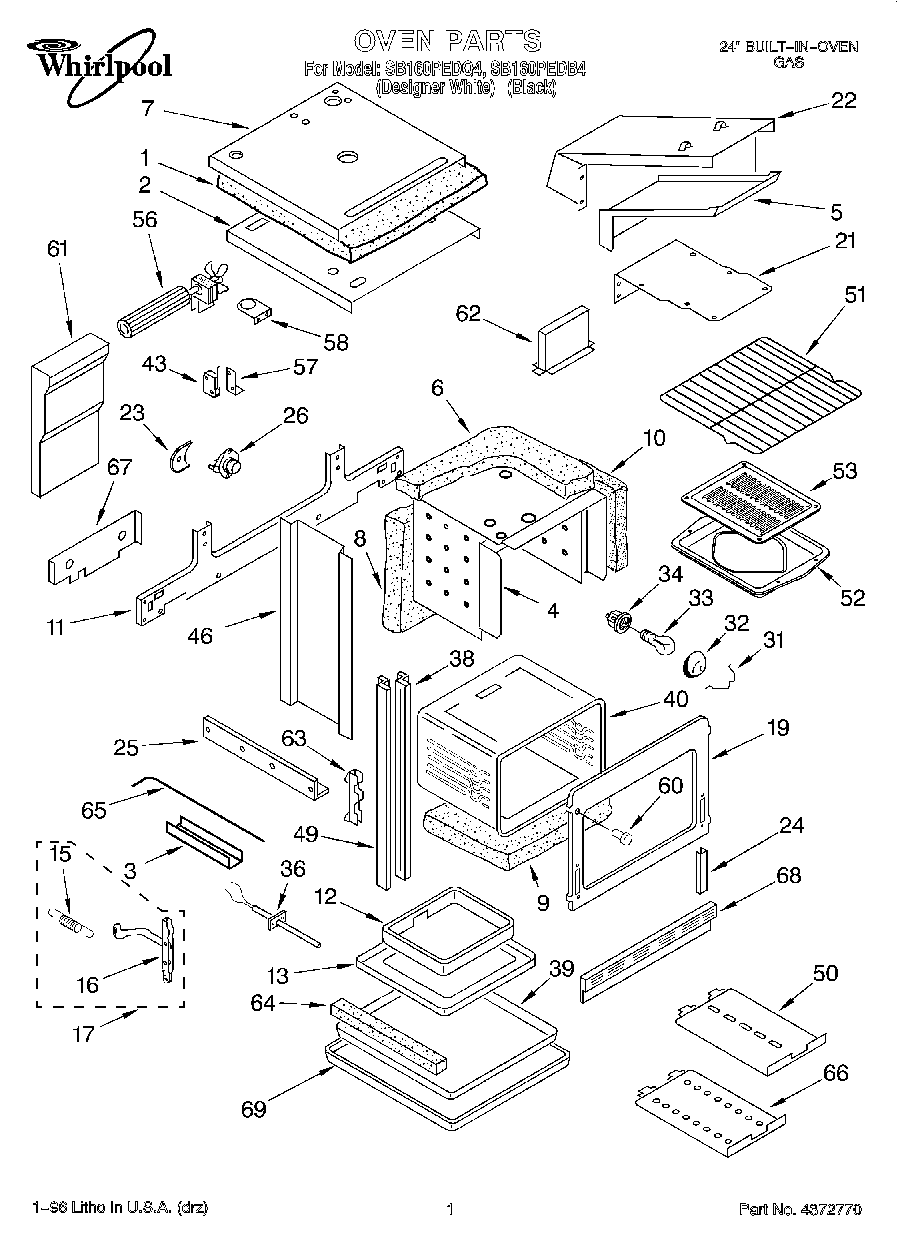

SB160PEDB4 01 – OVEN

Products

Position	Product
1	Insulation, Top
2	Retainer-Oven Top
3	Shield, Switch Rod
4	Shield, Top And Sides
5	Flue
6	Insulation
7	Shield, Oven Top
7	Screw
8	Insulation, Back
9	Insulation, Bottom
10	Insulation, Top & Sides
11	Bracket, Safety Valve
12	Box, Oven Burner
12	WP308685 Whirlpool Microwave Screw
13	Bottom, Oven
15	Spring, Door (2)
16	Hinge, Door (2)
17	Hinge Assembly
17	Bracket, Glass
19	Frame, Front
21	Shield, Flue Bottom
22	Shield, Flue Top
22	WP488729 Whirlpool Refrigerator Door Screw
23	Spring, Oven
24	Support, Front (2)
25	Support, Side
26	Switch, Thermo
31	Retainer, Lens
32	Lens, Light
33	RANGE ONLY 40W 120V APPL BULB
34	Socket, Lamp
36	Sensor
38	Trim, Inner (Right Side)
38	Trim, Inner (Left Side)
39	Shield, Insulation (Base)
40	Liner, Oven
43	Switch, Oven Light
43	Screw, 4-40 x 10 (2)
46	Shield, Body Sides
49	Trim, Outer Side (White)
49	Trim, Outer
50	Shield, Base
51	Rack, Oven
52	Pan, Broiler
53	Grid, Broiler Pan
56	Blower
57	Bracket, Switch Mounting
58	Bracket, Thermostat
60	Bumper, Front (4)
61	Duct, Blower Motor
62	Adaptor, Flue
63	Channel, Hinge
64	WPL 816863
64	Insulation, Bottom (Sides (2))
65	WPL 816879
66	WPL 816880
67	Screw, 10-24 x 3/8 (2)
67	WPL 4372524
68	WPL 4372715
68	Trim, Bottom
68	WPL 816410
69	Base, Wrapper
69	WPL 816869
69	WPL 816865
69	WPL 816387
