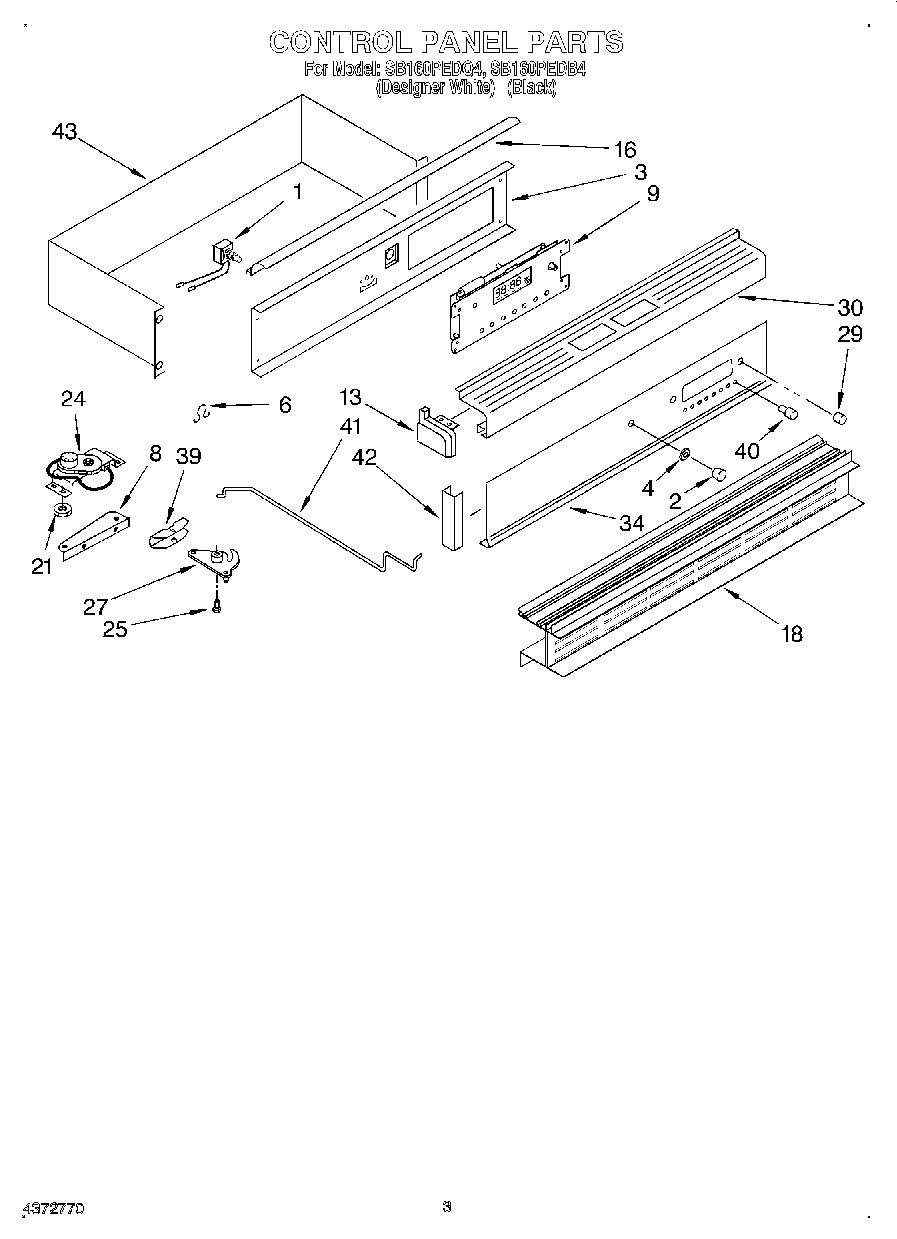

SB160PEDB4 02 – CONTROL PANEL

Products

PositionProduct
1Switch, Oven Light
1Switch, Oven Light (White)
2Bezel, Switch (White)
2Bezel, Switch (Black)
3Plate, Instrument Mtg.
4Nut, Decorative
6Fastener, Wire
8Base, Latch Motor
9Screw, No.6x32x1/2
9Clock/Oven Control
9Nut, 6-32 (6)
13End Cap White (Left Side Black)
13Endcap (Right Hand)
13Endcap (Left Hand)
13End Cap (White (Right))
16Deflector, Heat
16Deflector, Heat (White)
16Deflector, Heat (Screw, No.6x18x1/4 (3))
18Trim, Center Vent (White)
18Trim, Center Vent (Black)
21W10080180 Whirlpool Nut
24Screw, 10-24 x 3/8 (2)
24Motor, Lock
25Stud, Latch
27Lever, Lock
29Knob, Clock (White)
29Knob, Clock (Black)
30Trim, Top (White)
30Trim, Top (Black)
30Trim, Top (Screw)
34Panel, Control (Black)
34Panel, Control (White)
39Housing, Latch
40Button, Control (9) (White)
40Button, Control (9) (Black)
41Rod, Latch Support
42Trim, Control Panel (2) (White)
42Trim, Control Pnl.
43Shield, Controls
43Screw, 8-22 (5)
