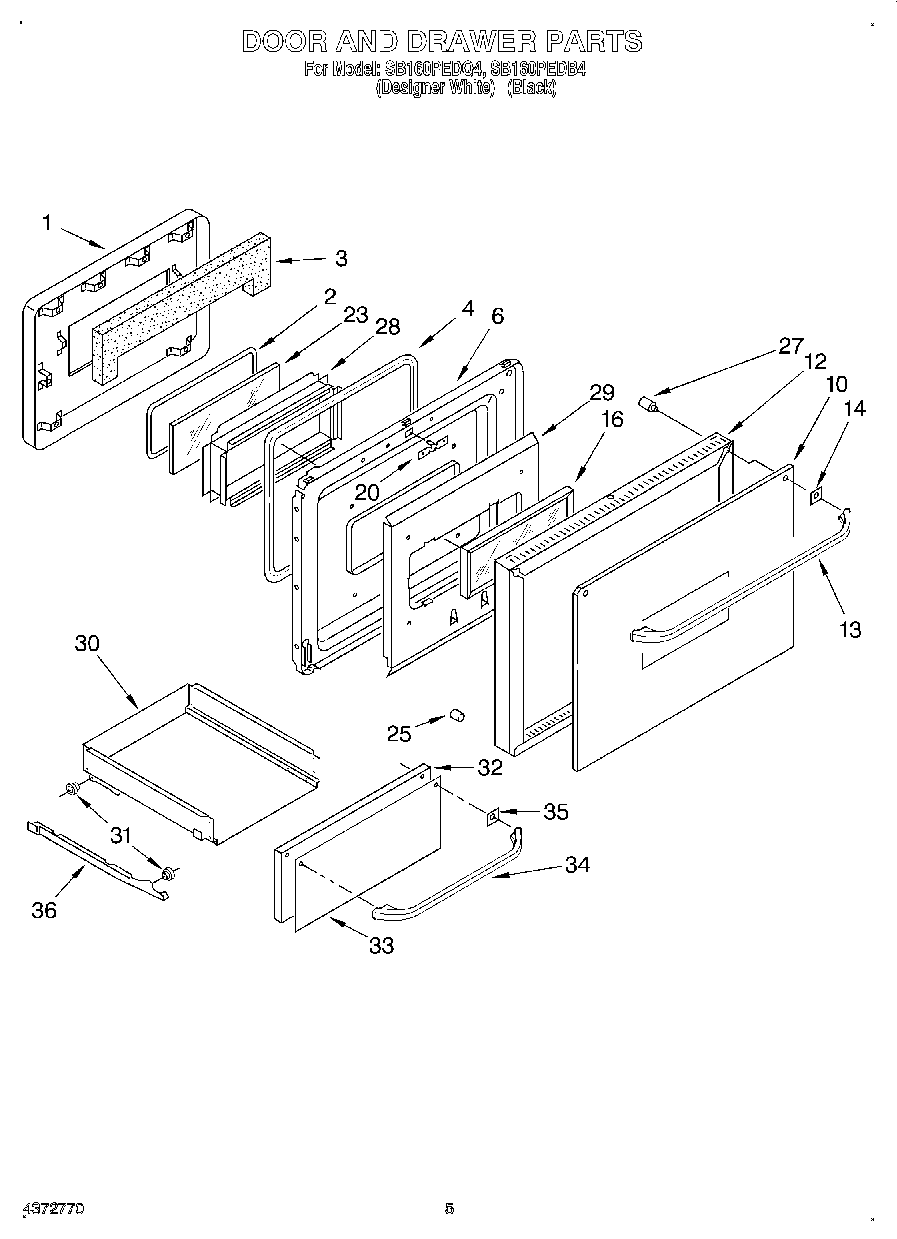

SB160PEDB4 04 – DOOR AND DRAWER, LIT/OPTIONALadmin2025-04-26T11:20:41+00:00SB160PEDB4 04 – DOOR AND DRAWER, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Installation Instructions |
| Wiring Diagram |
| Guide, Use & Care |
| 1 | Baffle, Door |
| 2 | Seal, Window |
| 3 | Insulation, Door |
| 4 | Seal-Oven Door |
| 6 | Screw, No.10x24x5/8 |
| 6 | Liner, Door |
| 10 | Glass, Outer Door (White) |
| 10 | Glass, Outer Door |
| 12 | Back Splash (Screw (4) 10AB x 1/2``) |
| 12 | Frame, Door |
| 16 | Glass, Inner |
| 20 | Strike |
| 23 | Glass, Inner Door |
| 25 | Button, Plug |
| 27 | Spacer, Handle |
| 28 | Collar, Glass |
| 28 | Screw, 10-24 x 3/8 (2) |
| 29 | Panel, Airwash |
| 30 | Drawer, Storage |
| 30 | Screw, No.8x18x3/8 (4) |
| 31 | Roller |
| 32 | Panel, Inner Door |
| 33 | Panel, Glass (White) |
| 33 | Glass, Drawer |
| 34 | Screw, Handle (4) |
| 34 | Handle, Door (White) |
| 34 | Handle, Oven Door |
| 35 | Spacer, Handle (White) |
| 35 | Spacer, Handle (Black) |
| 36 | Track, Drawer (Left Hand) |
| 36 | Track, Drawer (Right Hand) |
| 36 | WP308685 Whirlpool Microwave Screw |
| 36 | W10080180 Whirlpool Nut |
