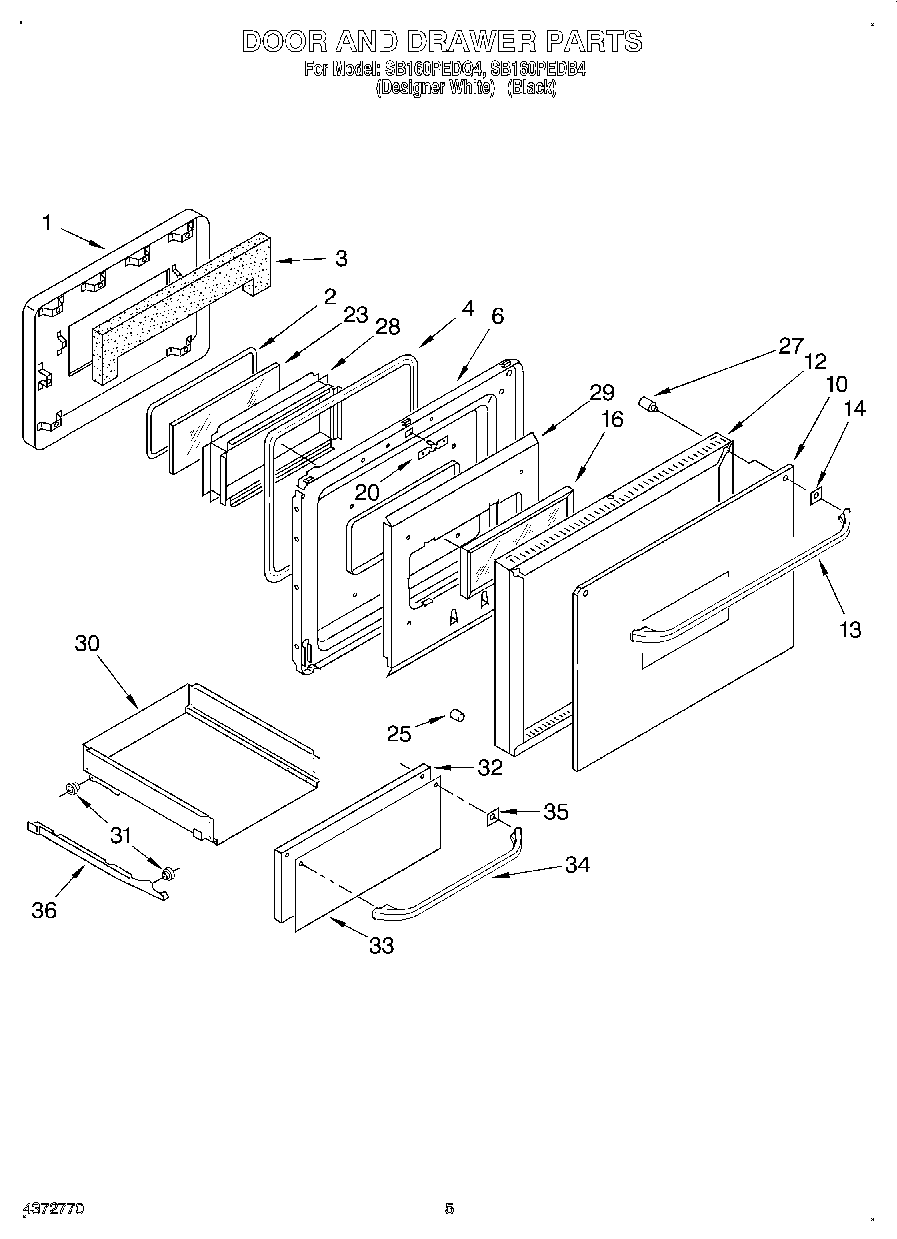

SB160PEDQ4 04 – DOOR AND DRAWER, LIT/OPTIONAL

Products

Position	Product
	Installation Instructions
	Wiring Diagram
	Guide, Use & Care
1	Baffle, Door
2	Seal, Window
3	Insulation, Door
4	Seal-Oven Door
6	Screw, No.10x24x5/8
6	Liner, Door
10	Glass, Outer Door (White)
10	Glass, Outer Door
12	Back Splash (Screw (4) 10AB x 1/2“)
12	Frame, Door
16	Glass, Inner
20	Strike
23	Glass, Inner Door
25	Button, Plug
27	Spacer, Handle
28	Collar, Glass
28	Screw, 10-24 x 3/8 (2)
29	Panel, Airwash
30	Drawer, Storage
30	Screw, No.8x18x3/8 (4)
31	Roller
32	Panel, Inner Door
33	Panel, Glass (White)
33	Glass, Drawer
34	Screw, Handle (4)
34	Handle, Door (White)
34	Handle, Oven Door
35	Spacer, Handle (White)
35	Spacer, Handle (Black)
36	Track, Drawer (Left Hand)
36	Track, Drawer (Right Hand)
36	WP308685 Whirlpool Microwave Screw
36	W10080180 Whirlpool Nut
