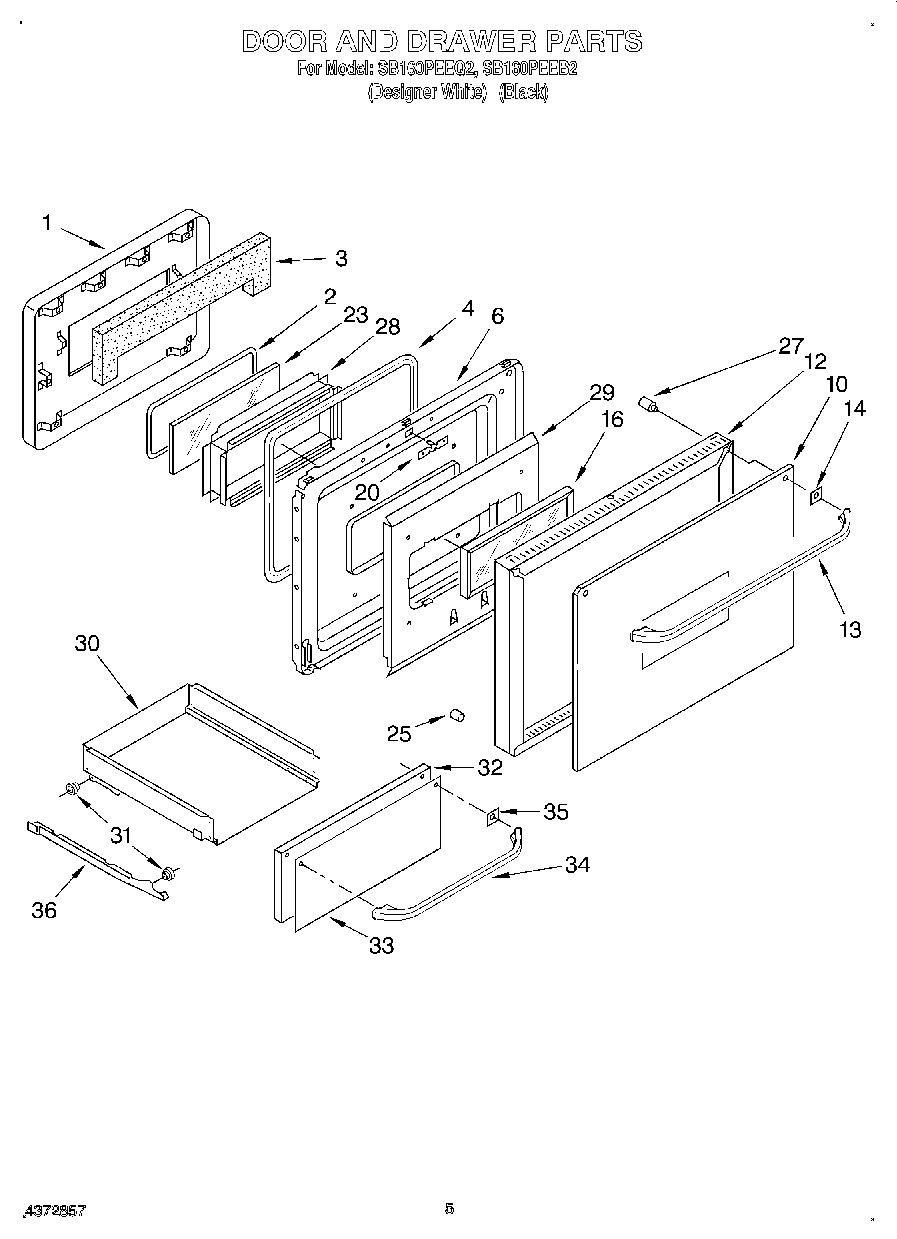

SB160PEEB2 04 – DOOR AND DRAWER, LITERATURE
Written by
in
SB160PEEB2 04 – DOOR AND DRAWER, LITERATURE
Products
Position
Product
Tech Sheet
Installation Instructions
Guide, Use & Care
1
Baffle, Door
2
Seal, Window
3
Insulation, Door
4
Seal-Oven Door
6
Liner, Door
6
Screw, No.10x24x5/8
10
Glass, Outer Door
10
Glass, Outer Door (White)
12
Back Splash (Screw (4) 10AB x 1/2“)
12
Frame, Door
16
Glass, Inner
20
Strike
23
Glass, Inner Door
25
Button, Plug
27
Spacer, Handle
28
Collar, Glass
28
Screw, 10-24 x 3/8 (2)
29
Panel, Airwash
30
Drawer, Storage
30
Screw, No.8x18x3/8 (4)
31
Roller
32
Panel, Inner Door
33
Glass, Drawer
33
Panel, Glass (White)
34
Handle, Oven Door
34
Screw, Handle (4)
34
Handle, Door (White)
35
Spacer, Handle (White)
35
Spacer, Handle (Black)
36
Track, Drawer (Right Hand)
36
Track, Drawer (Left Hand)
36
WP308685 Whirlpool Microwave Screw
36
W10080180 Whirlpool Nut
←
