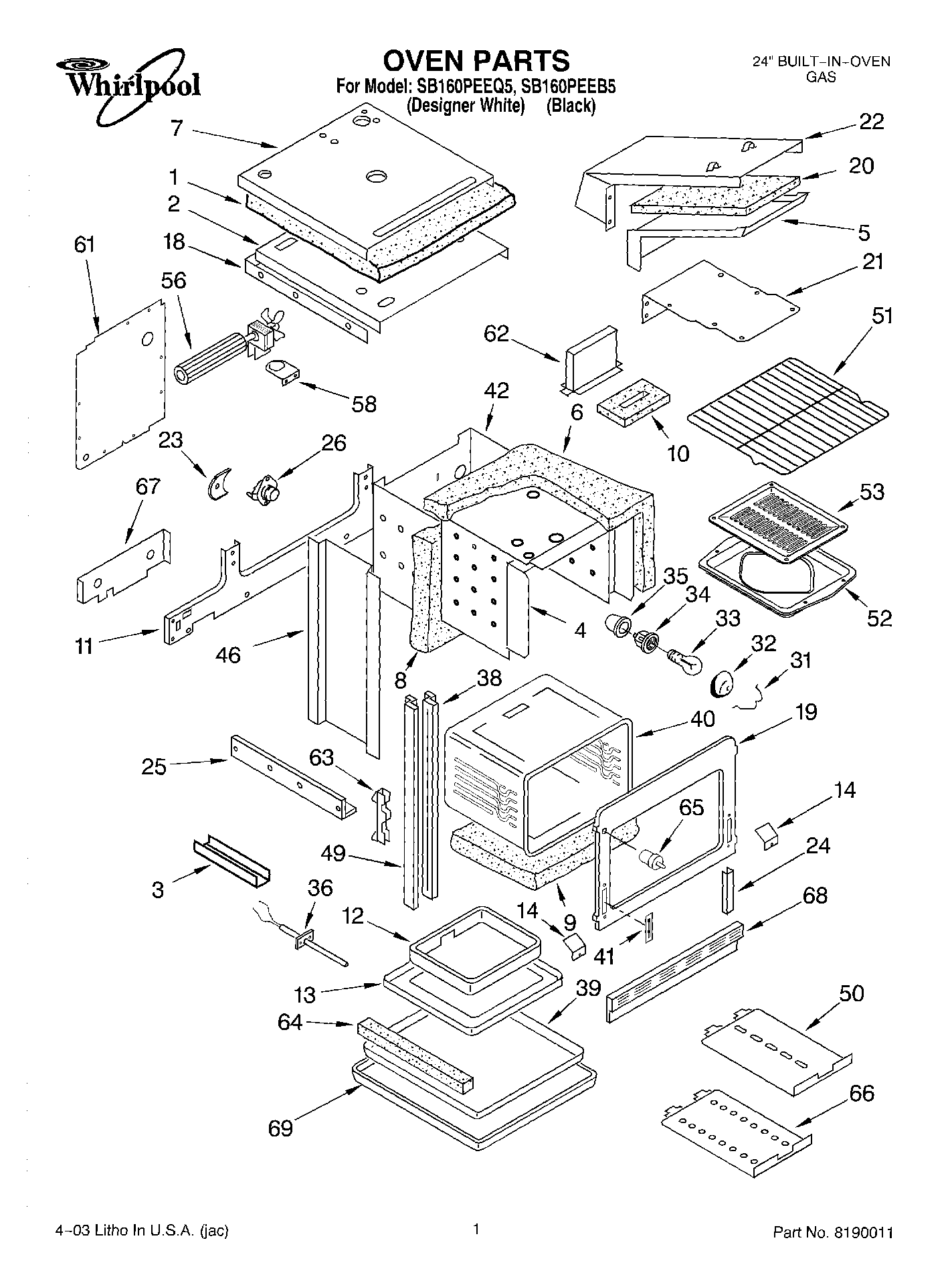

SB160PEEB5 01 – OVEN PARTS

Products

Position	Product
	WPL ARI128641A
1	Insulation, Top
2	Retainer-Oven Top
3	Shield, Switch Rod
4	Shield, Top And Sides
5	Flue
6	Insulation, Wrap
7	Shield, Oven Top
7	Screw
8	Insulation, Back
9	Insulation,
10	Insulation Bottom
11	Bracket, Safety Valve
12	Box, Burner
12	WP308685 Whirlpool Microwave Screw
13	Bottom, Oven
14	Retainer, Door
18	Shield, Controls
19	Frame, Front
20	Insulation, Flue
21	Shield, Flue Bottom
22	WP488729 Whirlpool Refrigerator Door Screw
22	Shield, Flue Top
23	Spring, Support
24	Support, Front (2)
25	Support, Side
26	Switch, Thermo
31	Retainer, Lens
32	Lens, Light
33	RANGE ONLY 40W 120V APPL BULB
34	W10856866 Whirlpool Light Socket
35	Housing, Light
36	Sensor
38	Trim, Inner (Right Side)
38	Trim, Inner (Left Side)
39	Shield, Insulation (Base)
40	Liner, Oven
41	Cover, Hinge
42	Wrapper, Back
46	Shield, Body Sides
49	Trim, Outer Side (Black)
49	Trim, Outer Side (White)
50	WPL 816880
51	Rack, Oven
52	Pan, Broiler
53	Grid, Broiler Pan
56	Blower
58	Bracket, Thermostat
61	Shield, Rear
62	Adapter, Fluebox
63	Channel, Hinge (2)
64	Insulation, Bottom (Sides (2))
64	Insulation, Bottom (Front)
65	WPL 4372841
66	Shield, Lower Oven
67	Shield, Ho
67	Screw, 10-24 x 3/8 (2)
68	WPL 4372715
68	Trim, Bottom
68	WPL 816410
69	WPL 816869
69	WPL 8189574
69	WPL 816865
69	WPL 816387
69	WPL ARI128642A
69	WPL 8190293
