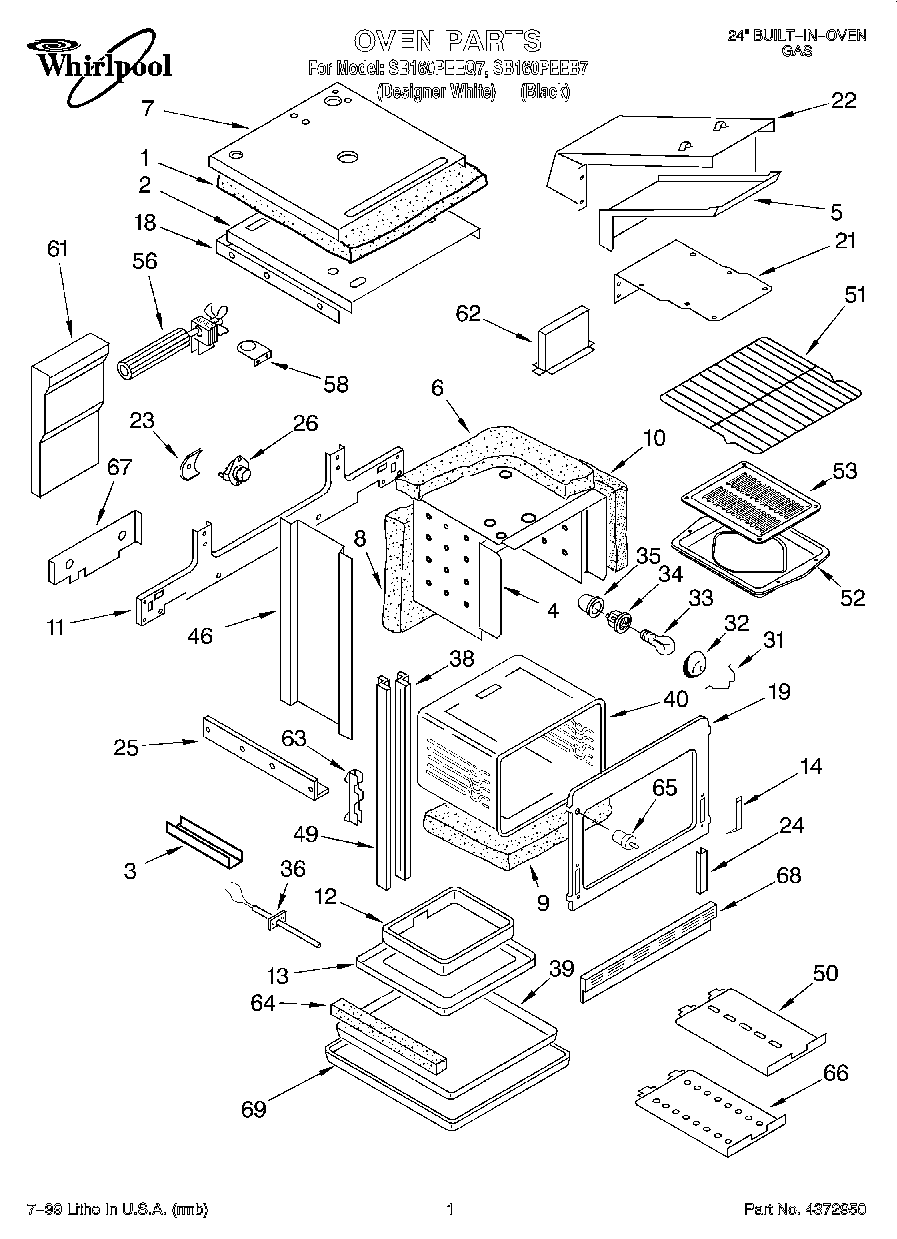

SB160PEEB7 01 – OVEN

Products

Position	Product
1	Insulation, Top
2	Retainer-Oven Top
3	Shield, Switch Rod
4	Shield, Top And Sides
5	Flue
6	Insulation
7	Shield, Oven Top
7	Screw
8	Insulation, Back
9	Insulation, Bottom
10	Insulation, Top & Sides
11	Bracket, Safety Valve
12	WP308685 Whirlpool Microwave Screw
12	Box, Oven Burner
13	Bottom, Oven
14	Retainer, Door
18	Shield, Controls
19	Frame, Front
21	Shield, Flue Bottom
22	Shield, Flue Top
22	WP488729 Whirlpool Refrigerator Door Screw
23	Spring, Oven
24	Support, Front (2)
25	Support, Side
26	Switch, Thermo
31	Retainer, Lens
32	Lens, Light
33	RANGE ONLY 40W 120V APPL BULB
34	W10856866 Whirlpool Light Socket
35	Housing, Light
36	Sensor
38	Trim, Inner (Right Side)
38	Trim, Inner (Left Side)
39	Shield, Base
40	Liner, Oven
46	Shield, Body Sides
49	Trim, Outer Side (Black)
49	Trim, Outer Side (White)
50	WPL 816880
51	Rack, Oven
52	Pan, Broiler
53	Grid, Broiler Pan
56	Blower
58	Bracket, Thermostat
61	Duct, Blower Motor
62	Adaptor, Flue
63	Channel, Hinge
64	Insulation, Bottom (Sides (2))
64	WPL 816863
65	WPL 4372841
66	Shield, Lower Oven
67	Screw, 10-24 x 3/8 (2)
67	WPL 4372524
68	WPL 4372715
68	Trim, Bottom
68	WPL 816410
69	WPL 816865
69	WPL 816869
69	WPL 816387
69	Base, Wrapper
