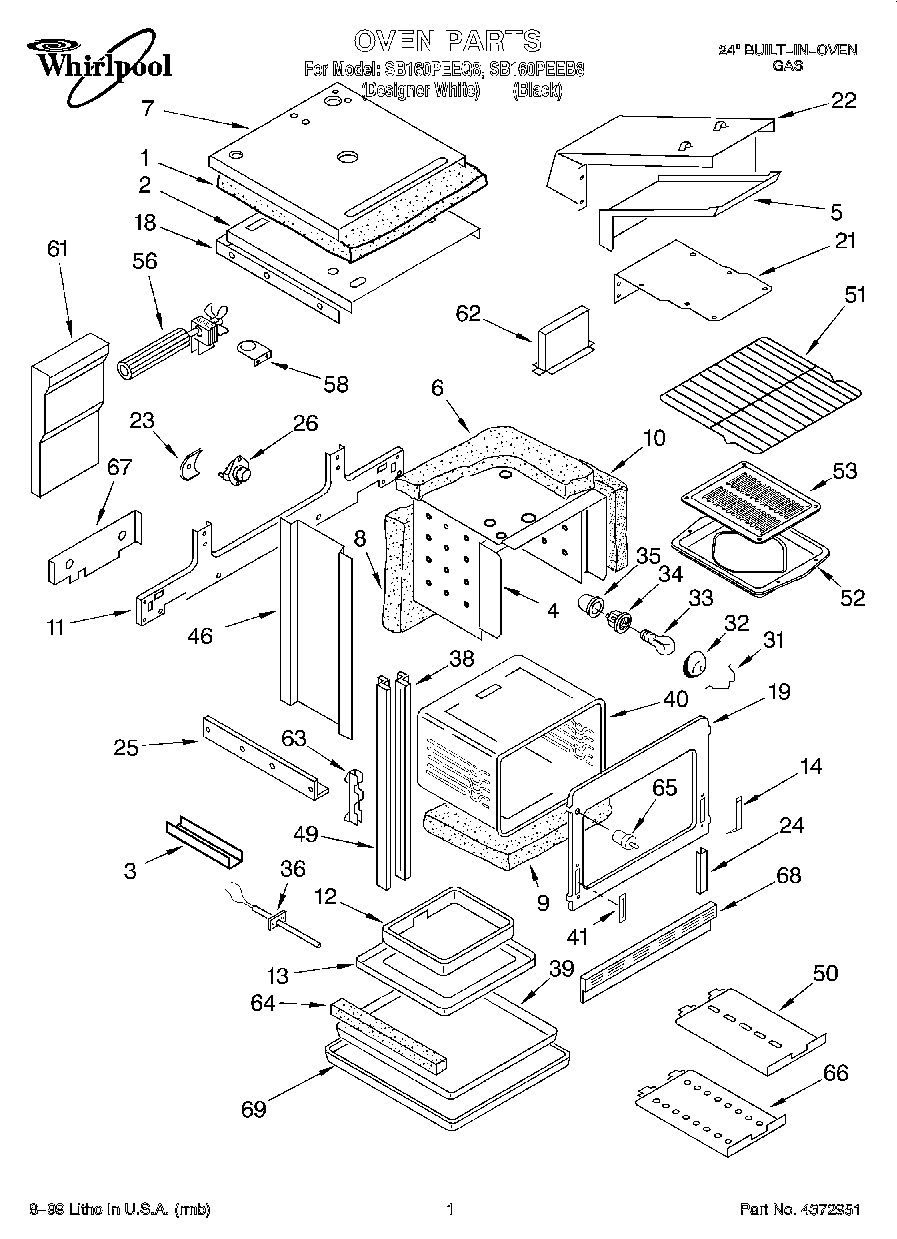

| 1 | Insulation, Top |
| 2 | Retainer-Oven Top |
| 3 | Shield, Switch Rod |
| 4 | Shield, Top And Sides |
| 5 | Flue |
| 6 | Insulation |
| 7 | Shield, Oven Top |
| 7 | Screw |
| 8 | Insulation, Back |
| 9 | Insulation, Bottom |
| 10 | Insulation, Top & Sides |
| 11 | Bracket, Safety Valve |
| 12 | Box, Oven Burner |
| 12 | WP308685 Whirlpool Microwave Screw |
| 13 | Bottom, Oven |
| 14 | Retainer, Door |
| 18 | Shield, Controls |
| 19 | Frame, Front |
| 21 | Shield, Flue Bottom |
| 22 | Shield, Flue Top |
| 22 | WP488729 Whirlpool Refrigerator Door Screw |
| 23 | Spring, Oven |
| 24 | Support, Front (2) |
| 25 | Support, Side |
| 26 | Switch, Thermo |
| 31 | Retainer, Lens |
| 32 | Lens, Light |
| 33 | RANGE ONLY 40W 120V APPL BULB |
| 34 | W10856866 Whirlpool Light Socket |
| 35 | Housing, Light |
| 36 | Sensor |
| 38 | Trim, Inner (Right Side) |
| 38 | Trim, Inner (Left Side) |
| 39 | Shield, Insulation (Base) |
| 40 | Liner, Oven |
| 41 | Cover, Hinge |
| 46 | Shield, Body Sides |
| 49 | Trim, Outer Side (White) |
| 49 | Trim, Outer Side (Black) |
| 50 | WPL 816880 |
| 51 | Rack, Oven |
| 52 | Pan, Broiler |
| 53 | Grid, Broiler Pan |
| 56 | Blower |
| 58 | Bracket, Thermostat |
| 61 | Duct, Blower Motor |
| 62 | Adaptor, Flue |
| 63 | Channel, Hinge (2) |
| 64 | WPL 816863 |
| 64 | Insulation, Bottom (Sides (2)) |
| 65 | WPL 4372841 |
| 66 | Shield, Lower Oven |
| 67 | Screw, 10-24 x 3/8 (2) |
| 67 | WPL 4372524 |
| 68 | WPL 4372715 |
| 68 | Trim, Bottom |
| 68 | WPL 816410 |
| 69 | WPL 816387 |
| 69 | WPL 816869 |
| 69 | Base, Wrapper |
| 69 | WPL 816865 |
