SB160PEEB8 03 – BURNER

SB160PEEB8 03 – BURNER

Written by

in

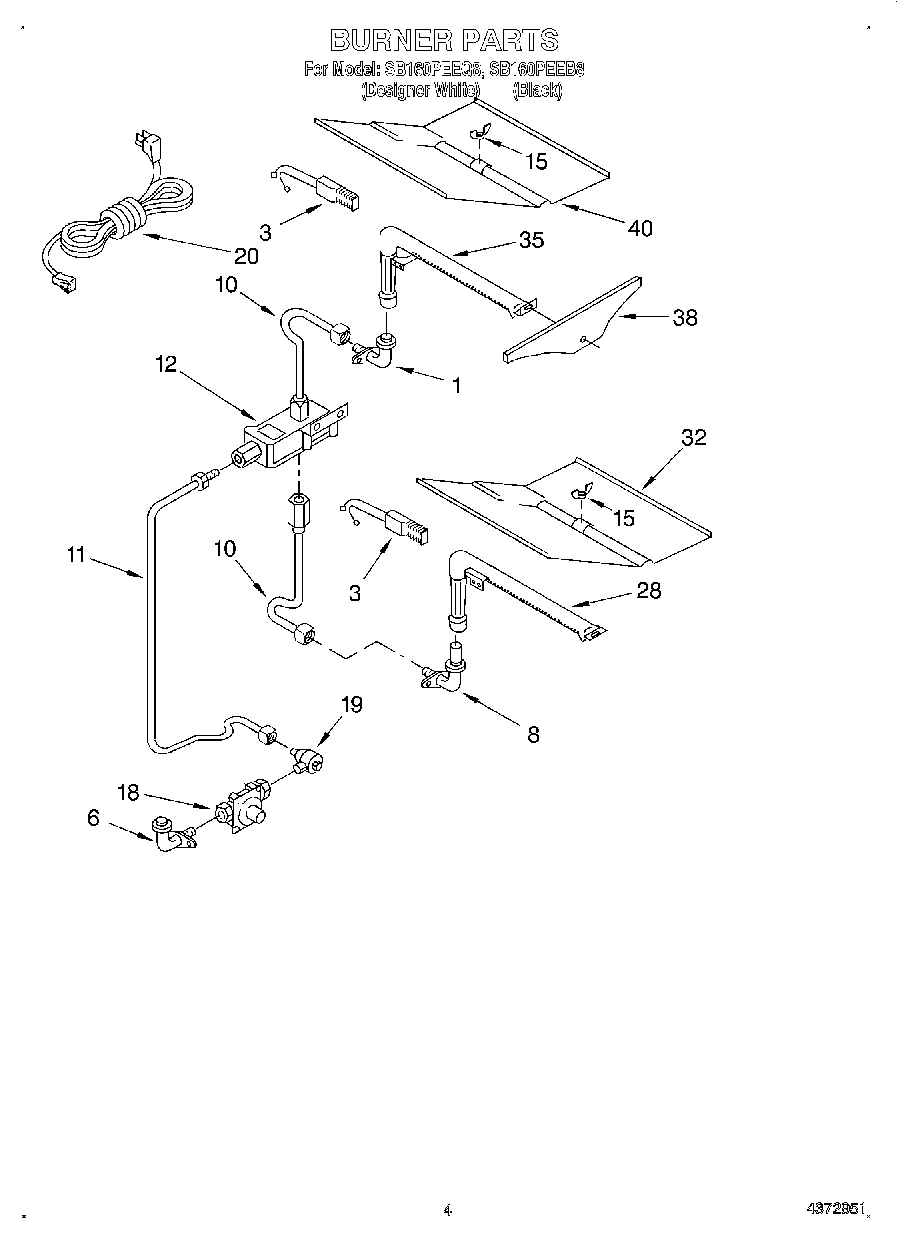

SB160PEEB8 03 – BURNER

Products

Position	Product
1	Mixer, Broiler
3	Igniter (Broil)
3	Igniter (Bake)
6	Fitting, Elbow
8	Elbow, Mixer
10	Tubing, Mixer
11	Tubing, Safety Valve
12	Valve, Safety
15	Nut, Wing
18	Regulator
19	Valve, Shut-Off
20	Cord, Power
28	Burner, Bake/Broil
32	Baffle, Bake
35	Burner, Broiler
38	Screw, No.10x24x5/8
38	Shield, Broil Burner
40	Baffle, Broiler
40	Screw, 10-24 x 3/8 (2)
