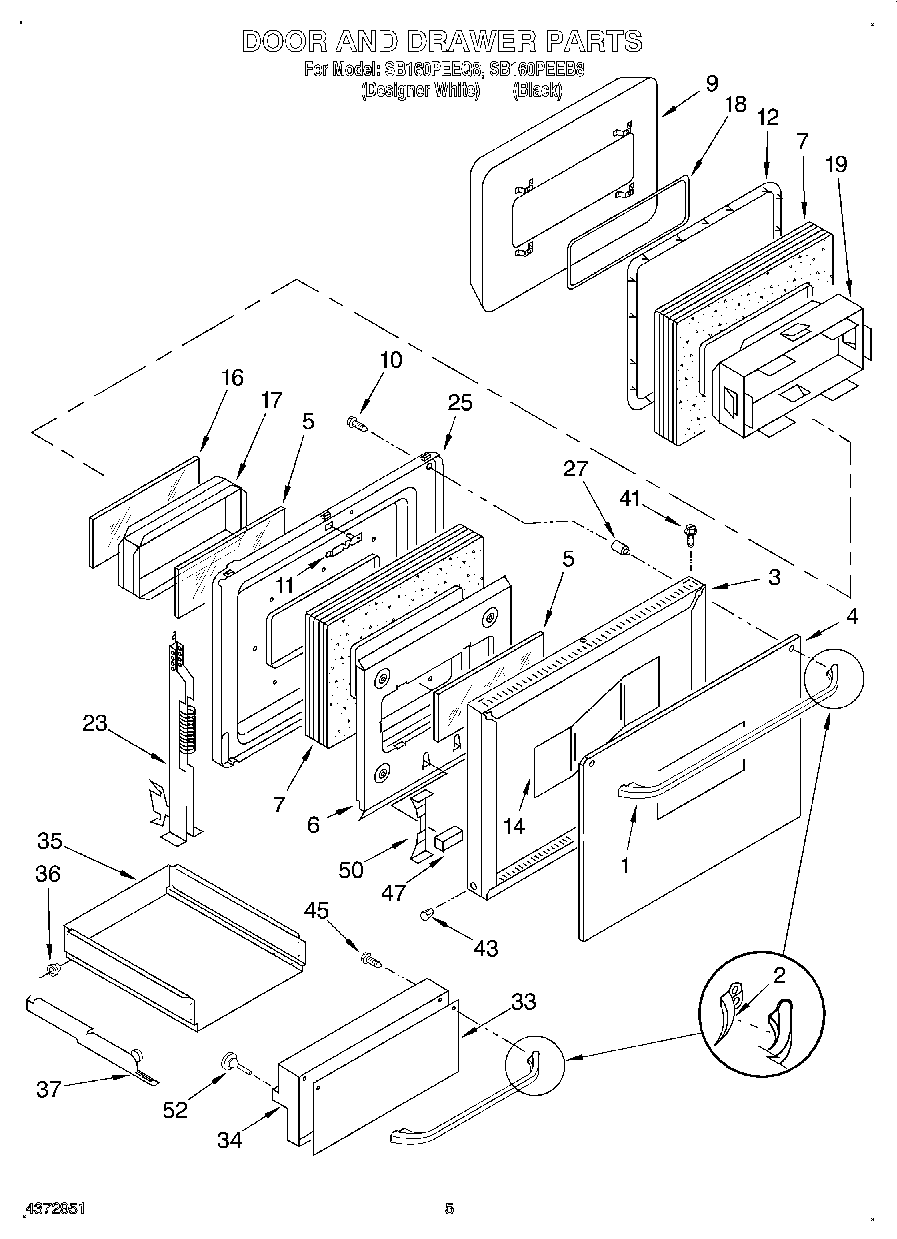

SB160PEEB8 04 – DOOR AND DRAWER, LITERATURE

Products

Position	Product
	Literature Parts (Installation Instructions)
	Guide, Use & Care
	Tech Sheet
1	Handle, Oven Door
1	Handle, Door (White)
2	Endcap, Handle (White)
2	Endcap, Handle (Black)
3	Frame, Oven Door
4	Glass, Outer Door
4	Glass, Outer (White)
5	Glass, Inner (2)
6	Shield, Heat
7	Insulation, Door
9	Baffle, Door
10	Screw, Handle (4)
11	Plate, Strike
12	Seal, Oven Door
14	Foil, Door
16	Glass, Inner Door
17	Spacer, Glass
18	Seal, Window
19	Collar, Glass
23	Hinge, Oven Door
25	Liner, Door
27	Spacer, Handle
33	Glass, Drawer
33	Panel, Glass (White)
34	Panel, Inner Door
35	Drawer, Utility
36	Roller, Drawer
37	Track, Drawer (Right Hand)
37	Track, Drawer (Left Hand)
41	Screw, 8-18 x 3/8
43	Button, Plug
45	Screw, Handle
47	Spacer
50	Bracket, Glass
52	Bumper, Front (4)
