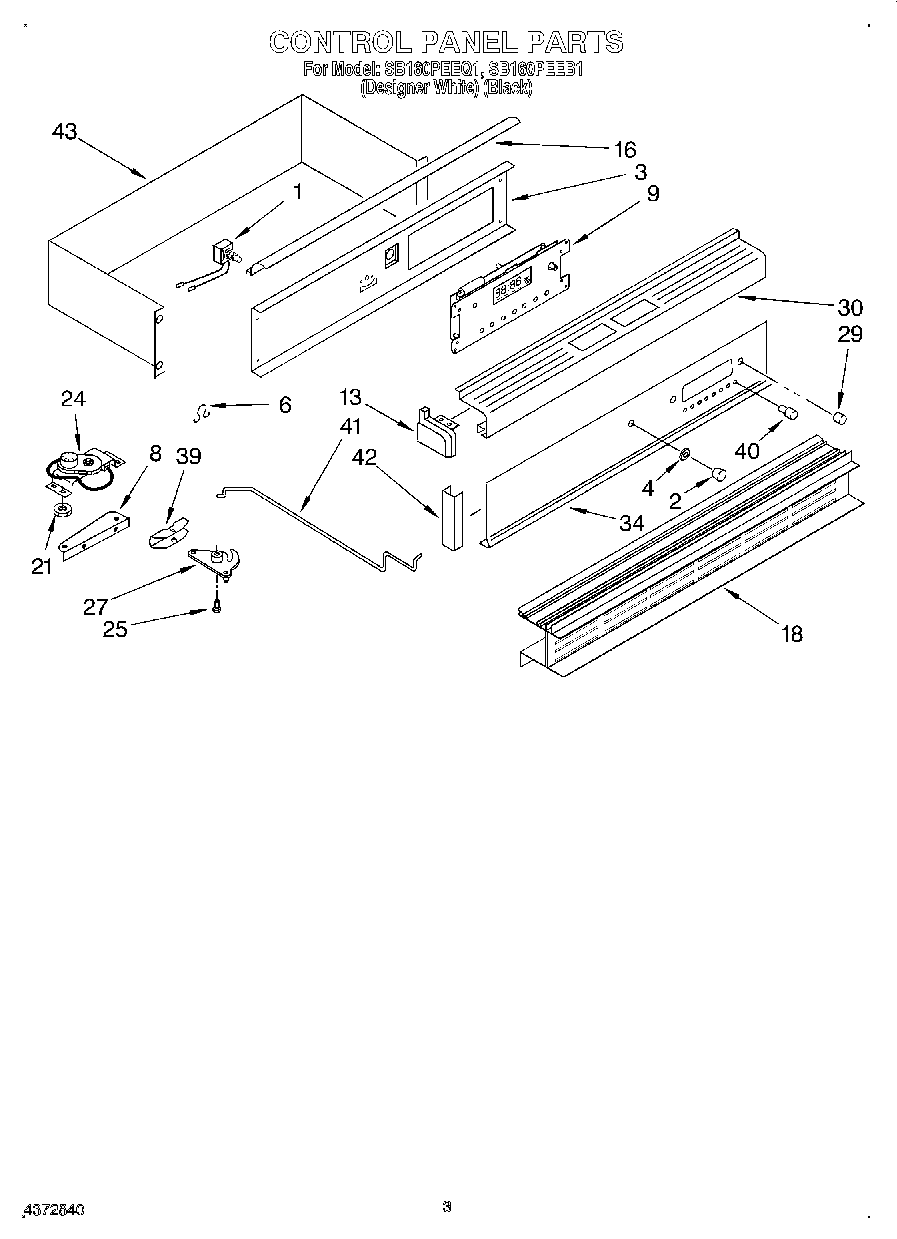

SB160PEEQ1 02 – CONTROL PANEL

Products

Position	Product
1	Switch, Oven Light
1	Switch, Oven Light (White)
2	Bezel, Switch (Black)
2	Bezel, Switch (White)
3	Plate, Instrument Mtg.
4	Nut, Decorative
6	Fastener, Wire
8	Base, Latch Motor
9	Clock/Oven Control
9	Screw, No.6x32x1/2
9	Nut, 6-32 (6)
13	Endcap (Right Hand)
13	End Cap White (Left Side Black)
13	Endcap (Left Hand)
13	End Cap (White (Right))
16	Deflector, Heat
16	Deflector, Heat (White)
16	Deflector, Heat (Screw, No.6x18x1/4 (3))
18	Trim, Center Vent (Black)
18	Trim, Center Vent (White)
21	W10080180 Whirlpool Nut
24	Screw, 10-24 x 3/8 (2)
24	Motor, Lock
25	Stud, Latch
27	Lever, Lock
29	Knob, Clock (White)
29	Knob, Clock (Black)
30	Trim, Top (Black)
30	Trim, Top (White)
30	Trim, Top (Screw)
34	Panel, Control (Black)
34	Panel, Control (White)
39	Housing, Latch
40	Button, Control (9) (Black)
40	Button, Control (9) (White)
41	Rod, Latch Support
42	Trim, Control Panel (2) (White)
42	Trim, Control Pnl.
43	Shield, Controls
43	Screw, 8-22 (5)
