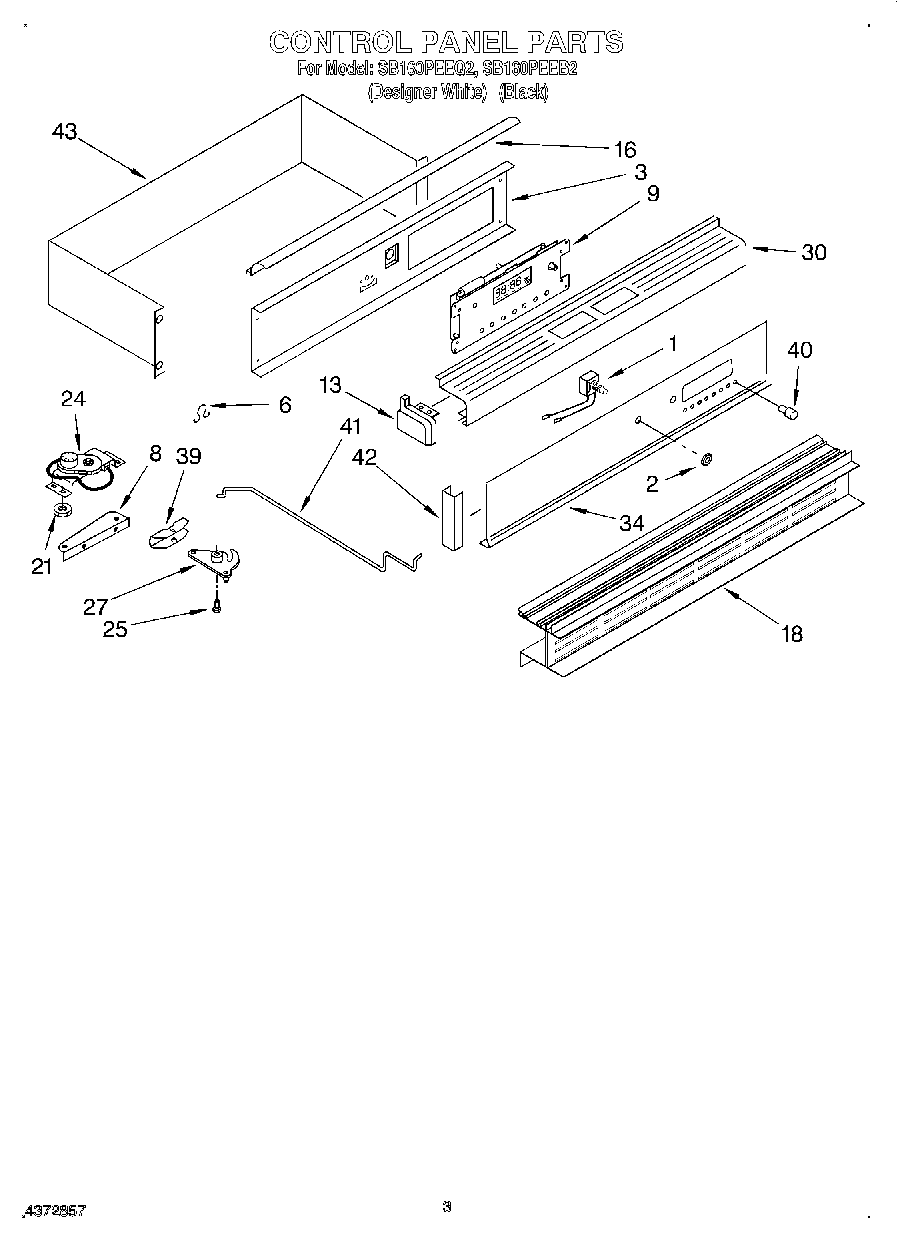

SB160PEEQ2 02 – CONTROL PANEL

Products

PositionProduct
1Switch, Oven Light
2Bezel, Switch
2Bezel, Switch (White)
3Plate, Instrument Mtg.
6Fastener, Wire
8Base, Latch Motor
9Clock/Oven Control
9Nut, 6-32 (6)
9Screw, No.6x32x1/2
13End Cap White (Left Side Black)
13Endcap (Left Hand)
13Endcap (Right Hand)
13End Cap (White (Right))
16Deflector, Heat (White)
16Deflector, Heat (Screw, No.6x18x1/4 (3))
16Deflector, Heat
18Trim, Center Vent (White)
18Trim, Center Vent (Black)
21W10080180 Whirlpool Nut
24Motor, Lock
24Screw, 10-24 x 3/8 (2)
25Stud, Latch
27Lever, Lock
30Trim, Top (Screw)
30Trim, Top (Black)
30Trim, Top (White)
34Panel, Control (Black)
34Panel, Control (White)
39Housing, Latch
40Button, Control (9) (Black)
40Button, Control (9) (White)
41Rod, Latch Support
42Trim, Control Panel (2) (White)
42Trim, Control Pnl.
43Shield, Controls
43Screw, 8-22 (5)
