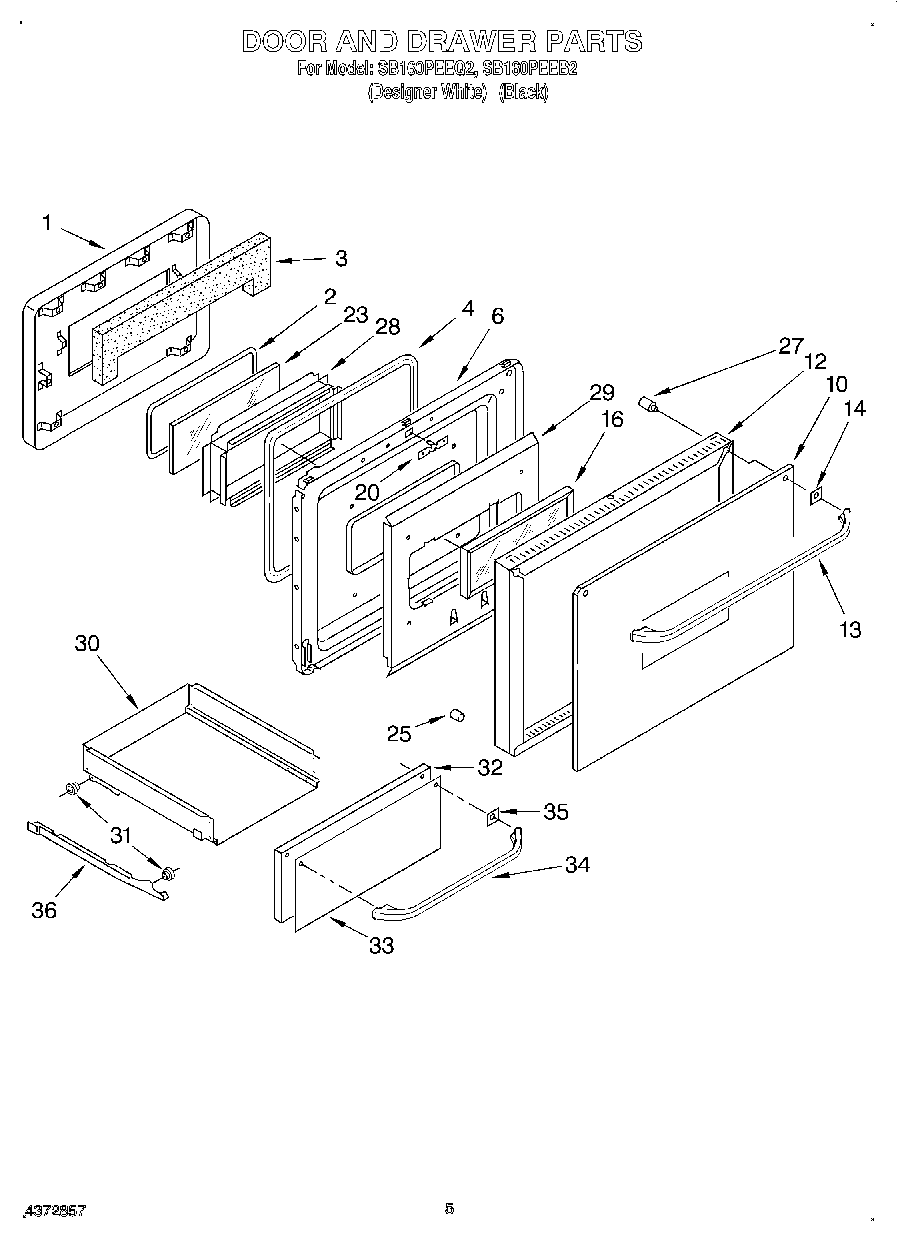

SB160PEEQ2 04 – DOOR AND DRAWER, LITERATURE

Products

Position	Product
	Tech Sheet
	Installation Instructions
	Guide, Use & Care
1	Baffle, Door
2	Seal, Window
3	Insulation, Door
4	Seal-Oven Door
6	Liner, Door
6	Screw, No.10x24x5/8
10	Glass, Outer Door
10	Glass, Outer Door (White)
12	Back Splash (Screw (4) 10AB x 1/2“)
12	Frame, Door
16	Glass, Inner
20	Strike
23	Glass, Inner Door
25	Button, Plug
27	Spacer, Handle
28	Collar, Glass
28	Screw, 10-24 x 3/8 (2)
29	Panel, Airwash
30	Drawer, Storage
30	Screw, No.8x18x3/8 (4)
31	Roller
32	Panel, Inner Door
33	Glass, Drawer
33	Panel, Glass (White)
34	Handle, Oven Door
34	Screw, Handle (4)
34	Handle, Door (White)
35	Spacer, Handle (White)
35	Spacer, Handle (Black)
36	Track, Drawer (Right Hand)
36	Track, Drawer (Left Hand)
36	WP308685 Whirlpool Microwave Screw
36	W10080180 Whirlpool Nut
