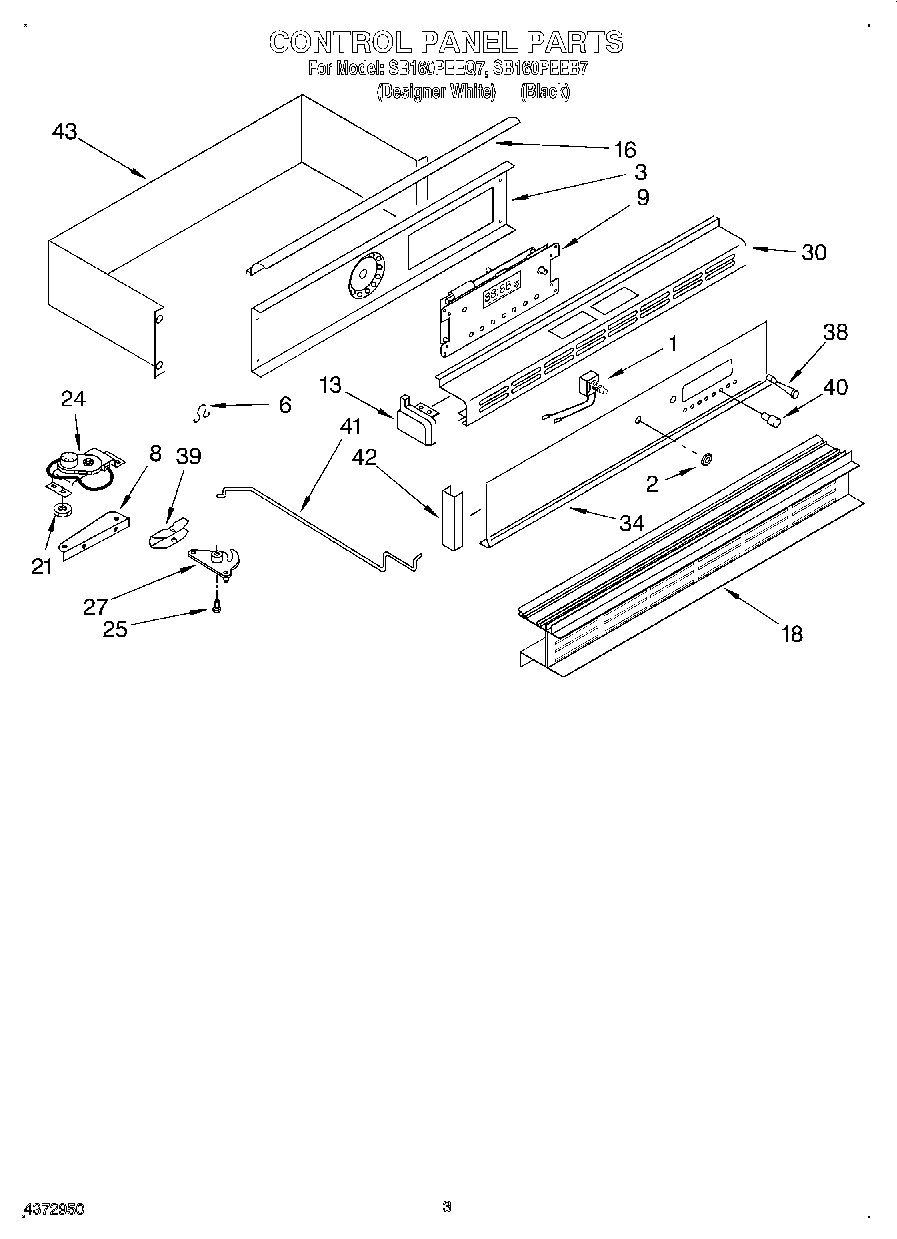

SB160PEEQ7 02 – CONTROL PANEL

Products

Position	Product
1	Switch, Oven Light
2	Bezel, Switch (White)
2	Bezel, Switch
3	Plate, Instrument Mtg.
6	Fastener, Wire
8	Base, Latch Motor
9	Screw, No.6x32x1/2
9	Clock/Oven Control
9	Nut, 6-32 (6)
13	Endcap (Right Hand)
13	End Cap White (Left Side Black)
13	End Cap (White (Right))
13	Endcap (Left Hand)
16	Deflector, Heat (White)
16	Deflector, Heat (Screw, No.6x18x1/4 (3))
16	Deflector, Heat
18	Trim, Center Vent (Black)
18	Trim, Center Vent (White)
21	W10080180 Whirlpool Nut
24	Motor, Lock
24	Screw, 10-24 x 3/8 (2)
25	Stud, Latch
27	Lever, Lock
30	Trim, Top (White)
30	Trim, Top (Black)
30	Trim, Top (Screw)
34	Panel, Control (White)
34	Panel, Control (Black)
38	Shaft, Button
39	Housing, Latch
40	Button, Control (9) (White)
40	Button, Control (9) (Black)
41	Rod, Latch Support
42	Trim, Control Pnl.
42	Trim, Control Panel (2) (White)
43	Shield, Controls
43	Screw, 8-22 (5)
