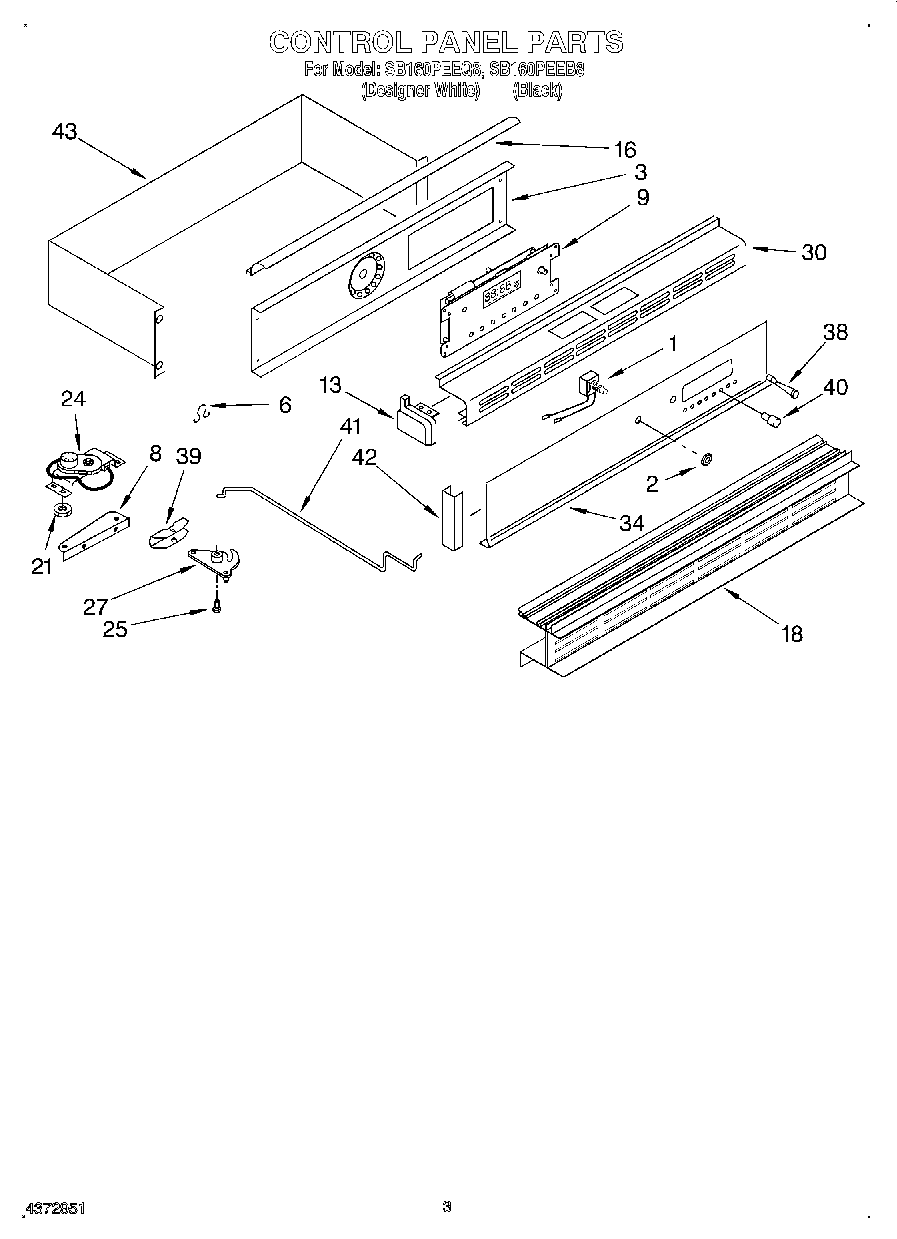

SB160PEEQ8 02 – CONTROL PANEL

Products

PositionProduct
1Switch, Oven Light
2Bezel, Switch (White)
2Bezel, Switch
3Plate, Instrument Mtg.
6Fastener, Wire
8Base, Latch Motor
9Screw, No.6x32x1/2
9Clock/Oven Control
9Nut, 6-32 (6)
13Endcap (Right Hand)
13End Cap White (Left Side Black)
13End Cap (White (Right))
13Endcap (Left Hand)
16Deflector, Heat (White)
16Deflector, Heat (Screw, No.6x18x1/4 (3))
16Deflector, Heat
18Trim, Center Vent (Black)
18Trim, Center Vent (White)
21W10080180 Whirlpool Nut
24Motor, Lock
24Screw, 10-24 x 3/8 (2)
25Stud, Latch
27Lever, Lock
30Trim, Top (White)
30Trim, Top (Black)
30Trim, Top (Screw)
34Panel, Control (White)
34Panel, Control (Black)
38Shaft, Button
39Housing, Latch
40Button, Control (9) (White)
40Button, Control (9) (Black)
41Rod, Latch Support
42Trim, Control Pnl.
42Trim, Control Panel (2) (White)
43Shield, Controls
43Screw, 8-22 (5)
