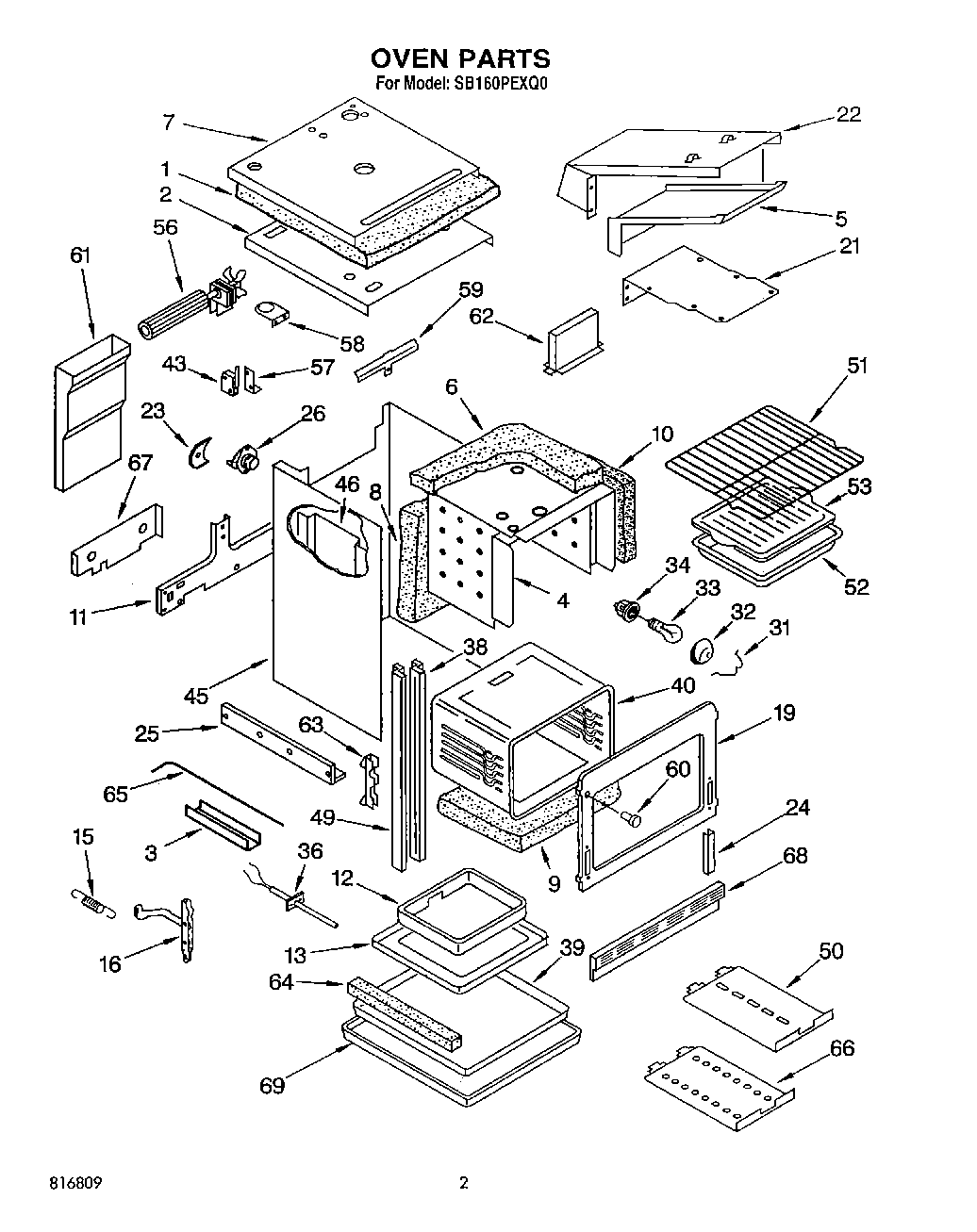

SB160PEXQ0 02 – OVEN

Products

Position	Product
1	Insulation, Top
2	Retainer-Oven Top
3	Shield, Switch Rod
4	Shield, Top And Sides
5	Flue
6	Insulation
7	Shield, Oven Top
7	Screw, 8-22 (5)
8	Insulation, Back
9	Insulation, Bottom
10	Insulation, Top & Sides
11	Bracket, Safety Valve
12	Box, Burner
12	WP308685 Whirlpool Microwave Screw
13	Bottom, Oven
15	Spring, Door (2)
16	Hinge, Door (2)
19	Frame, Front
21	Shield, Flue Bottom
22	WP488729 Whirlpool Refrigerator Door Screw
22	Shield, Flue Top
23	Spring, Support
24	Support, Front (2)
25	Trim, Top (Screw, No.6x32x1/2 (6))
25	Support, Height Adjustment (2)
26	Switch, Thermo
31	Retainer, Lens
32	Lens, Oven Light
33	RANGE ONLY 40W 120V APPL BULB
34	W10856866 Whirlpool Light Socket
36	Sensor
38	Trim, Inner (Left Hand)
38	Trim, Inner (Right Hand)
39	Shield, Base
40	Liner, Oven
43	Switch, Oven Light
43	Screw, 4-40 x 10 (2)
45	Wrapper, Back And Sides
46	Shield, Body Sides
49	Trim, Outer Side (White)
49	Trim, Outer
50	Shield, Lower Oven
51	Rack, Oven
52	Pan, Broiler
53	Grid, Broiler Pan
56	Blower
57	Bracket, Switch Mounting
58	Bracket, Thermostat
59	Igniter (Broil)
60	Bumper, Front (4)
61	Duct, Blower Motor
62	Adaptor, Flue
63	Channel, Hinge
64	Insulation, Bottom (Sides (2))
64	WPL 816863
65	WPL 816879
66	WPL 816880
67	WPL 816884
67	Screw, 10-24 x 3/8 (2)
68	WPL 816410
68	WPL 816921
68	WPL 816901
69	WPL 816387
69	WPL 816865
69	WPL 816908
69	Shield, Insulation (Base)
69	WPL 816869
