SB160PEXQ0 03 – CONTROL PANEL

SB160PEXQ0 03 – CONTROL PANEL

Written by

in

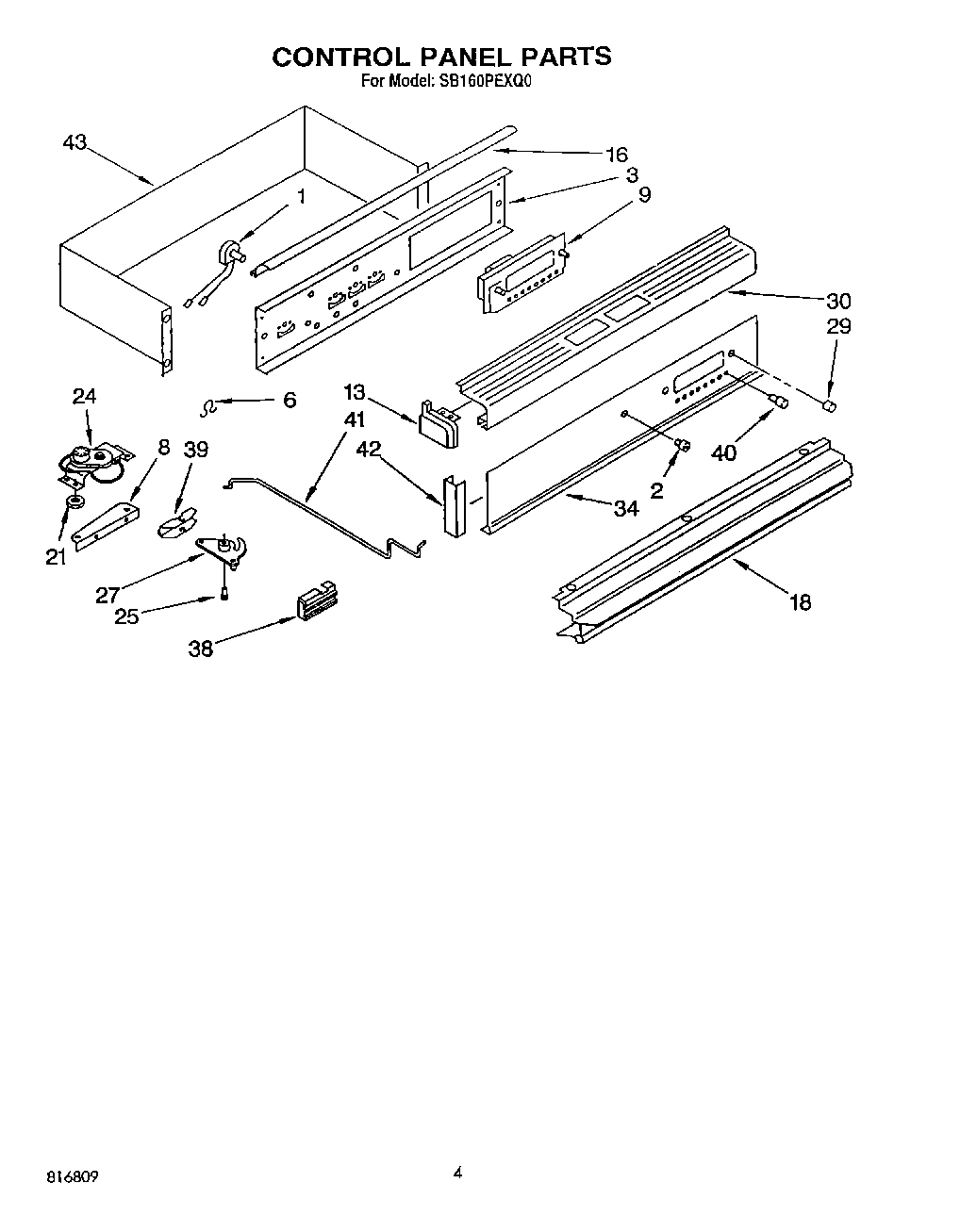

SB160PEXQ0 03 – CONTROL PANEL

Products

Position	Product
1	Switch, Oven Light
2	Bezel, Switch (Black)
2	Bezel, Switch (White)
3	Plate, Instrument Mtg.
6	Fastener, Wire
8	Base, Latch Motor
9	Clock/Oven Control
9	Screw, No.6x32x1/2
9	Nut, 6-32 (6)
13	End Cap White (Right Side)
13	Endcap (Left Hand)
13	Endcap (Right Hand)
13	End Cap (White LH)
16	Deflector, Heat (Screw, No.6x18x1/4 (3))
16	Deflector, Heat (Black)
16	Deflector, Heat (White)
18	Trim, Center Vent (White)
18	Trim, Center Vent (Black)
21	W10080180 Whirlpool Nut
24	Screw, 10-24 x 3/8 (2)
24	Motor, Lock
25	Stud, Latch
27	Lever, Lock
29	Knob, Clock (White)
29	Knob, Oven Control
30	Trim, Top (White)
30	Trim, Top (Screw, No.6x32x1/2 (6))
30	Trim, Top (Black)
34	White
34	Panel, Control (Black)
38	Cover, Latch
39	Base, Latch Motor
40	Button, Control, (8)
40	Knob, Controls (9) (White)
41	Rod, Latch Support
42	Trim, Control Panel (2) (White)
42	Trim, Control Panel (2) (Black)
43	Screw, 8-22 (5)
43	Shield, Controls
