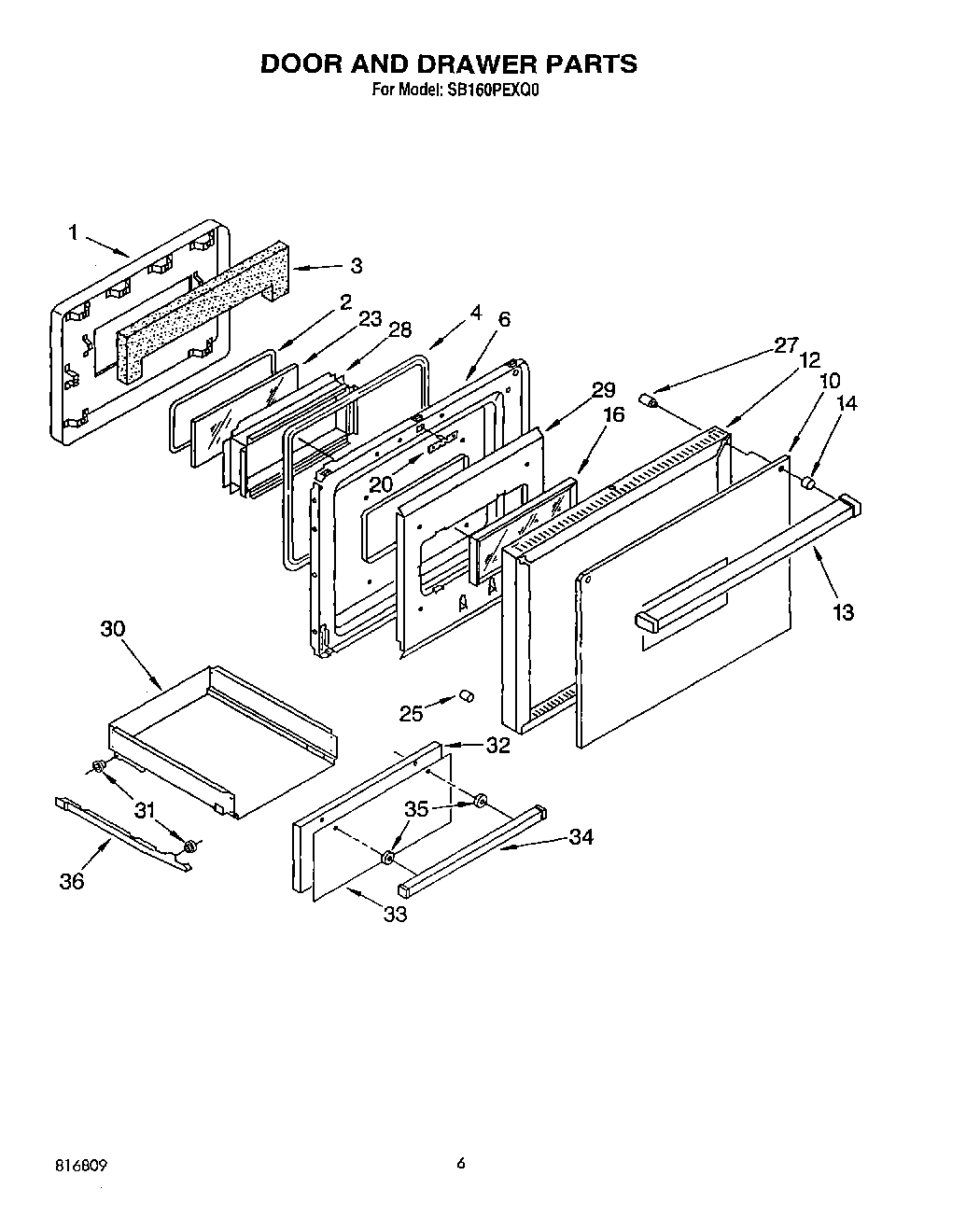

SB160PEXQ0 05 – DOOR AND DRAWER, LIT/OPTOINAL

Products

Position	Product
	Guide, Use And Care
	Repair Parts List
	Wiring Diagram
	Installation Instructions
1	Baffle, Door
2	Seal, Window
3	Insulation, Door
4	Seal-Oven Door
6	Liner, Door
10	Glass, Outer Door (Black)
10	Glass, Outer Door (White)
12	Frame, Door
12	Back Splash (Screw (4) 10AB x 1/2“)
13	Handle, Door (Screw, No.10x24x21/4 (2))
14	Spacer, Handle
16	Glass, Inner
20	Strike
23	Glass, Inner Door
25	Spacer, Glass
25	Button, Plug
28	Collar, Glass
28	Screw, 10-24 x 3/8 (2)
29	Panel, Airwash
30	Drawer, Storage
30	Screw, No.8x18x3/8 (4)
31	Roller
32	Panel, Inner Door
33	Panel, Glass (White)
33	Glass, Drawer
34	Handle, Drawer (White)
34	Handle, Drawer (Black)
34	Screw, No.10x24x5/8
35	Spacer, Handle (Black)
36	WP308685 Whirlpool Microwave Screw
36	Track, Drawer (Right Hand)
36	Track, Drawer (Left Hand)
36	W10080180 Whirlpool Nut
