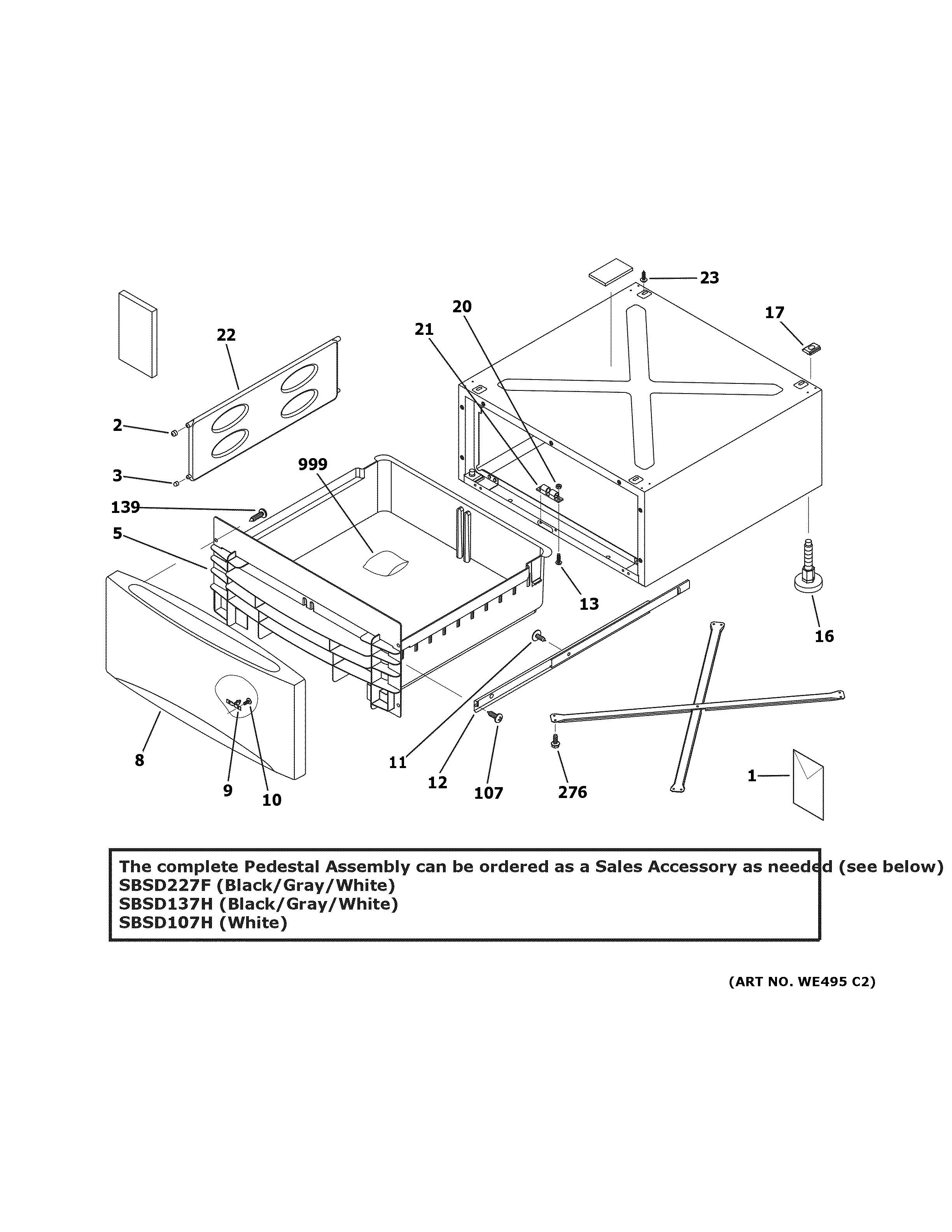

SBSD137H1GG PEDESTAL

Products

Position	Product
1	PM INSTALL INSTRUCTIONS
2	CAP RUBBER LARGE
3	CAP RUBBER SMALL
5	DRAWER PEDESTAL
8	PANEL FRONT GG
9	WH01X10285 GE Plunger Pedestal
10	WH02X10223 GE Screw St4 10
11	WH02X10224 GE Screw St 3.5 11
12	SLIDE ASSEMBLY
13	WH02X10225 GE Screw M3 10
16	PEDESTAL LEG ASM
17	WH08X10061 GE Rubber Pad Assembly for HA
20	WH01X10287 GE Hex Nut M3
21	WH01X22934 GE Latch
22	WH16X10120 GE Pedestal Divider
23	WH02X10232 GE Screw ST5.5
107	WH02X10183 GE Screw ST4 13
139	GEN WH02X10186
276	GEN WH02X10203
999	WH02X10344 GE Hardware Bag Assembly
