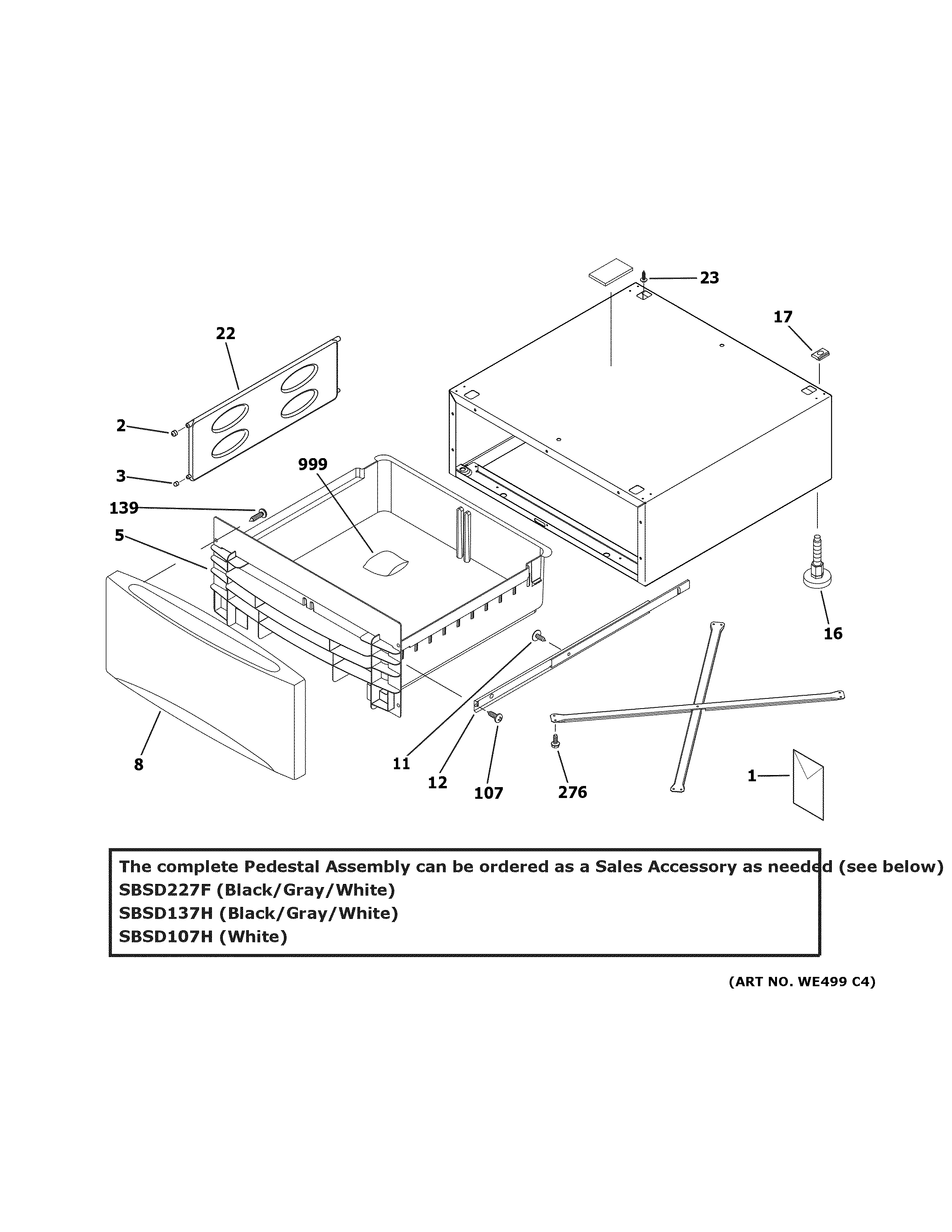

SBSD137J0MV PEDESTAL

Written by

Products

Position	Product
1	PM INSTALL INSTRUCTIONS
2	CAP RUBBER LARGE
3	CAP RUBBER SMALL
5	WH44X10188 GE Drawer Pedestal
8	PANEL FRONT PEDESTAL MV
11	WH01X10423 GE Screw 6-20 B TRT 3/8 S
12	WH16X10099 GE Washer Drawer Slide Rail
16	GEN WH01X10352
17	WH08X10061 GE Rubber Pad Assembly for HA
22	WH16X10120 GE Pedestal Divider
23	WH02X10232 GE Screw ST5.5
107	SCREW 8-15 A 3/4 SP HXW
139	WR01X10196 GE Refrigerator Screw 8-18 HID02
276	WH2X1217 GE Screw Assembly
999	WH02X10344 GE Hardware Bag Assembly
