SC550DXW6 05 – INNER TUB – Aparts

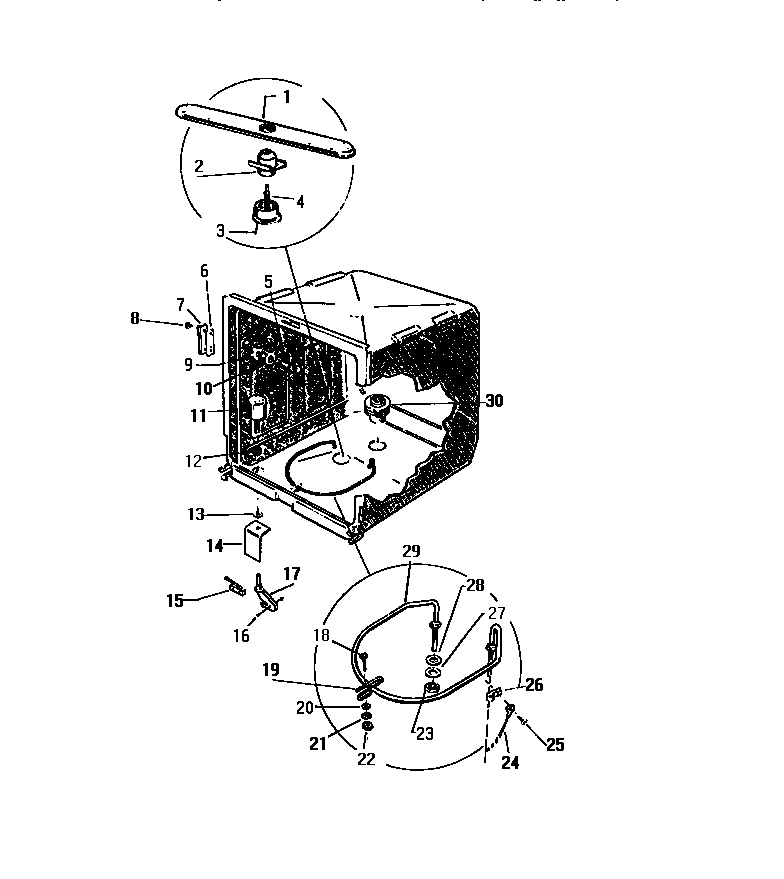

SC550DXW6 05 – INNER TUB

Products

Position	Product
1	WCI S414501
2	WCI S414702
3	SUPPORT LESS SPRING
4	WCI S255703
5	WCI S5401
6	WCI S5001
7	WCI S119301
9	WCI S4203
10	WCI S116201
11	WCI S415202
12	WCI S125401
13	WCI 848A024H01
14	WCI S105001
15	WCI 2646D25H03
16	SCREW (WITH NUT)
17	WCI 2646D68H03
18	WCI C503184
19	WCI 848A040H01
20	WCI C505384
21	WCI C411605
22	WCI C501879
23	NUT (2 REQ.)
24	WCI 2645D77A15
25	SCREW
26	WCI C507337
27	WCI C411208
28	GASKET, INSIDE TUB (2)
29	HEATER (WITH GASKETS)
30	WCI S268601
