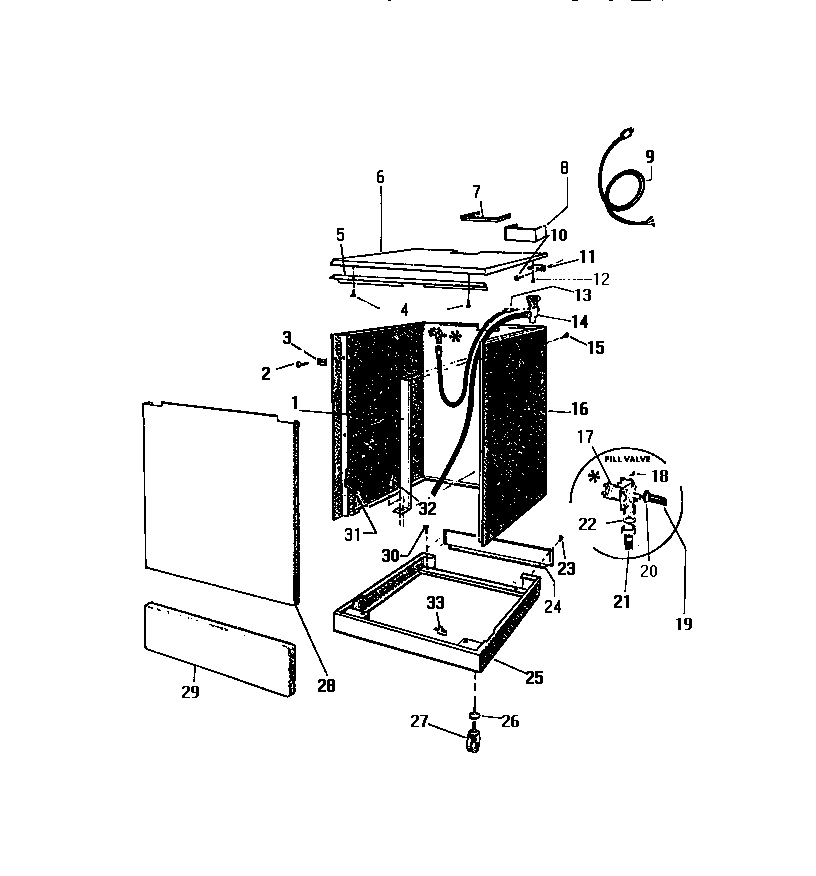

SC550DXW6 08 – WRAPPER, TOP, VALVE & BASE

SC550DXW6 08 – WRAPPER, TOP, VALVE & BASE

Written by

in

SC550DXW6 08 – WRAPPER, TOP, VALVE & BASE

Products

Position	Product
1	WCI 2647D45A02
2	WCI C000502510
3	SHIELD
5	WCI 2647D28H01
6	WCI S441303
7	WCI S419801
8	WCI 2647D21H02
9	WCI 194C665H04
10	SCREW (2 REQ)
11	BRACKET (2 REQ)
12	WCI C402702
14	WCI C95824
16	WCI 761J017H31
16	WCI 761J017H34
16	WCI 761J017H33
16	WCI 761J017H32
16	WCI 761J017H30
17	FILL VALVE (WITH SOLENOID)
18	WCI C505651
19	WCI 689B519H04
20	CLAMP-BLOWER WHEEL
21	FILL HOSE
22	WCI Q19801
23	SCREW (2)
24	WCI 2647D25H03
25	WCI 2647D23A07
26	BARRELL (4 REQ)
27	CASTER (4 REQ)
28	WCI S428009
28	WCI S428010
28	WCI S428012
28	WCI S428013
28	WCI S412011
29	WCI S423806
29	WCI S423805
29	WCI S423807
29	PANEL-SERVICE WHITE
29	WCI S423808
30	WCI C408702
31	WCI C502504
32	WCI C505495
33	CLIP (HARNESS TO TUB)
