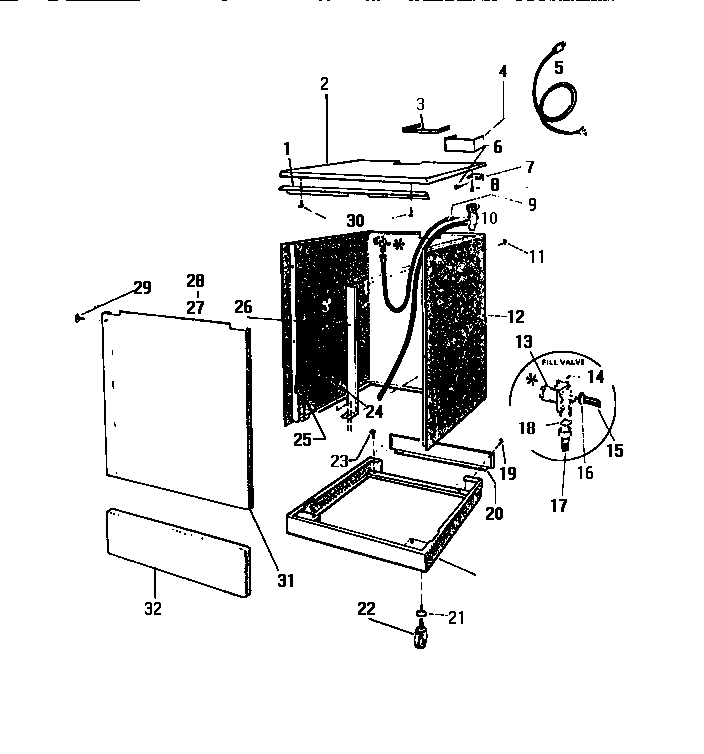

SC560JXD2 08 – WRAPPER, TOP, VALVE, & BASE
Products
| Position | Product |
|---|---|
| *90931 | WCI S12218 |
| *90938 | WCI S900200 |
| *90933 | WCI DEPD-1 |
| *90930 | WCI S16701 |
| *90932 | WCI S900199 |
| *90929 | WCI S132201 |
| *90927 | WCI S132301 |
| *90928 | WCI S279101 |
| 1 | WCI 2647D28H01 |
| 2 | WCI S441303 |
| 3 | WCI S419802 |
| 4 | WCI S460201 |
| 5 | WCI 194C665H04 |
| 6 | SCREW (2 REQ) |
| 7 | BRACKET (2 REQ) |
| 10 | WCI S279302 |
| 12 | WCI S703604 |
| 13 | WCI 2646D57H08 |
| 14 | WCI C505651 |
| 15 | WCI S131602 |
| 16 | CLAMP (2) |
| 17 | FILL HOSE |
| 18 | WCI Q19801 |
| 19 | SCREW (2) |
| 20 | WCI 2647D25H03 |
| 21 | BARRELL (4 REQ) |
| 22 | CASTER (4 REQ) |
| 23 | WCI S13801 |
| 24 | WCI C505495 |
| 25 | WCI S12801 |
| 26 | WCI S467302 |
| 27 | WCI S13701 |
| 28 | WCI S277601 |
| 29 | WCI S16001 |
| 30 | WCI C402702 |
| 31 | WCI S443103 |
| 32 | WCI S462703 |
