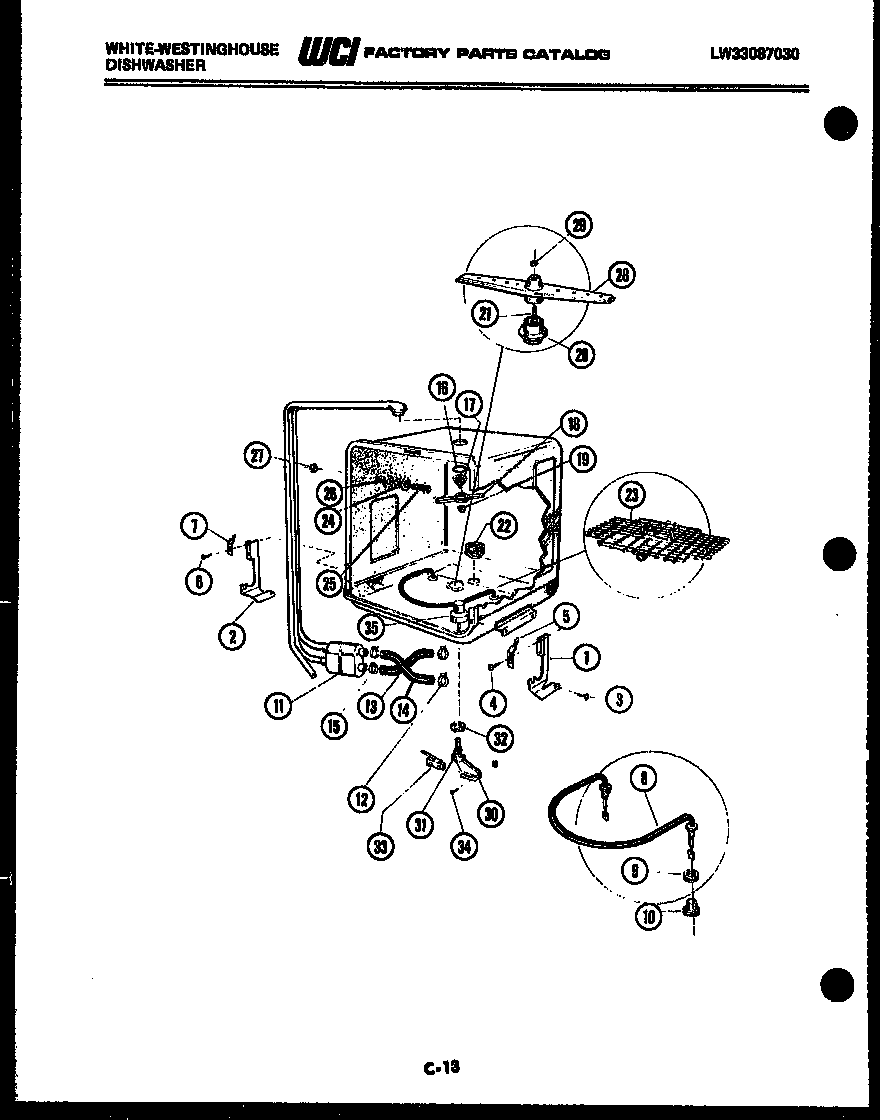

SC560JXH3 05 – INNER TUB PARTS

SC560JXH3 05 – INNER TUB PARTS

Written by

in

SC560JXH3 05 – INNER TUB PARTS

Products

PositionProduct
1WCI S442403
2WCI S442404
3WCI C403401
6WCI S9501
7WCI S130601
8HEATER WITH GASKET AND NUT
9WCI S7101
10WCI S7201
11WCI S457903
12ACLAMP,HOSE TO PUMP, BOTTOM
12WCI 2646D60H04
13WCI S274201
14WCI S128301
15CLAMP, HOSE TO FILTER, TOP
15ACLAMP, HOSE TO FILTER, BOTTOM
16WCI S12401
17WCI S273401
18WCI S456201
19WCI S128201
20WCI S900203
21SPRING, WASH ARM
22WCI S272801
23WCI S465801
24WCI S116201
25WCI S5401
26WCI S4203
27WCI S10201
28WCI S461002
29WCI S17101
30WCI S451601
31WCI S11301
32WCI S125401
33WCI S124101
34WCI C413103
35WCI S457701
