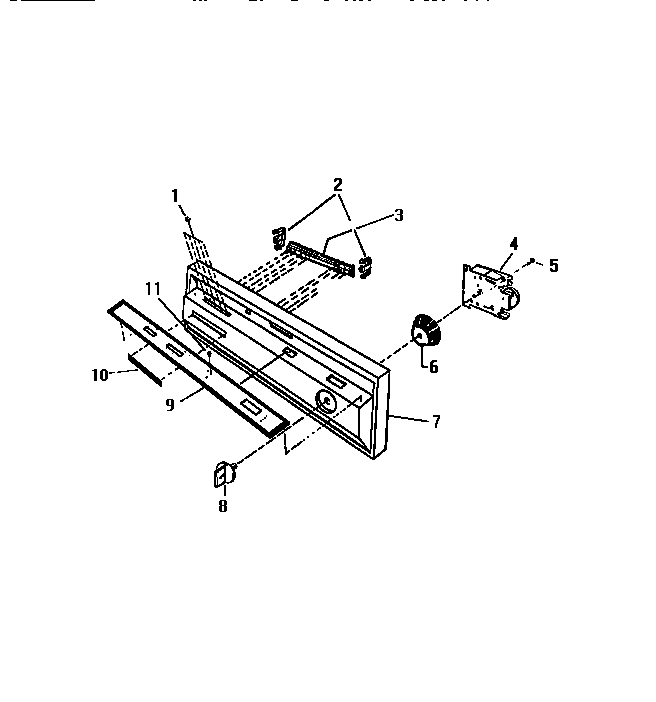

SC560JXW1 02 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| *90921 | WIRE HARNESS, DOOR |
| *90920 | WCI S131401 |
| 1 | PUSHBUTTON (7) |
| 2 | WCI S273101 |
| 3 | WCI S434201 |
| 4 | WCI S460401 |
| 5 | WCI S12801 |
| 6 | DRUM, INDICATOR |
| 7 | PANEL, CONTROL |
| 8 | WCI S273804 |
| 9 | INSERT, PANEL |
| 10 | WCI S277201 |
| 11 | LENS |
