SC560JXW2 07 – PUMP ASSEMBLY PARTS – Aparts

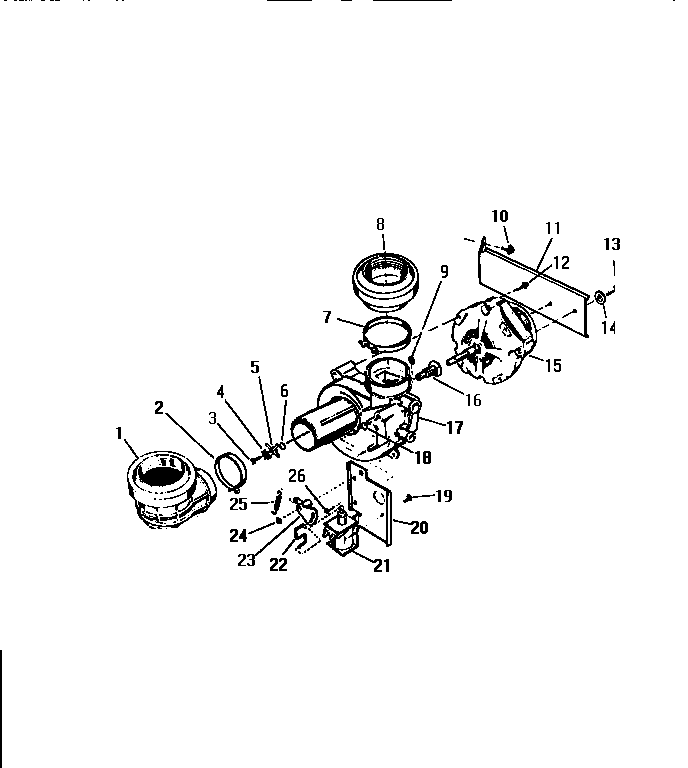

SC560JXW2 07 – PUMP ASSEMBLY PARTS

Products

Position	Product
1	WCI S453301
2	WCI 2646D60H35
3	WCI S7401
4	WCI S7601
5	WCI S122902
6	WCI S7501
7	WCI 2646D60H34
8	BOOT WITH NUT
9	WCI S8001
11	WCI S449201
13	SCREW (4)
14	GROMMET
15	WCI S447301
16	WCI S123201
17	WCI S800602
18	WCI S104701
19	WCI S12501
20	WCI S271001
21	WCI S271701
22	WCI S10301
23	WCI S271101
24	WCI S8101
25	WCI S124301
26	WCI S12801
