SC750DXR6 03 – CONTROL PANEL
Written by
in

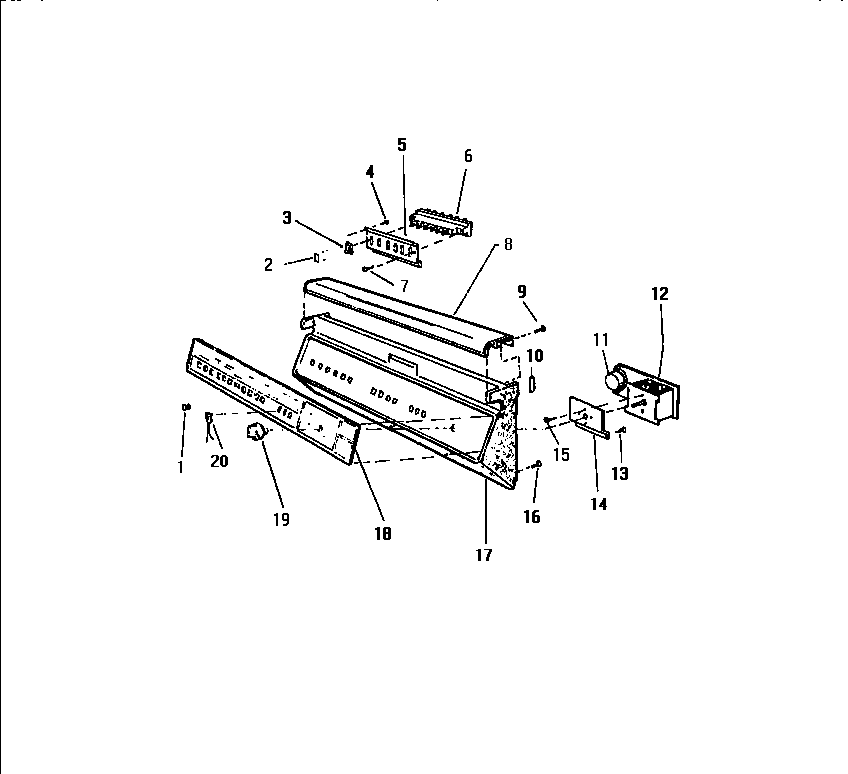

SC750DXR6 03 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| *01935 | TOUCH-UP PAINT, 1 OUNCE, COFFEE |
| *01920 | WCI S452401 |
| *01921 | WCI S453901 |
| *01928 | WCI C98784 |
| *01929 | WCI C98543 |
| *01930 | WCI C98544 |
| *01931 | WCI C98063 |
| *01927 | CLIP (HARNESS TO TUB) |
| *01922 | WCI S263902 |
| *01923 | WCI 2645D77A15 |
| *01924 | WCI S900134 |
| *01925 | WCI S123702 |
| *01926 | WCI C507845 |
| *01933 | TOUCH-UP PAINT, 1 OUNCE, ALMOND |
| *01936 | WCI Q171157 |
| *01932 | WCI Q49587 |
| *01934 | TOUCH UP PAINT, 1 OZ., AVOCADO |
| 1 | WCI S4601 |
| 2 | WCI S419705 |
| 3 | BUTTON (AS REQUIRED) |
| 5 | PLATE (6“ WIDE) |
| 6 | WCI S434302 |
| 7 | SCREW (AS REQUIRED) |
| 8 | WCI S427106 |
| 9 | WCI S403401 |
| 10 | WCI S265501 |
| 11 | MOTOR (REGULAR) |
| 12 | WCI S453601 |
| 13 | SCREW (AS REQUIRED) |
| 14 | WCI S117701 |
| 15 | SCREW (2) |
| 16 | SCREW (AS REQUIRED) |
| 17 | WCI S900188 |
| 18 | WCI S446902 |
| 19 | WCI S252002 |
| 20 | WCI S267501 |
