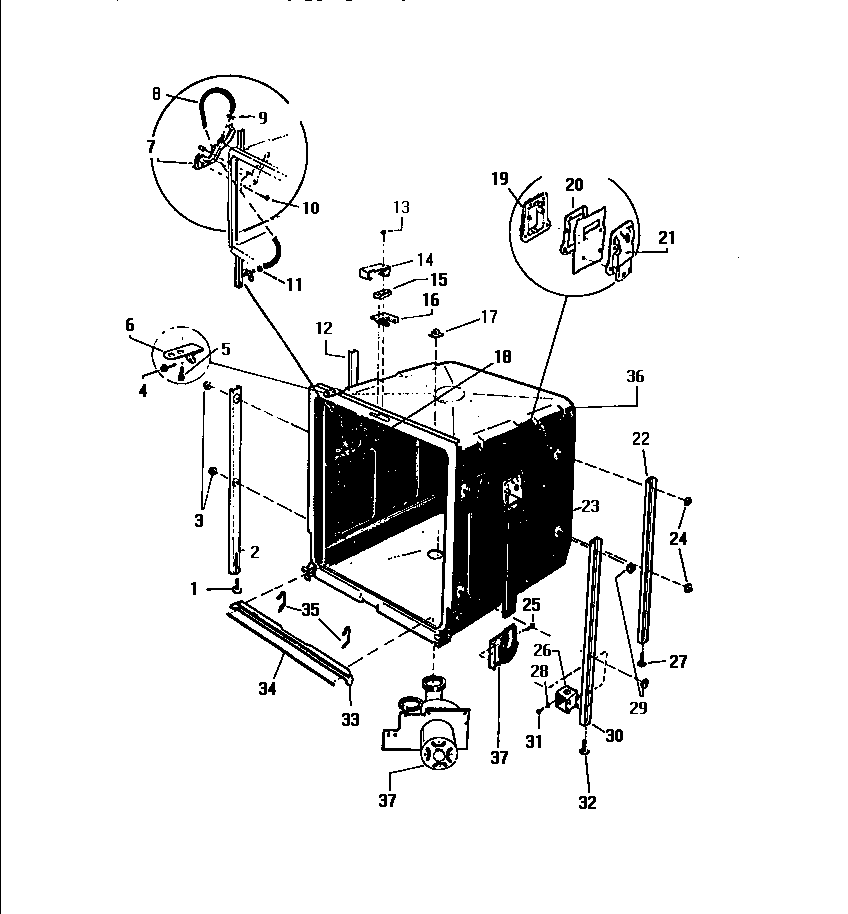

SC750DXR6 04 – OUTER TUB

Products

Position	Product
4	WCI C505617
5	WCI C418701
6	WCI 689B594H01
7	INLET (WITH GASKET)
8	WCI 689B519H04
10	216858001 Frigidaire Refrigerator Screw
11	CLAMP-BLOWER WHEEL
13	WCI S3502
14	WCI S125101
15	WCI S125001
16	WCI S272502
17	WCI 194C559H16
18	SCREW
19	WCI 2647D99H03
20	WCI 194C623H02
21	WCI 2647D89H01
22	LEG
23	WCI S105202
25	SCREW (2)
26	WCI 194C608H02
28	WCI Q500411
29	WCI C507845
30	WCI 2646D67H05
31	WCI C505964
32	SCREW, LEVELING (FRONT & REAR)
33	WCI S401801
34	WCI C505132
35	WCI S601
