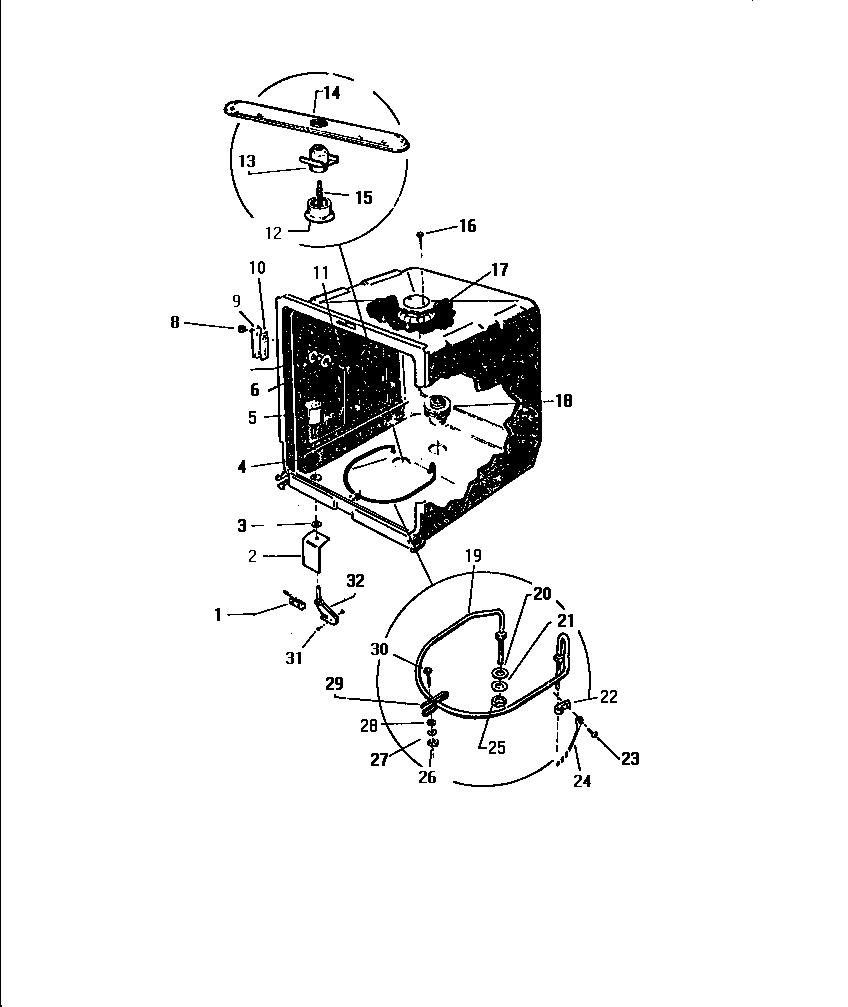

SC750DXR6 05 – INNER TUB

SC750DXR6 05 – INNER TUB

Written by

in

SC750DXR6 05 – INNER TUB

Products

Position	Product
1	WCI 2646D25H03
2	WCI S105001
3	WCI 848A024H01
4	WCI S117901
5	WCI S415202
6	WCI S116201
7	WCI S4203
9	WCI S119301
10	WCI S5001
11	WCI S4101
12	SUPPORT LESS SPRING
13	WCI S414702
14	WCI S414601
15	WCI S255703
16	WCI C505620
17	DEFLECTOR (SC750D ONLY)
18	WCI S268601
19	HEATER (WITH GASKETS)
20	GASKET, INSIDE TUB (2)
21	WCI C411208
22	WCI C507337
23	SCREW
24	WCI 2645D77A15
25	NUT (2 REQ.)
26	WCI C501879
27	WCI C411605
28	WCI C505384
29	WCI 848A040H01
30	WCI C503184
31	SCREW (WITH NUT)
32	WCI 2646D68H03
