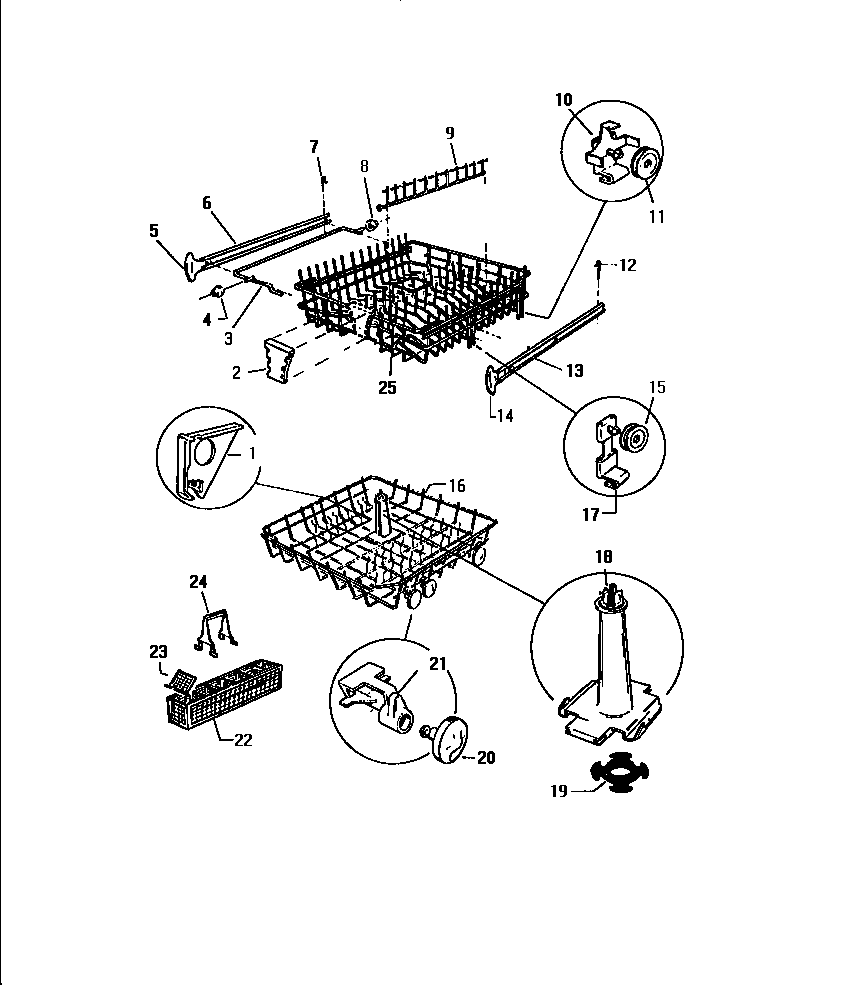

SC750DXR6 06 – RACKS & WASH TOWER

SC750DXR6 06 – RACKS & WASH TOWER

Written by

in

SC750DXR6 06 – RACKS & WASH TOWER

Products

PositionProduct
1WCI S404402
2WCI 2647D86H04
3WIRE ADJUST. (2)
5WCI S1129945
6SLIDE, LEFT SIDE (WITH ENDCAP)
8WCI 194C681H01
9WCI S266301
10WCI S266501
12WCI S118201
13SLIDE, RIGHT SIDE (WITH ENDCAP)
14WCI S1129944
15WCI S1129946
16RACK BOTTOM, LESS WHEELS
17WCI S266101
18TOWER ASSEMBLY (WITH GASKET)
19WCI 194C658H02
20WHEEL (8)
21SUPPORT (8)
22WCI S403503
23WCI 2645D39H05
24WCI 194C580H02
25WCI S702404
